Assembly and disassembly
5.5 DIN rail mounting
SCALANCE WxM766
46 Operating Instructions, 03/2022, C79000-G8976-C617-03
Mounting

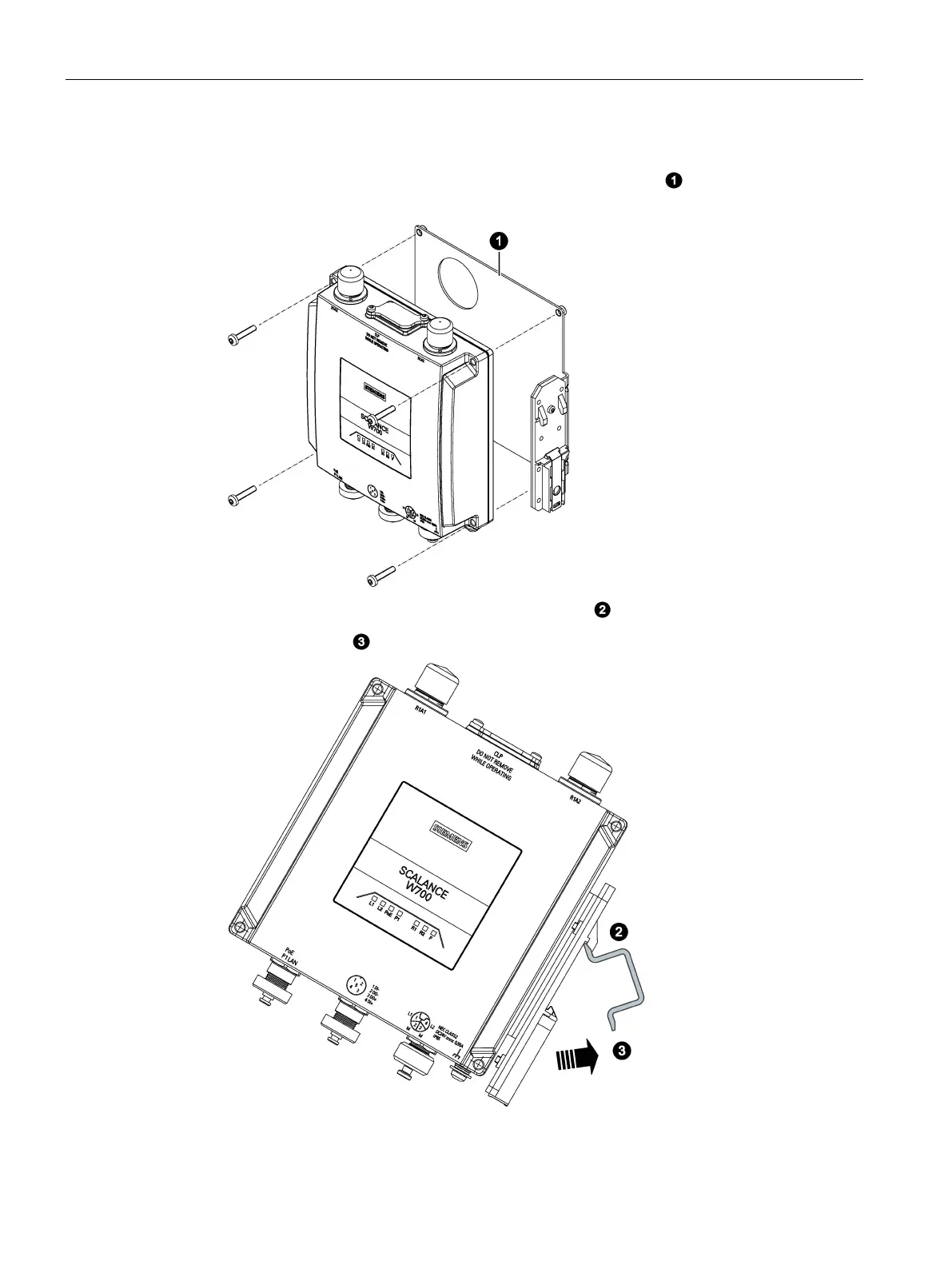

1. Screw (M4 x 20, tightening torque 1.8 Nm) the angle bracket onto the rear of the
device.
2. Place the device on the upper edge of the DIN rail
.
3. Press the device
against the DIN rail until the DIN rail slider catch locks into place.
