If changes are made to the configuration, the device stores the configuration directly on the C-
PLUG, if this is in the "ACCEPTED" status and in internal memory.
Response to errors
Inserting a C-PLUG that does not contain the configuration of a compatible device type and
inadvertently removing the C-PLUG, or general malfunctions of the C-PLUG are indicated by
the diagnostic mechanisms of the device.
● Fault LED
● Web Based Management (WBM)
● SNMP
● Command Line Interface (CLI)
● PROFINET diagnostics
The user then has the choice of either removing the C-PLUG again or selecting the option to
reformat the C-PLUG.
3.5.2 Replacing the C-PLUG

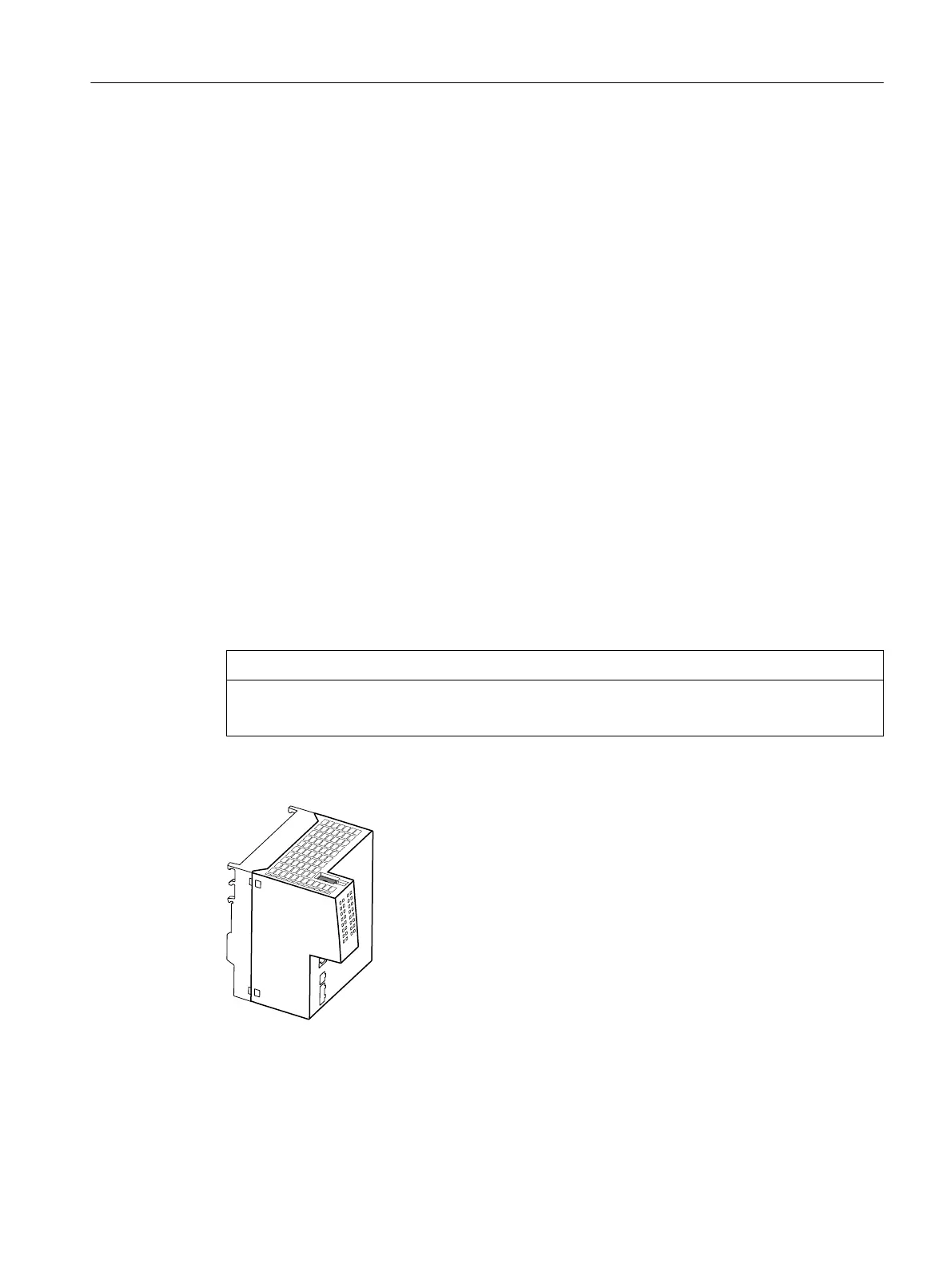

Position of the C-PLUG
NOTICE
Do not remove or insert a C-PLUG during operation
The C-PLUG may only be removed or inserted when the device is turned off.
The C-PLUG slot is on the top of the device housing.
Description of the device
3.5 C-PLUG
SCALANCE XC-200
Operating Instructions, 12/2017, C79000-G8976-C442-03 35
