4.2.2 SCALANCE XR326-8 100 ... 240VAC / 110 ... 250VDC

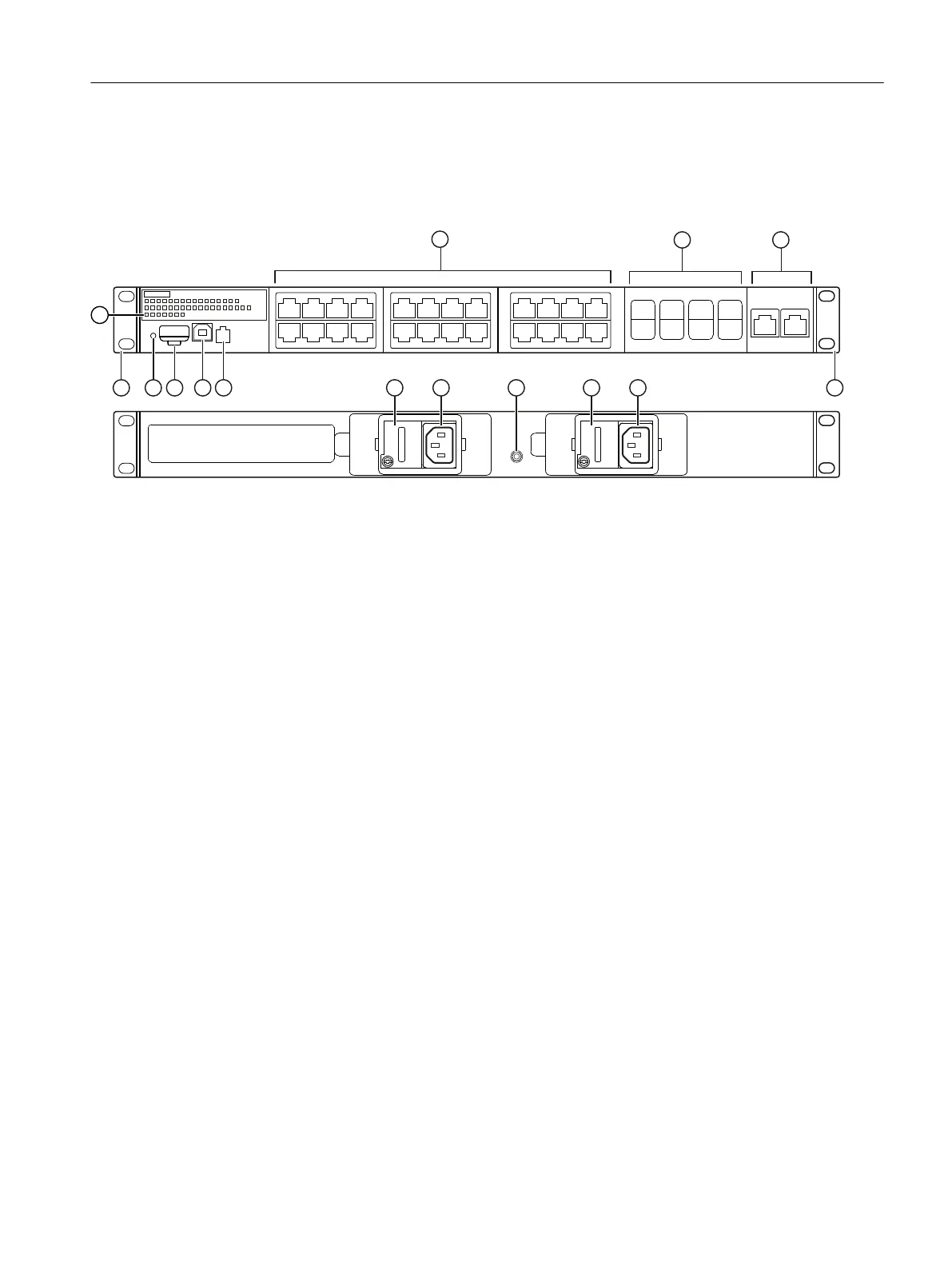

The following 󹪝gure shows an overview of the components of a 100 to 240 VAC / 110 to 250 VDC
device version of the SCALANCEXR326-8.





① Electrical ports with 10/100/1000Mbps
② Slots for SFP/SFP+ plug-in transceiver with 1/10 Gbps
③ Electrical ports with 1/2.5/5/10 Gbps
④ Mounting brackets for 19" rack installation
⑤ Connection to the 100 to 240VAC power supply
Single or redundant design depending on the device version. The 󹪝gure shows the device with a redundant connec‐
tion.
⑥ Connection to the 110 to 250VDC power supply (hidden behind a screw-retained cover)
Single or redundant design depending on the device version. The 󹪝gure shows the device with a redundant connec‐
tion.
⑦ Grounding bolt for connection of protective grounding
⑧ Signaling contact
⑨ USB console interface (2.0 port, Type B, serial via USB)
⑩ CLP slot with an inserted CLP
⑪ "SELECT/SET" button
⑫ LED display
• Port LEDs
• "F" LED for the fault display
• "L1/L2" LED for the power supply
• "RM" LED for the redundancy manager function
• "SB" LED for the status of the standby function
• "DM1/DM2" LED for the display mode
Figure4-2 SCALANCE XR326-8 100 ... 240VAC / 110 ... 250VDC, front and rear
Description of the device
4.2Device views
SCALANCE XR-300
Operating Instructions, 03/2023, C79000-G8976-C586-02 27
