Application and properties
1.7 Requirements for use
CP 1243-1
18 Operating Instructions, 12/2016, C79000-G8976-C365-02
Telecontrol with a redundant master station (TCSB)

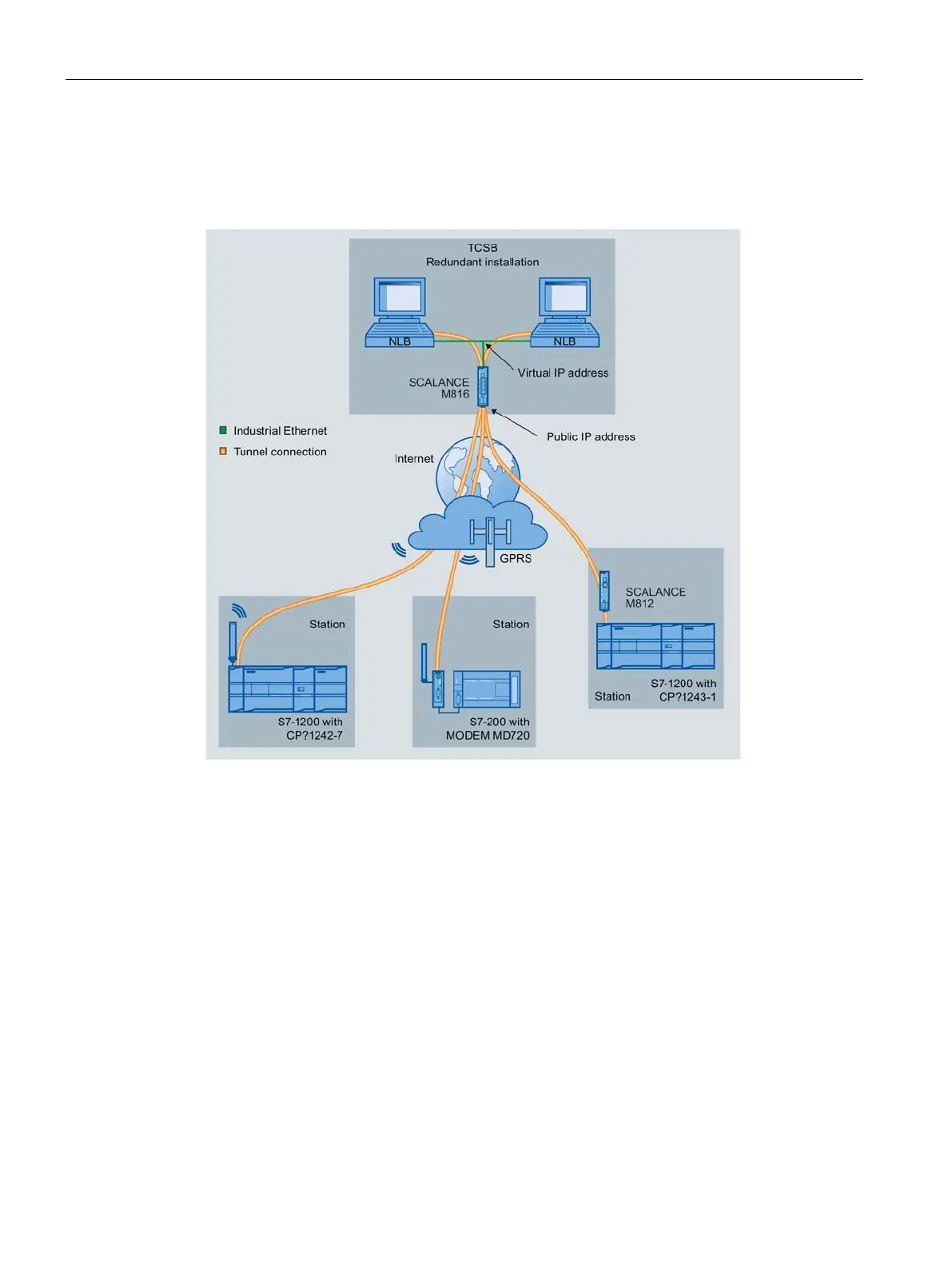

The following figure shows a possible configuration with S7 stations communicating with a
redundant master station (TCSB).
Figure 1-2
S7 station communication with a redundant a master station
Requirements for use
1.7.1
The following description relates to a configuration with telecontrol communication with
TCSB.
Rails, housing, cabling and other accessories are not taken into account.
Depending on the configuration of your plant, you require the following devices and firmware
versions.
