Siemens SIMATIC NET TeleControl S7-1200 CP 1243-1 User Manual

Installation, connecting up, commissioning
3.2 Installing, connecting up and commissioning
CP 1243-1
30 Operating Instructions, 12/2016, C79000-G8976-C365-02
3.2
Installing, connecting up and commissioning
Prior to installation and commissioning
CAUTION
Read the system manual "S7-1200 Programmable Controller"
Prior to installation, connecting up and commissioning, read the relevant sections in the
system manual "S7-1200 Programmable Controller", refer to the documentation in the
Appendix.
When installing and connecting up, keep to the procedures described in the system manual
"S7-1200 Programmable Controller".
Pulling/plugging the module
NOTICE
Turning off the station when plugging/pulling the module
Before pulling or plugging the module, always turn off the power supply to the station.
Dimensions for installation

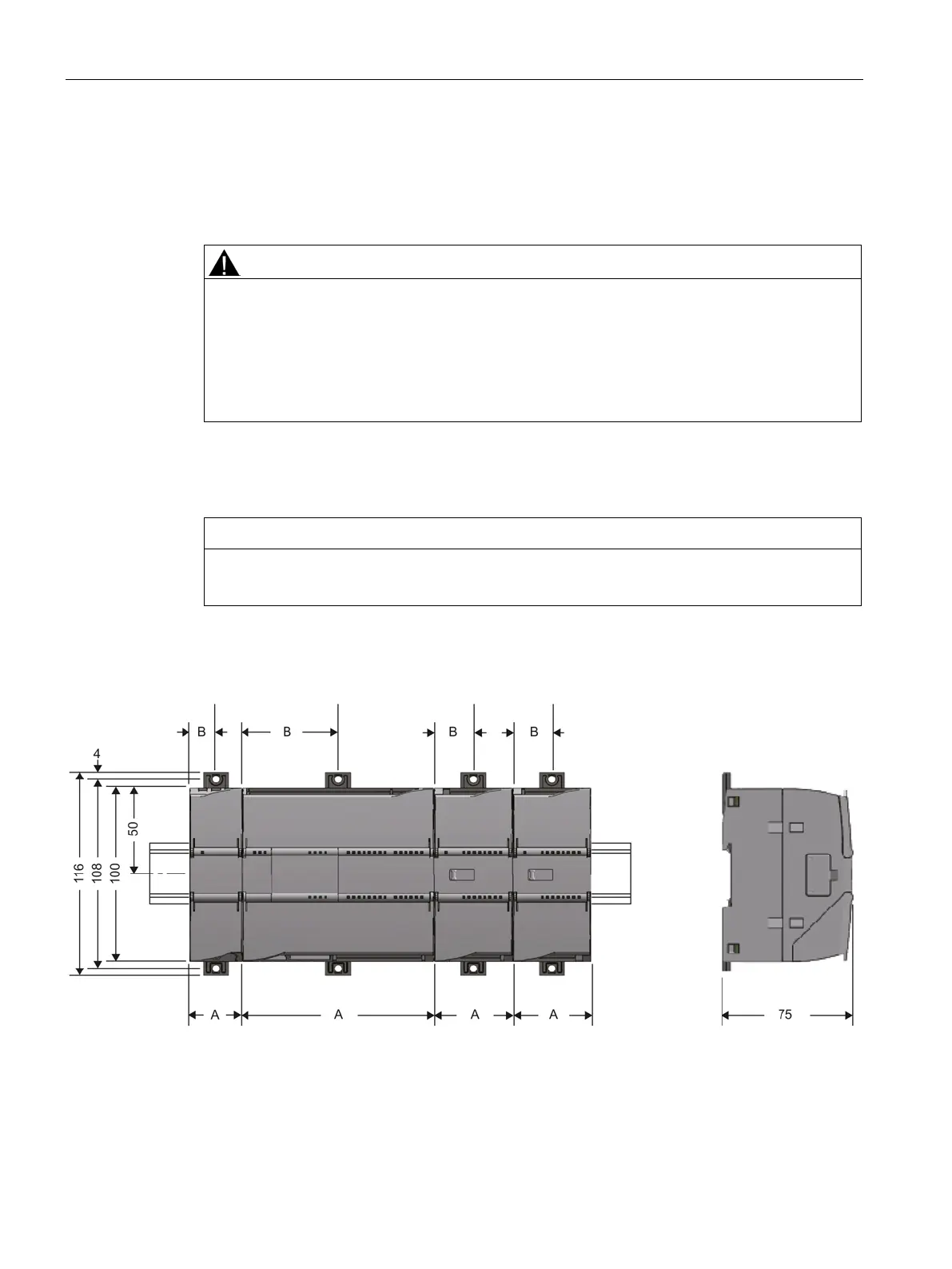

Figure 3-1 Dimensions for installation of the S7-1200

Siemens SIMATIC NET TeleControl S7-1200 CP 1243-1 Specifications

General

Compatible Controllers	S7-1200
Interface	Ethernet
Power Supply	24 V DC
Number of Possible Connections	8
Mounting Type	DIN rail
Weight	200 g
Data Transfer Rate	10/100 Mbps
Protocols	TCP/IP, UDP, DNP3, IEC 60870-5-104
Supply Voltage	20.4 ... 28.8 V DC
Current Consumption	100 mA
Operating Temperature	-20 ... +60 °C
