Siemens SIMATIC NET TeleControl S7-1200 CP 1243-1 - Page 82

Configuration
4.9 Data points
CP 1243-1
82 Operating Instructions, 12/2016, C79000-G8976-C365-02
Sequence of the analog value preprocessing options
The values of analog inputs configured as an event are processed on the CPU according to
the following scheme:

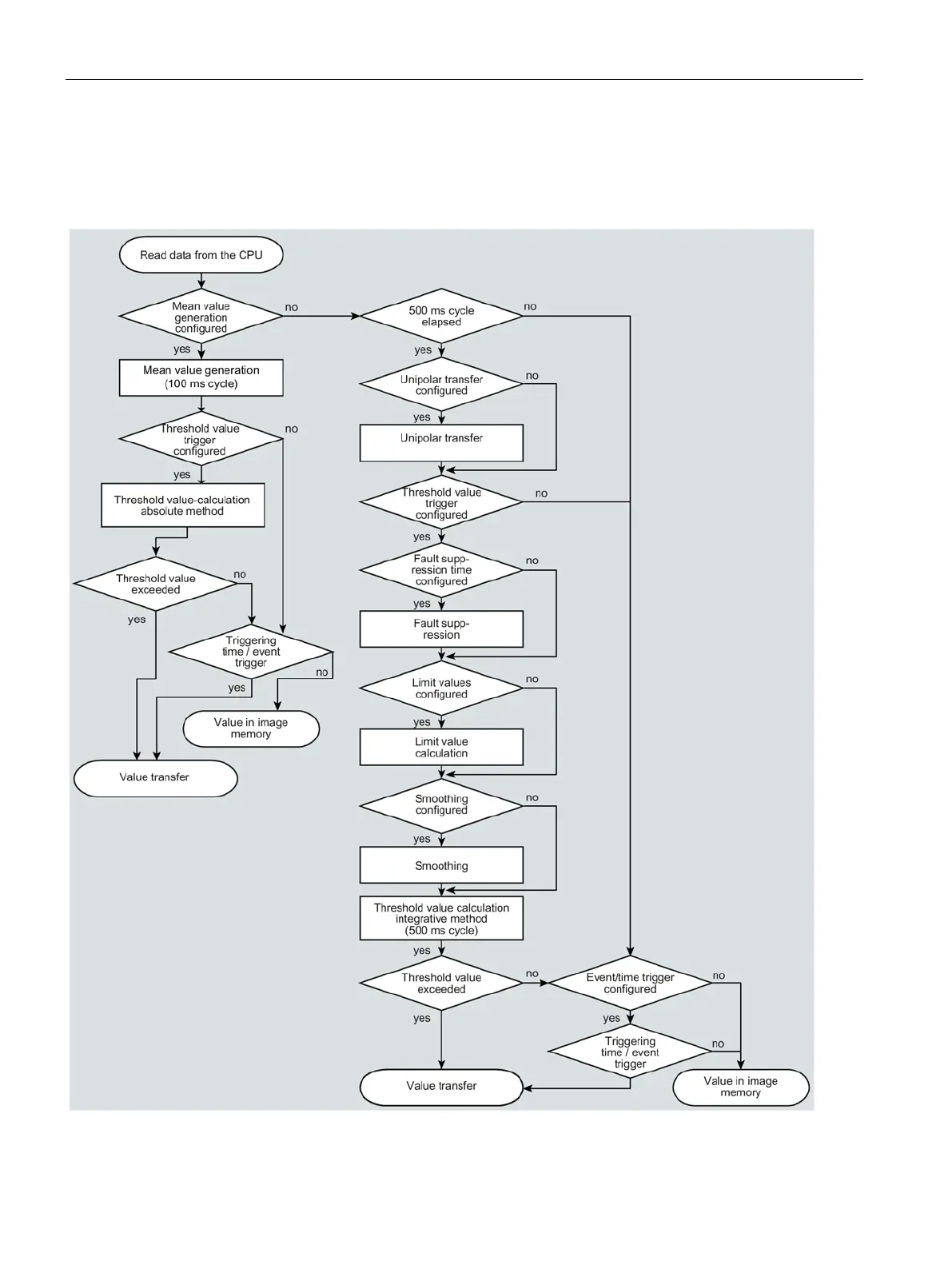

Figure 4-5 Sequence of the analog value preprocessing
