Commissioning
4.1 Commissioning (hardware)
Mobile reader SIMATIC RF660M
26 Operating Instructions, 02/2022, C79000-G8976-C660-01

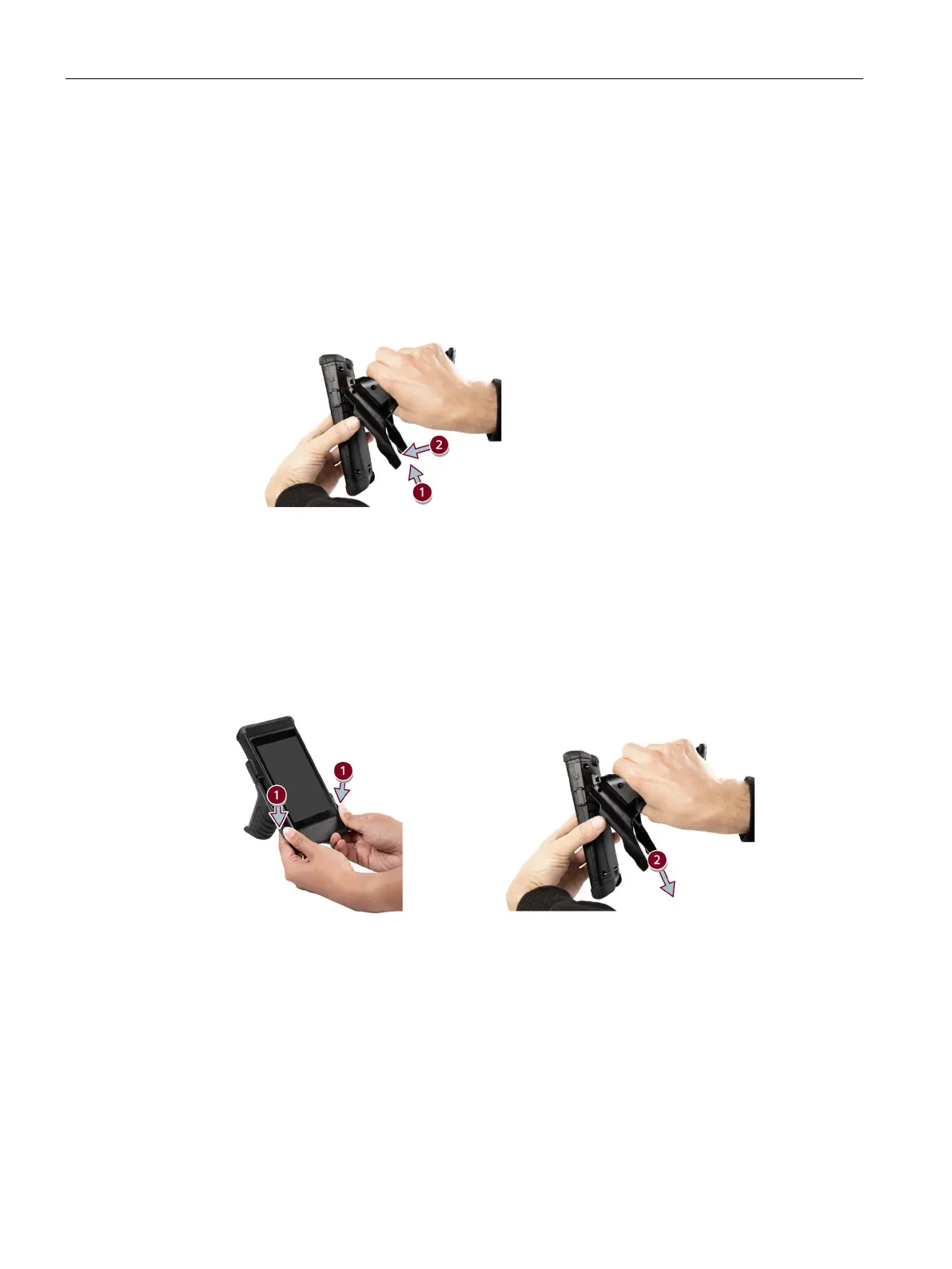

Procedure: Attaching the pistol handle
Follow these steps to attach the pistol handle to the mobile reader:
1. Remove the retaining strap, if necessary.
2. Guide the nose of the handle diagonally to the upper retaining strap hook and hang it there
①.
3. Then press the handle flat again the reader so that the sides of the handle enclose the
reader ②.
Figure 4-12 Attaching the pistol handle
Procedure: Removing the pistol handle
Follow these steps to remove the pistol handle:
1. Press the sides of the handle downwards, from the front towards the back of the mobile
reader ①.
2. Guide the handle out of the upper retaining strap hook ②.
Figure 4-13 Removing the pistol handle
3. If necessary, re-attach the retaining strap.
4.1.7 Camera
There is a 5 MP autofocus camera with flash/lighting on the rear of the mobile reader. Using
this camera and the corresponding software (app for reading codes), you can optionally also
use the reader to read bar codes and 2D codes.
