Antennas
6.5 SIMATIC RF642A
SIMATIC RF600
282 System Manual, 11/2018, J31069-D0171-U001-A21-7618
6.5.8 Dimension drawing

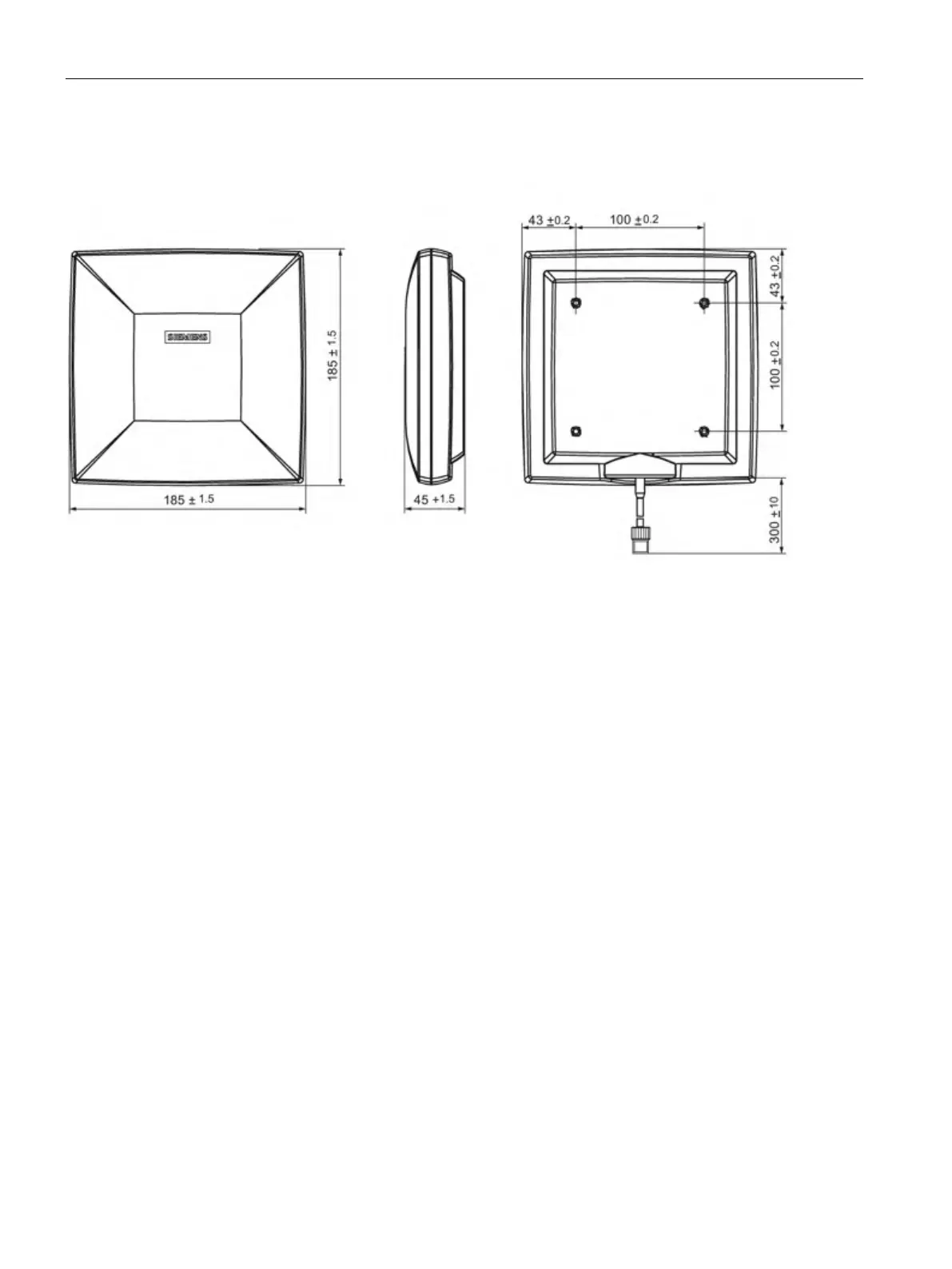

Figure 6-39 Dimensional drawing of RF642A
All dimensions in mm
