Transponder
7.9 SIMATIC RF622T
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
391
7.9.4 Dimension drawing

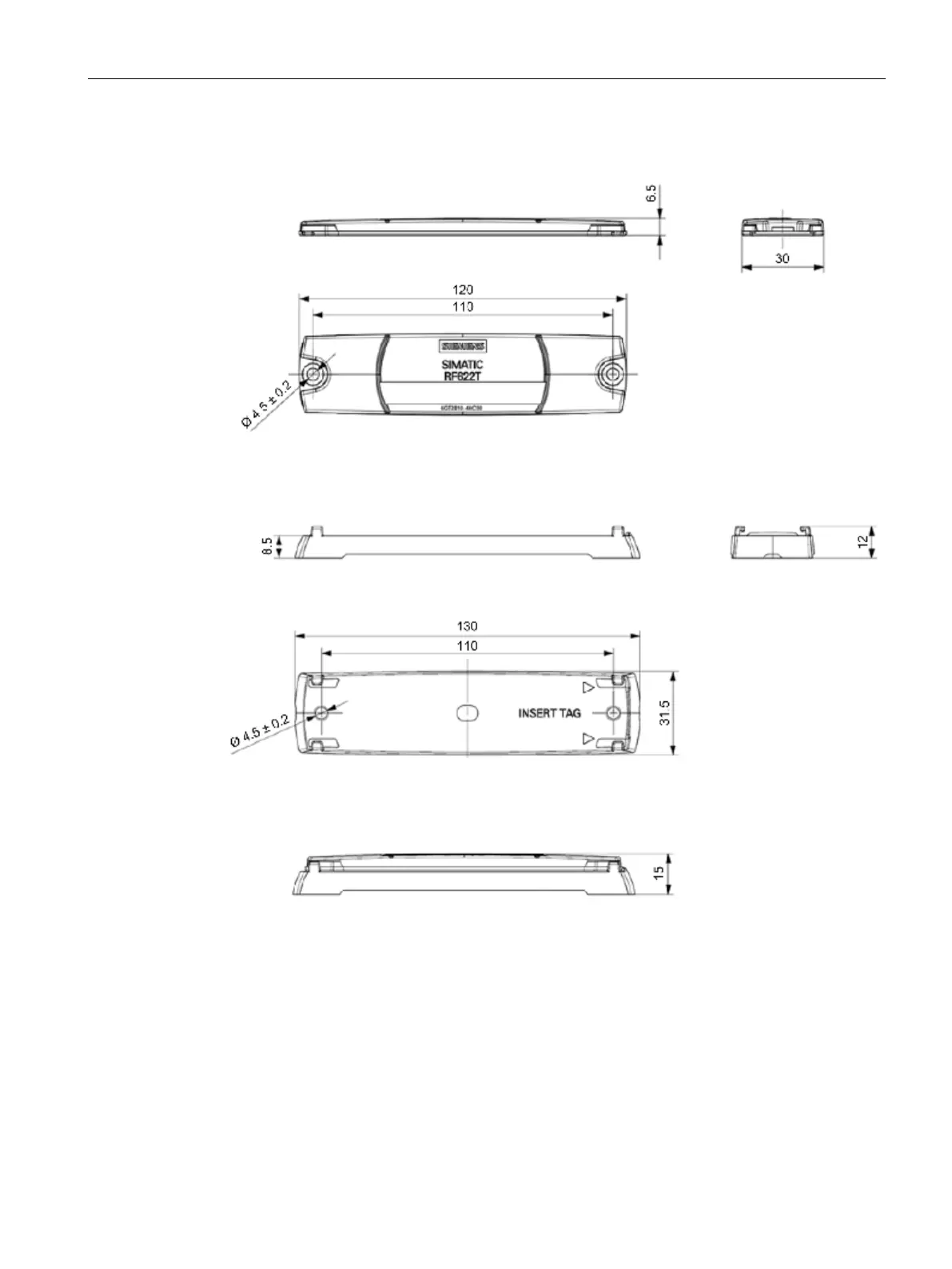

Figure 7-19 Dimension drawing RF622T
Figure 7-20 Dimension drawing spacer RF622T
Figure 7-21 Dimension drawing RF622T mounted
All dimensions in mm; tolerances unless indicated otherwise ±0.5 mm.
