Antennas
6.7 SIMATIC RF660A
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
309
6.7.8 Dimension drawing

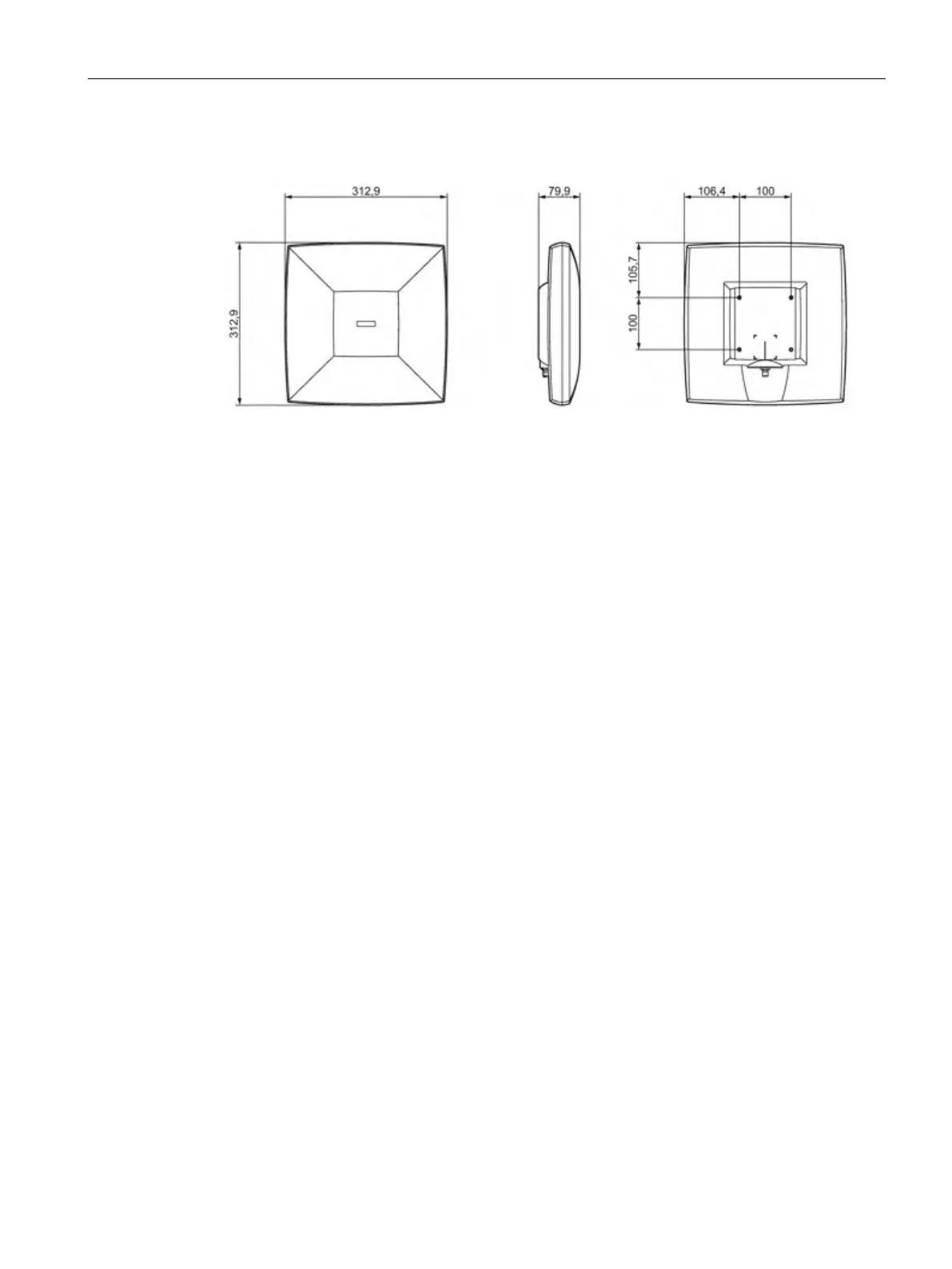

Figure 6-51 Dimension drawing RF660A
All dimensions in mm (± 0.5 mm tolerance)
