10.2 Power splitter for RF600 systems
SIMATIC RF600
476 System Manual, 11/2018, J31069-D0171-U001-A21-7618
10.2 Power splitter for RF600 systems
10.2.1 Characteristics
Using the power splitter, two antennas can be connected to one antenna connector of a
reader. The power fed in at the input (S) is split over two outputs (1, 2).

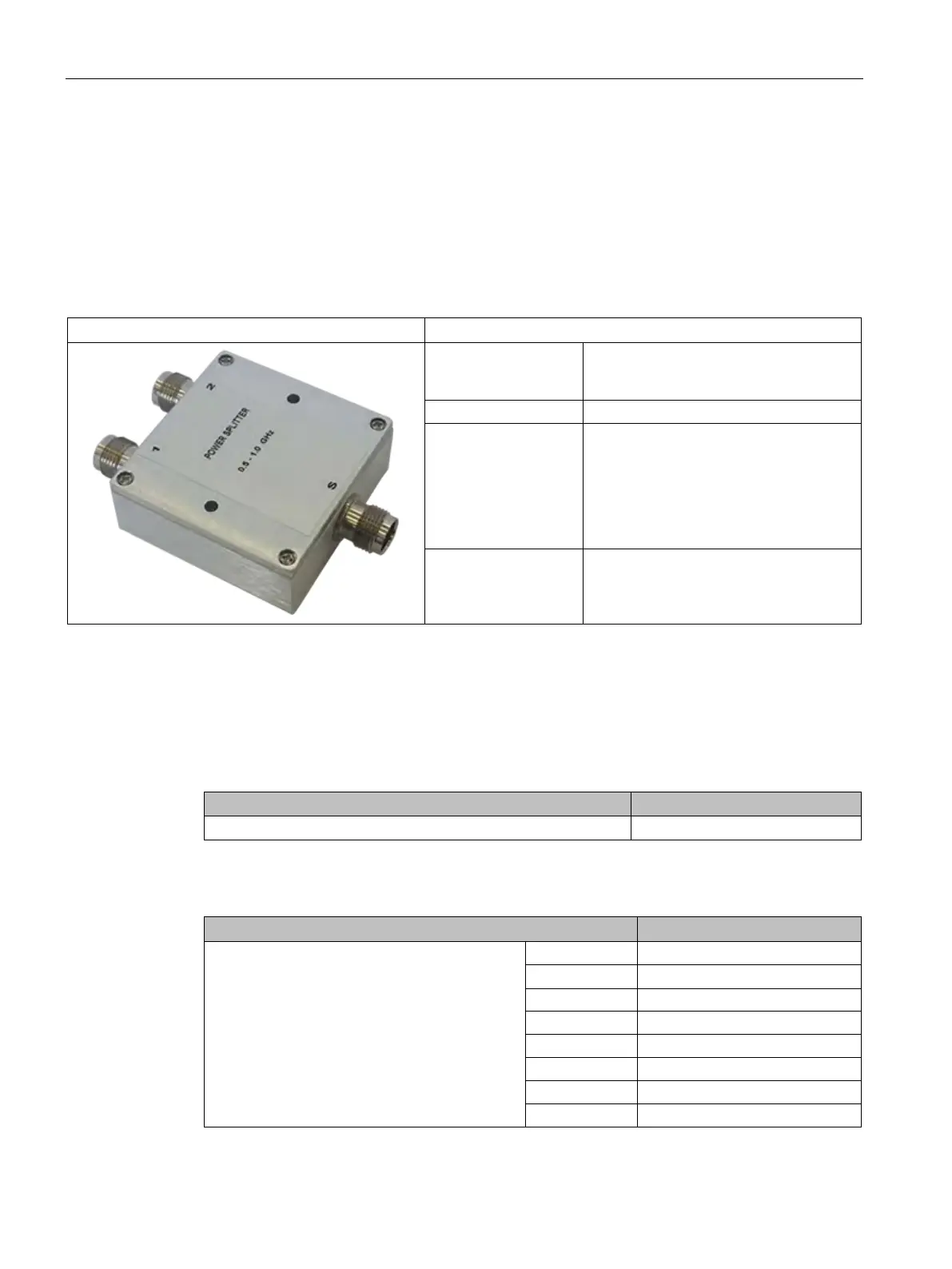

Power splitter
Characteristics
Application Designed for distributed mounting of
antennas in warehouses, logistics and
distribution
Connectable readers All readers of the RF600 system
Connectable
antennas
1)
• SIMATIC RF620A
• SIMATIC RF640A
• SIMATIC RF642A
• SIMATIC RF650A
• SIMATIC RF660A
Degree of protection IP40
1)
the antenna RF680A cannot be operated via the power splitter.
10.2.2 Ordering data
Table 10- 10 Power splitter ordering data
Article number
Power splitter
6GT2890-0BC00
Table 10- 11 Power splitter ordering data for accessories
Article number
Antenna cable
1 m, 0.5 dB
6GT2815-0BH10
3 m, 1 dB 6GT2815-0BH30
5 m, 1.25 dB
6GT2815-2BH50
10 m, 2 dB 6GT2815-1BN10
10 m, 4 dB
6GT2815-0BN10
15 m, 4.5 dB
6GT2815-2BN15
20 m, 4 dB
6GT2815-0BN20
40 m, 5 dB
6GT2815-0BN40
