10.3 Reader and antenna holders
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
481

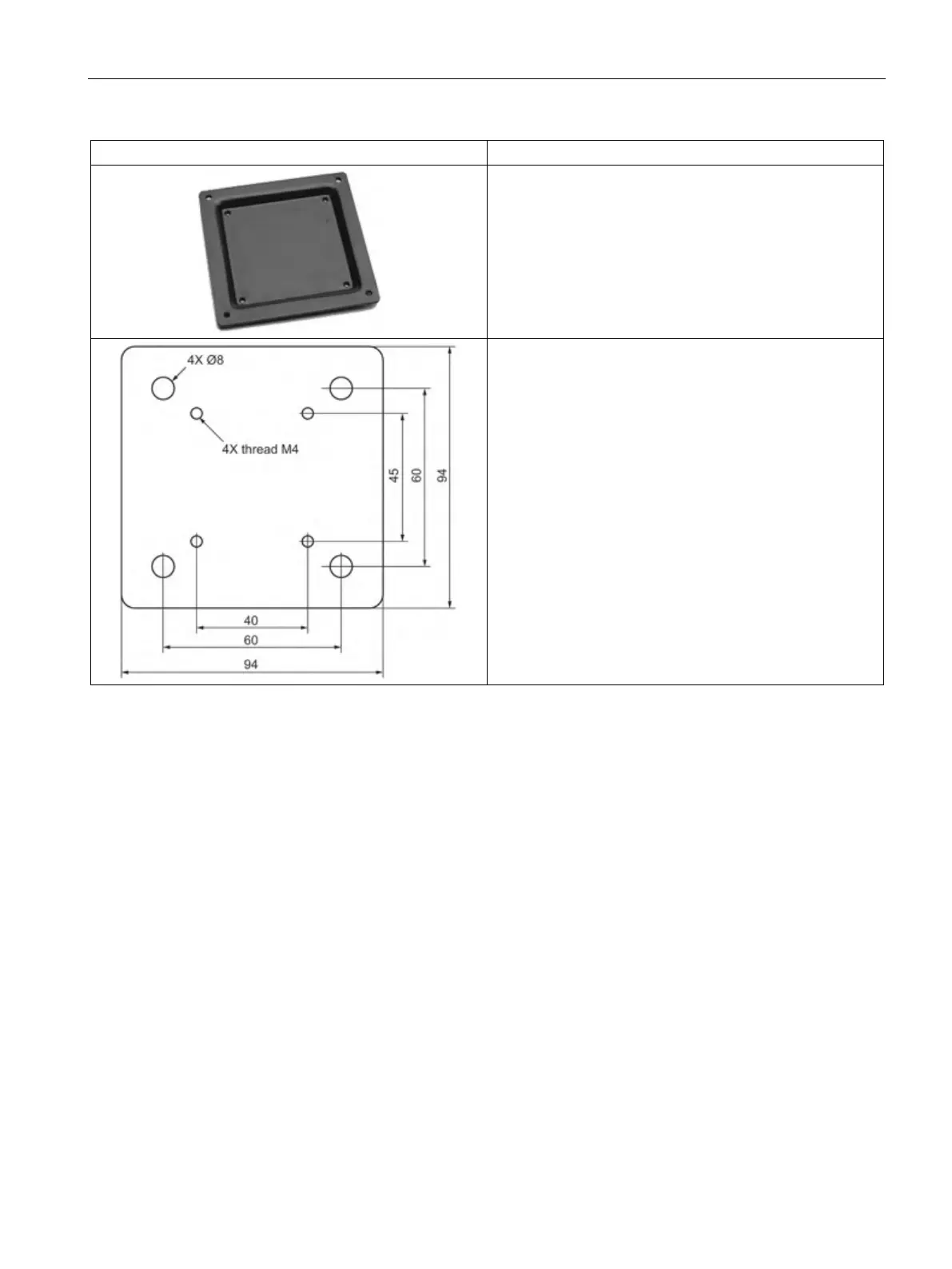

VESA adapter plate
From VESA 75 x 75 to VESA 100 x 100
The VESA adapter plate is required to fix the antenna to the
antenna mounting kit.
Hole drilling template for fixing the antenna mounting kit to
the wall.
10.3.4 SIMATIC antenna holder
10.3.4.1 Mounting with the SIMATIC antenna holder
Flexible mounting is possible with the SIMATIC antenna holder. The RF600
readers/antennas can be rotated in any direction with this holder.
Follow the steps below to mount the SIMATIC antenna holder with the reader or the antenna
on the wall:
1. Install the wall mounting plate (A) on the wall.
2. Install the articulated joint (B) with the screws
① on the wall mounting plate (A).
3. Fasten the reader or the antenna using the four bore holes on the antenna mounting plate
(C).
