1.3 Mounting dimensions and clearance requirements

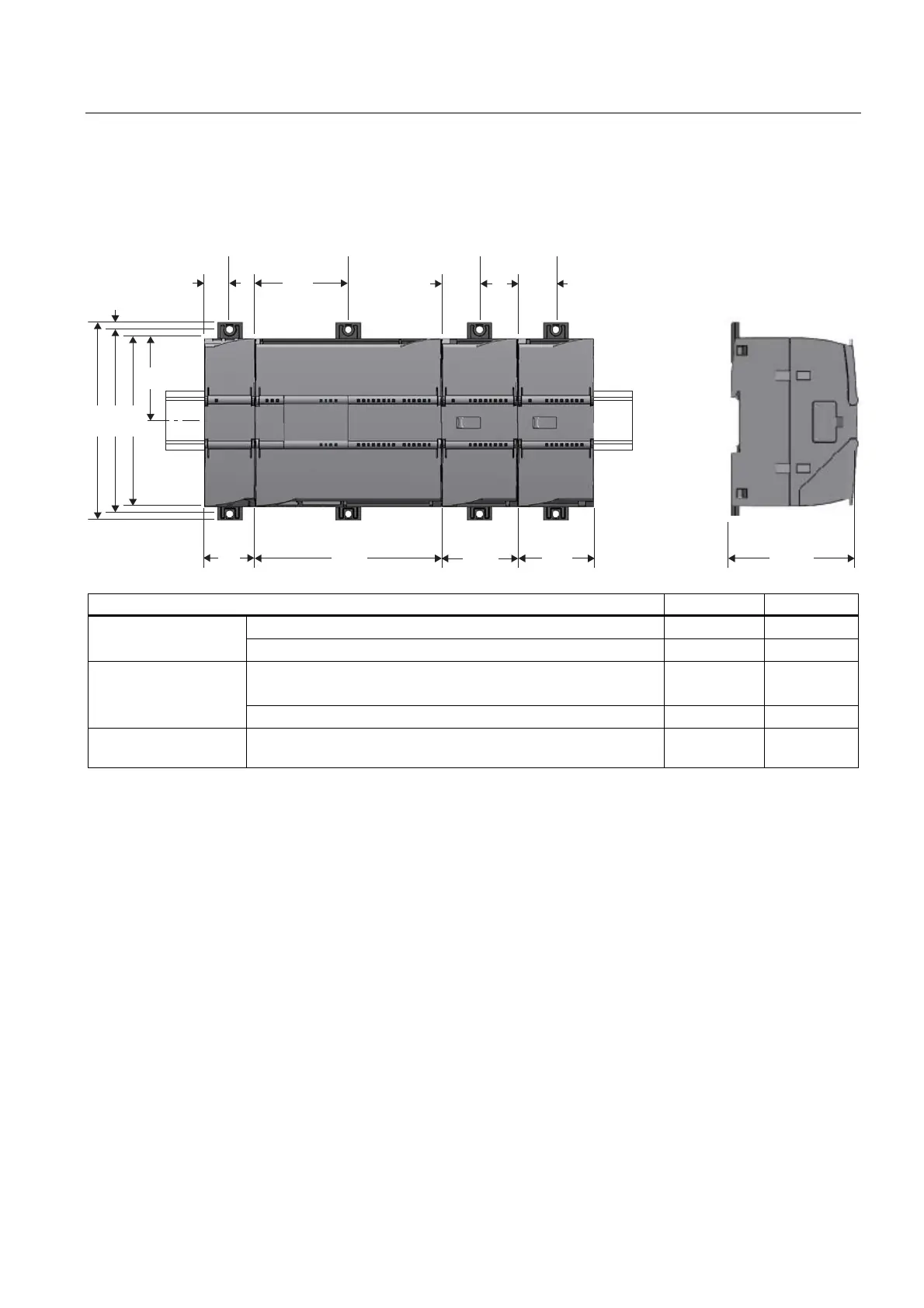

The S7-1200 PLC is designed to be easy to install. Whether mounted on a panel or on a
standard DIN rail, the compact size makes efficient use of space.
$$
$
%%%%
$
S7-1200 Devices Width A Width B
CPU 1211C and CPU 1212C 90 mm 45 mm CPU
CPU 1214C 110 mm 55 mm
8- and 16-point DC and Relay (8I, 16I, 8Q, 16Q, 8I/8Q)
2- and 4-point Analog (4AI, 4AI/4AQ, 2AQ)
45 mm 22.5 mm Signal module (SM)
16I/16Q Relay (16I/16Q) 70 mm 35 mm
Communication module
(CM)
CM 1241 RS232 and CM 1241 RS485 30 mm 15 mm
The CPUs, SMs and CMs support DIN rail mounting and panel mounting. Use the DIN rail
clips on the module to secure the device on the rail. These clips also snap into an extended
position to provide screw mounting positions to mount the unit directly on a panel. The
interior dimension of the hole for the DIN clips on the device is 4.3 mm.
