The following example shows the scaled measuring range with 3 decimal places for a
thermal resistor Pt 100 standard.
At the scaled measuring range with 3 decimal places, the measured value lies between -
32.512 K and +32.511 K around the measuring range center. In the figure, the measuring
range center is drawn at 300 °C.

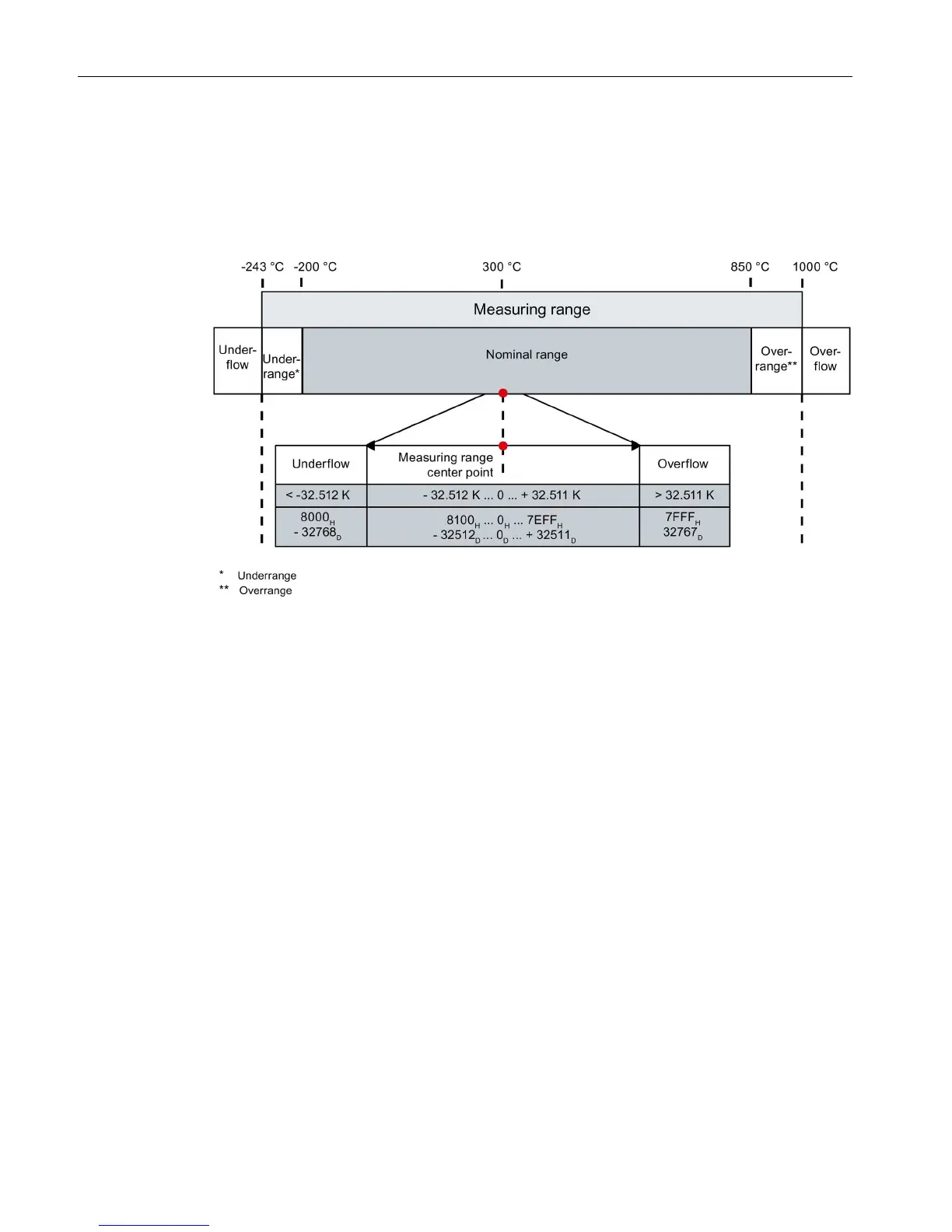

Figure 2-3 Scalable measuring range with 3 decimal places
