Analog Input Module AI 8xU/R/RTD/TC HF (6ES7531-7PF00-0AB0)
54 Manual, 09/2016, A5E36647959-AB
The dimensional drawing of the module on the mounting rail, as well as a dimensional
drawing with open front panel are provided in the appendix. Always adhere to the specified
dimensions for installations in cabinets, control rooms, etc.

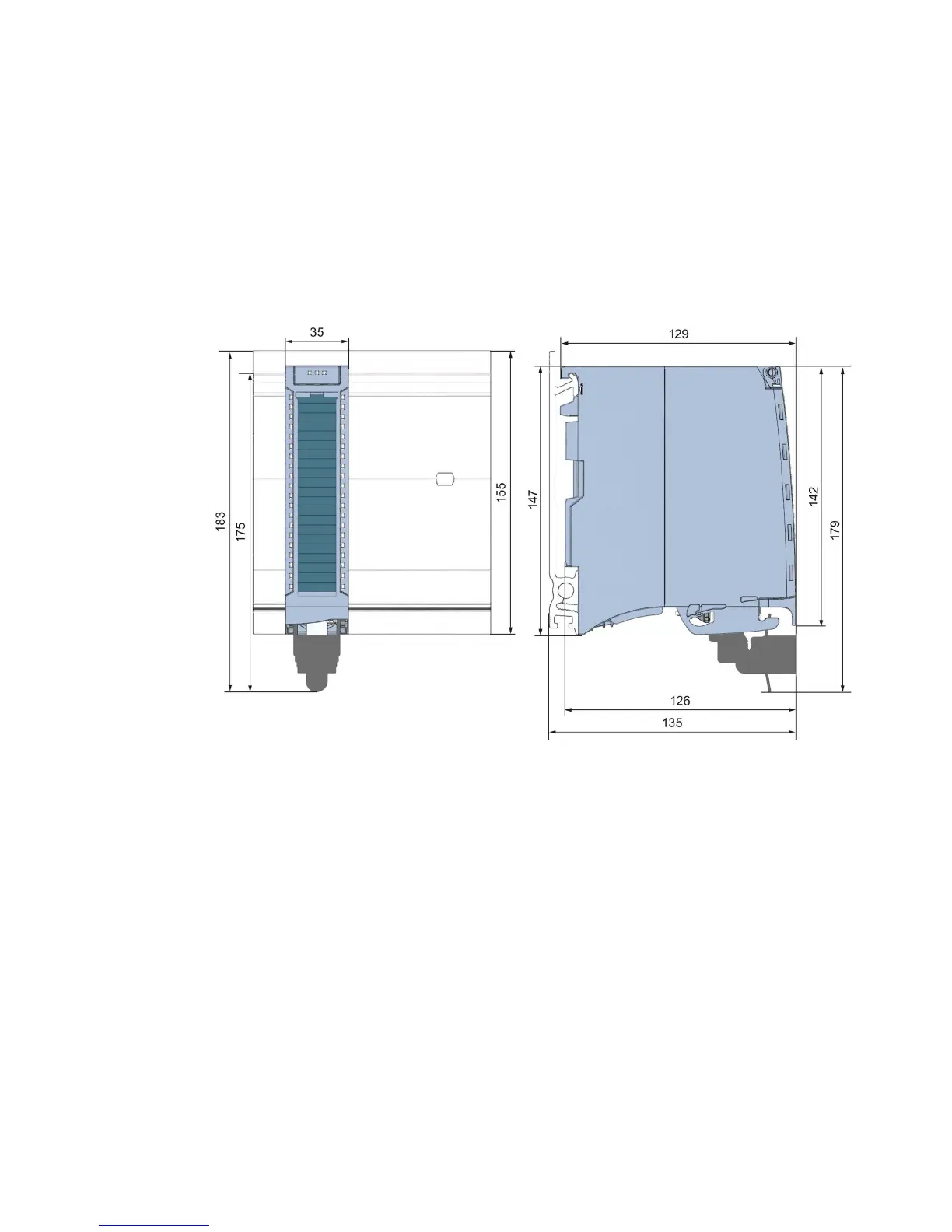

Figure A-1 Dimension drawing of the AI 8xU/R/RTD/TC HF module
