4 Configuration and Project Engineering
4.1 Creating the project configuration
SINAMICS G120 as a Speed Axis on the S7-1500
V1.0a, Entry ID: 78788716
Copyright Siemens AG 2013 All rights reserved
No. Action Picture

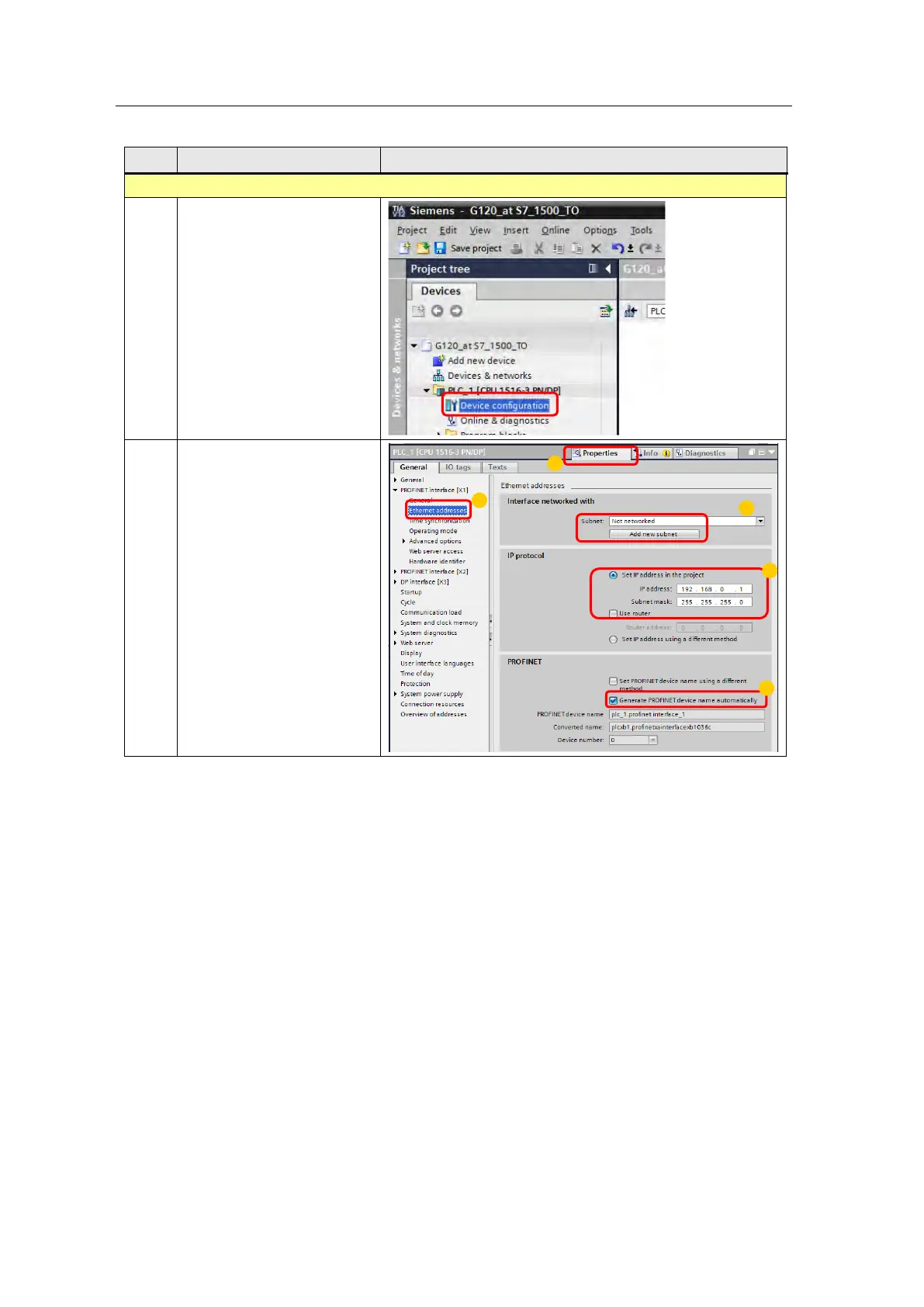

Configuring the SIMATIC S7-1500
6. Go to the Device
configuration of the CPU.
7. Open the PROFINET
interface:
1. In the Device
configuration, open the
“Properties” of the CPU.
2. In the tree, go to
“Ethernet addresses” of
the PN_interface [X1].
3. Select “Set IP address in
the project” and enter the
desired IP address.
4. Add a new subnet and
select it.
5. Select “Generate
PROFINET device name
automatically”.
