CP340/CP341/CP440/CP441 Communication and Programming
Entry-ID: 88867653, V1.0, 02/2014
5.1.2 Configuration
1. Open the project ptp created above, and right-click the project name, select
Insert New Object->SIMATIC 300 Station to change the station name to CP341
Modbus-S.

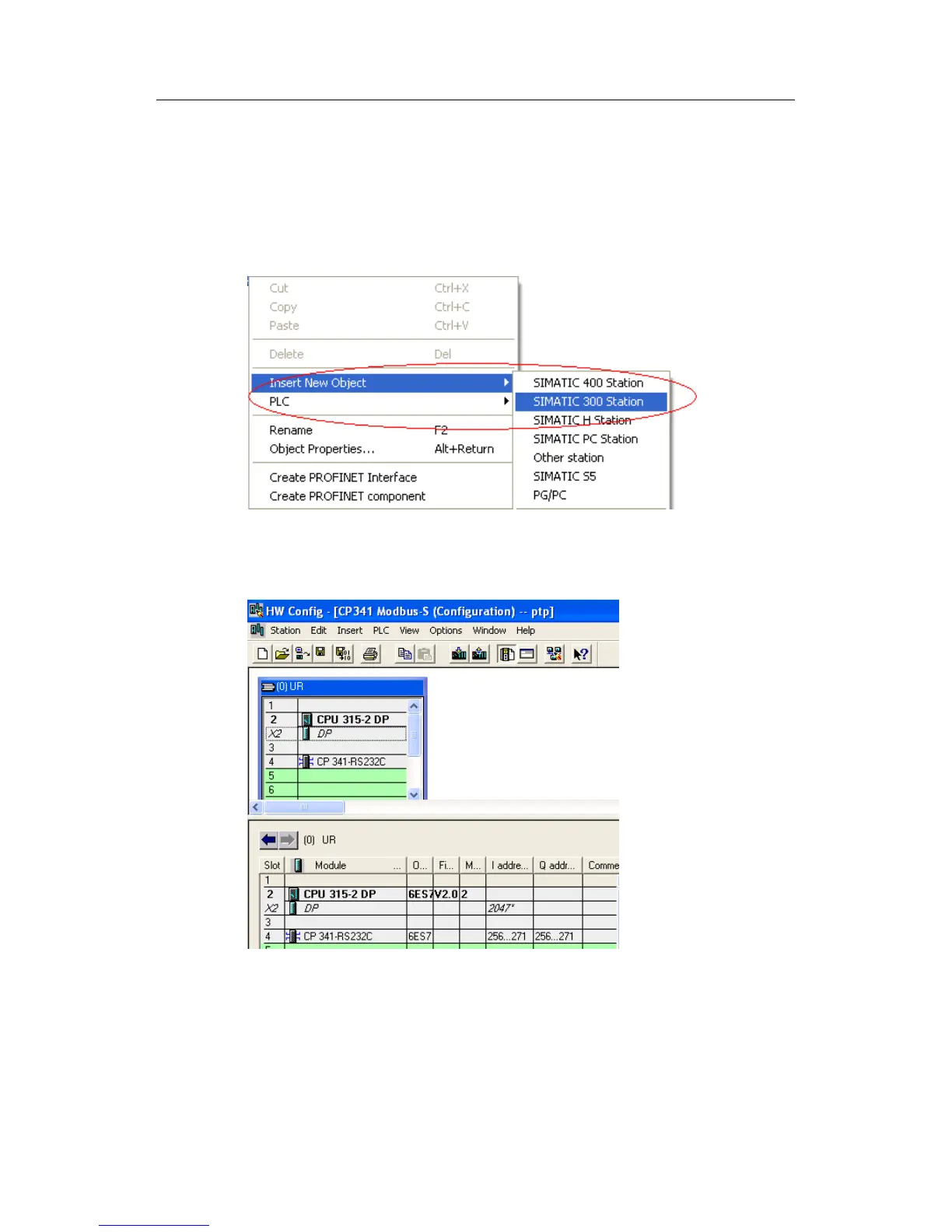

Fig. 58: Insert S7-300 station
2. Double-click Hardware to enter the hardware configuration interface and insert
RACK, CPU315-2DP and CP341.
Fig. 59: Configuration hardware
3. Double-click CP341 module, and click Parameter... to configure CP341
parameters. Select MODBUS Slave from Protocol options.
