CP340/CP341/CP440/CP441 Communication and Programming
Entry-ID: 88867653, V1.0, 02/2014

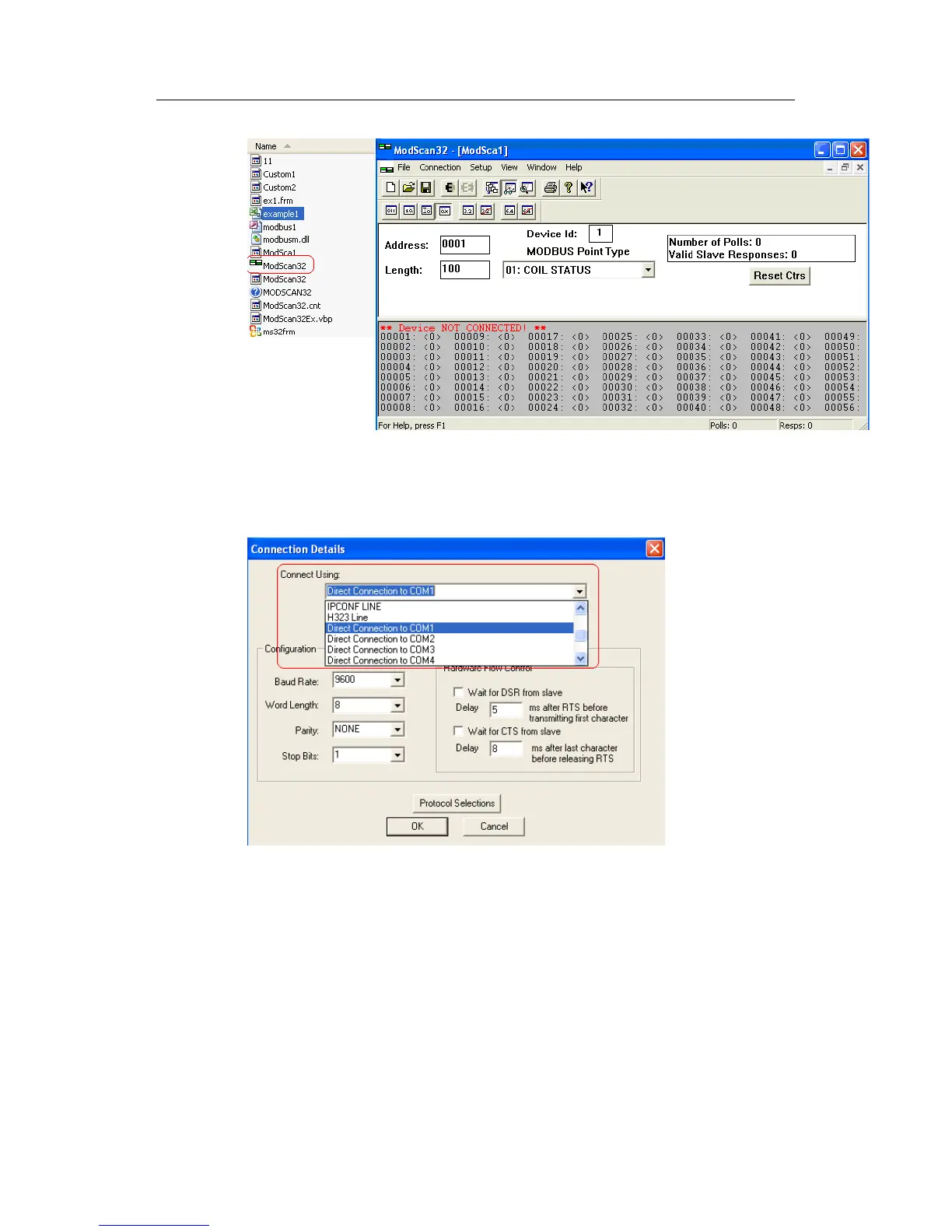

Fig. 74: Open Modscan32 software
2. Click Connection->Connect in Modscan32, as shown in the screen below.
Select COM port COM1 connecting the computer with CP341, and set the Baud
rate, data bit, stop bit and check mode, as shown in the Fig. below:
Fig. 75: Setting of Modscan32 communication parameter
3. After setting completes, click OK, and the following screen will be shown.
