Siemens Simatic series Getting Started

SIMATIC IPC847C
Getting Started, 12/2010, A5E02669190-02
7
Description
2
2.1 External structure

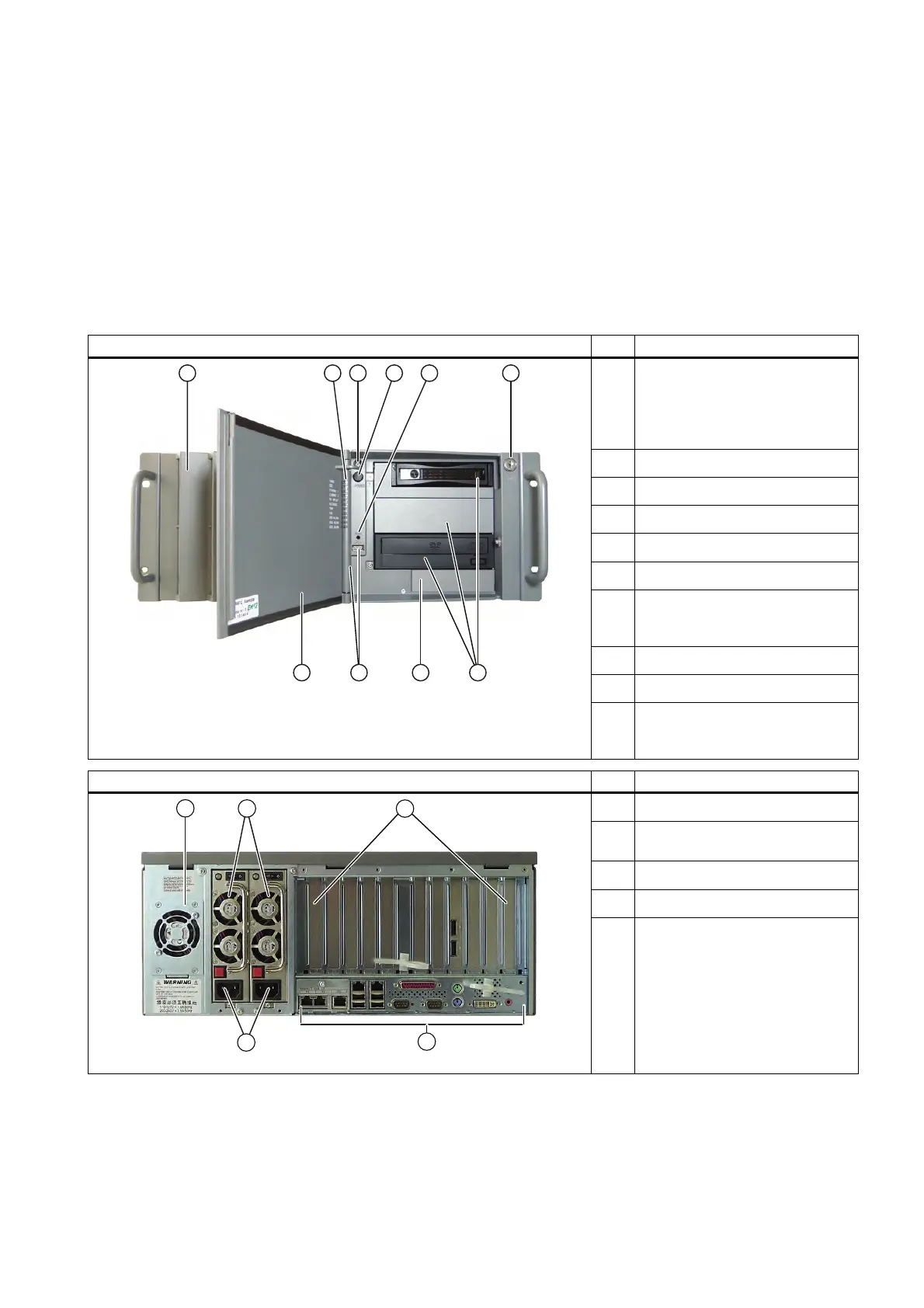

Front view of the device (example) Item Description
①
Front panel with vent openings
(filter mat and fan behind the front
panel). Check the filter mat
regularly for soiling and, if
appropriate, replace it.
②
Status displays
③
Cover screws
④
On/off button
⑤
Reset button
⑥
Lock
⑦
Features for the installation of
DVD ROM drives, DVD burners
and removable racks
⑧
Installation option for 3.5" drive
⑨
2 x USB interface


    

⑩
Lockable front door for access
security. Keep the front door
closed during normal operation.
Rear view of the device (example) Item Description
①
Rear drive cooling fan
②
Modules of the redundant power
supply (optional)
③
Expansion slots
④
Connection elements





⑤
Mains connection of the
redundant power supply modules

Siemens Simatic series Specifications

General

Processor	Intel Core i3, Core i5, Core i7
Operating System	Windows 10 IoT Enterprise, Linux
Storage	SSD, HDD
Interfaces	Ethernet, USB, RS-232/485
Ports	Ethernet, USB, Serial
Mounting	DIN rail, wall
Protection Class	IP65
Graphics	Integrated Intel HD Graphics
Expansion Slots	PCIe
Power Supply	24V DC or 100-240V AC
Operating Temperature	0°C to 50°C (depending on model)
