Mounting and connecting the HMI device
3.1 Preparing for installation
TP700 Comfort Outdoor, TP1500 Comfort Outdoor
Compact Operating Instructions, 05/2016, A5E35956909-AC
17
The following clearances are required around the HMI device to ensure sufficient self-
ventilation:
● At least 15 mm to both the right and left of the mounting cutout (in x direction) to allow for
insertion of the mounting clips during installation
● At least 50 mm above and 50 mm below the mounting cutout (in the y direction) for
ventilation
● At least 10 mm behind the rear panel of the HMI device (in the z direction)

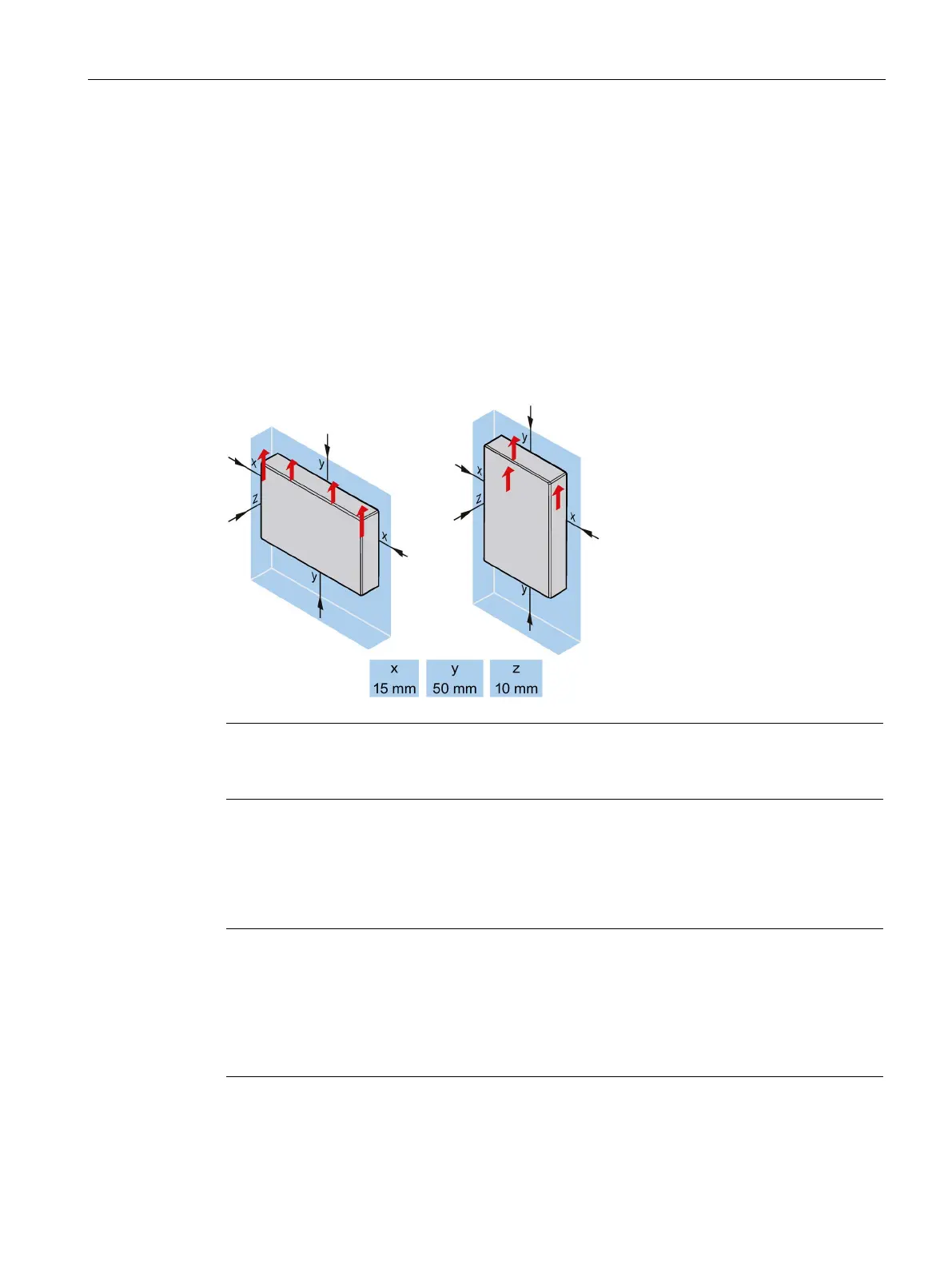

The following figure shows the clearances during mounting of the HMI devices in horizontal
and vertical formats:
Note
Ensure that the maximum ambient temperature is not exceeded when mounting the device
in a cabinet and especially in a closed enclosure.
Preparing the mounting cutout
Note
Stability of the mounting cutout
The material in the area of the mounting
cutout must provide sufficient strength to guarantee
lasting and safe mounting of the HMI device.
To achieve the degrees of protection described below, it must be ensured that deformation
of the material cannot occur due to the force of the mounting clips
or operation of the device.
