3.3 Replacing the Mass Storage
87Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009

Release the screws on the CPU board (see Figure 3-9) and detach the two boards from each
other.

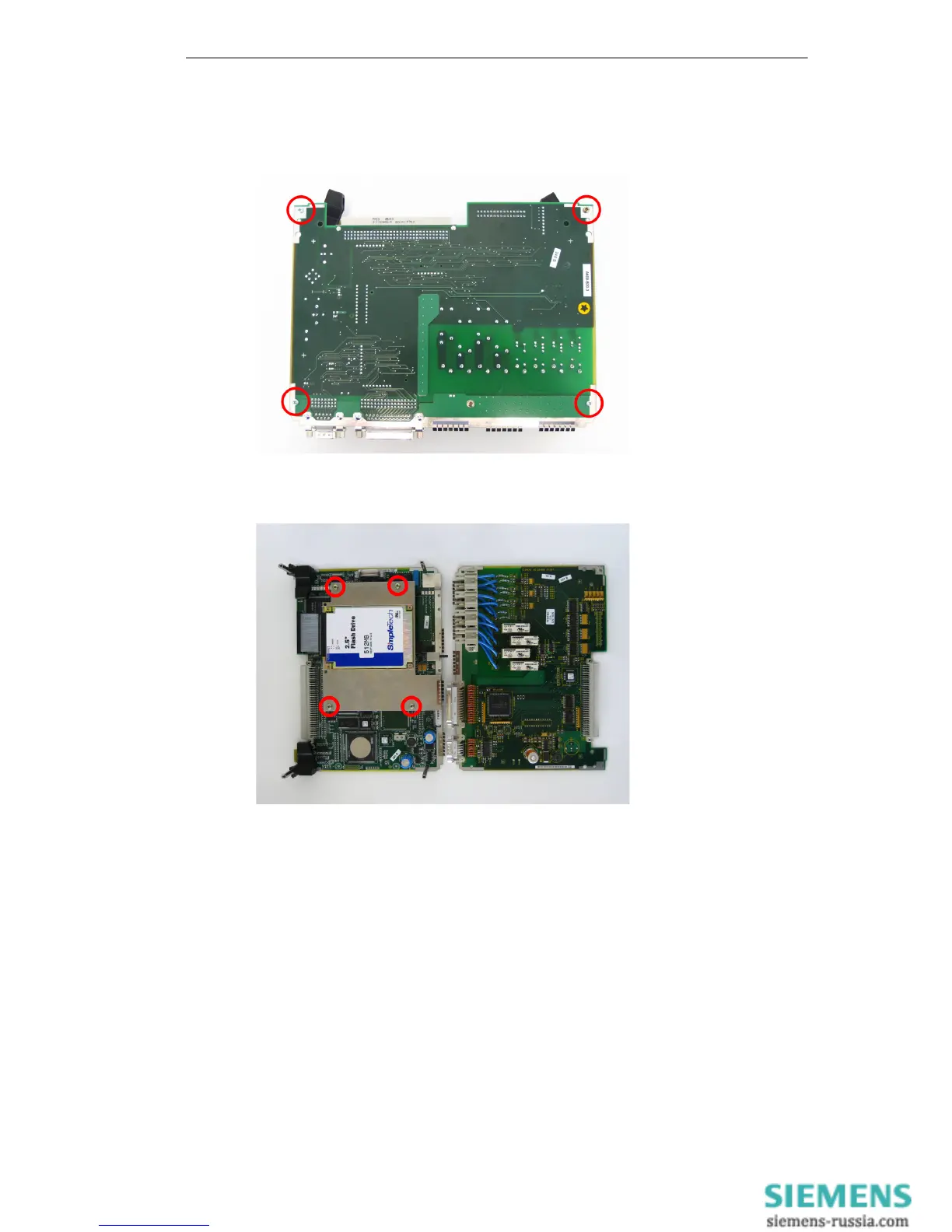

Figure 3-9 Fastening screws of the CPU module

Loosen the screws of the carrier plate with the 2.5” flash disk (see Figure 3-10).
Figure 3-10 Fastening screws of the carrier plate
