Battery and Battery Pack
1.2 Battery Pack on the Power Supply Module (Option)
68 Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009
Carefully pull the plug connectors of the two ribbon cables out of the CPU board and set the
front plate aside (see Figure 1-13).

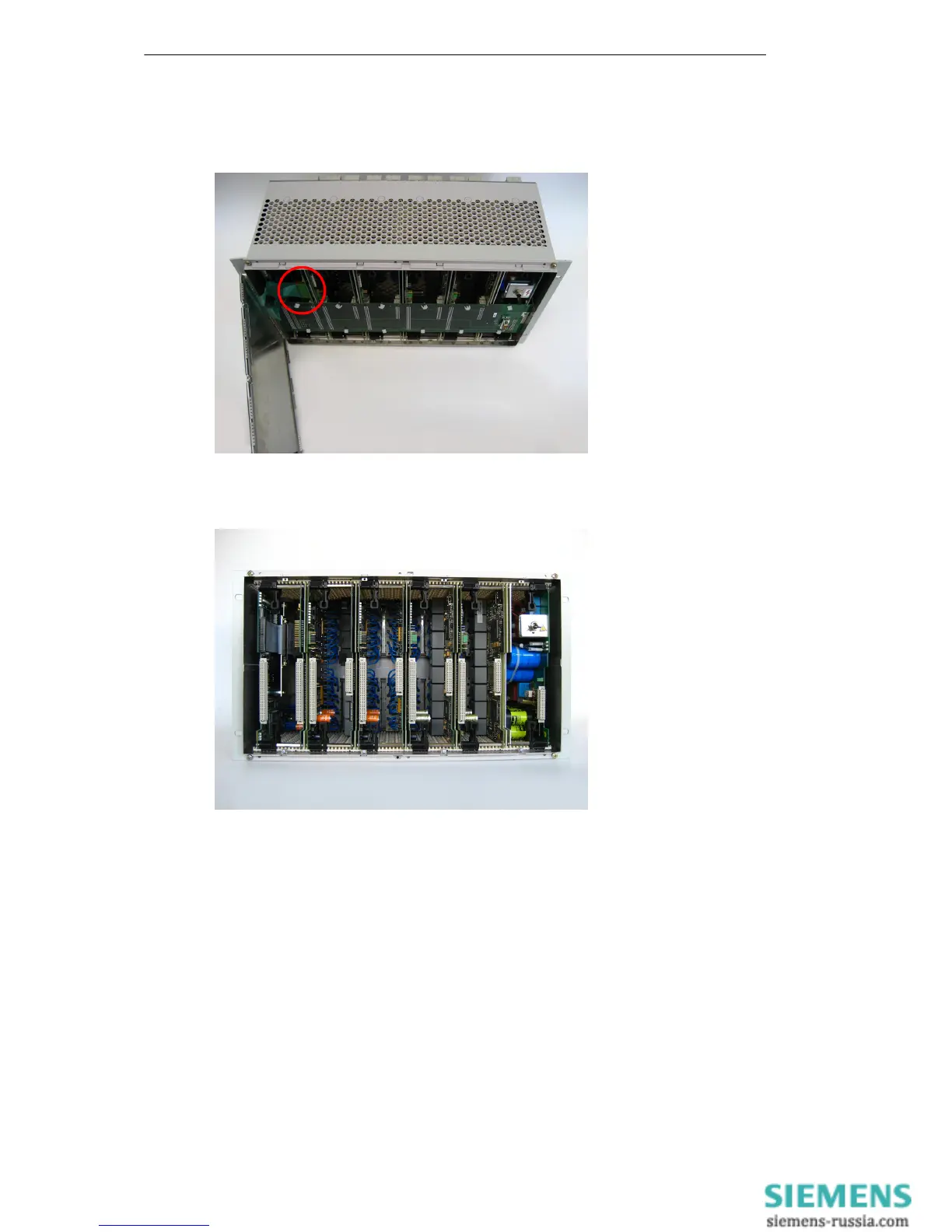

Figure 1-13 Connecting the ribbon cable
Remove the bus board from the modules and set it aside (see Figure 1-14).
Figure 1-14 Internal view of the device witout bus board
