Battery and Battery Pack
1.2 Battery Pack on the Power Supply Module (Option)
69Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009

Detach the power supply module by pushing the black locking levers right until the levers
unlatch from the PCB. Flip both locking levers forward simultaneously (approx. 45°) until the
levers snap into the second position on the PCB (see Figure 1-15).

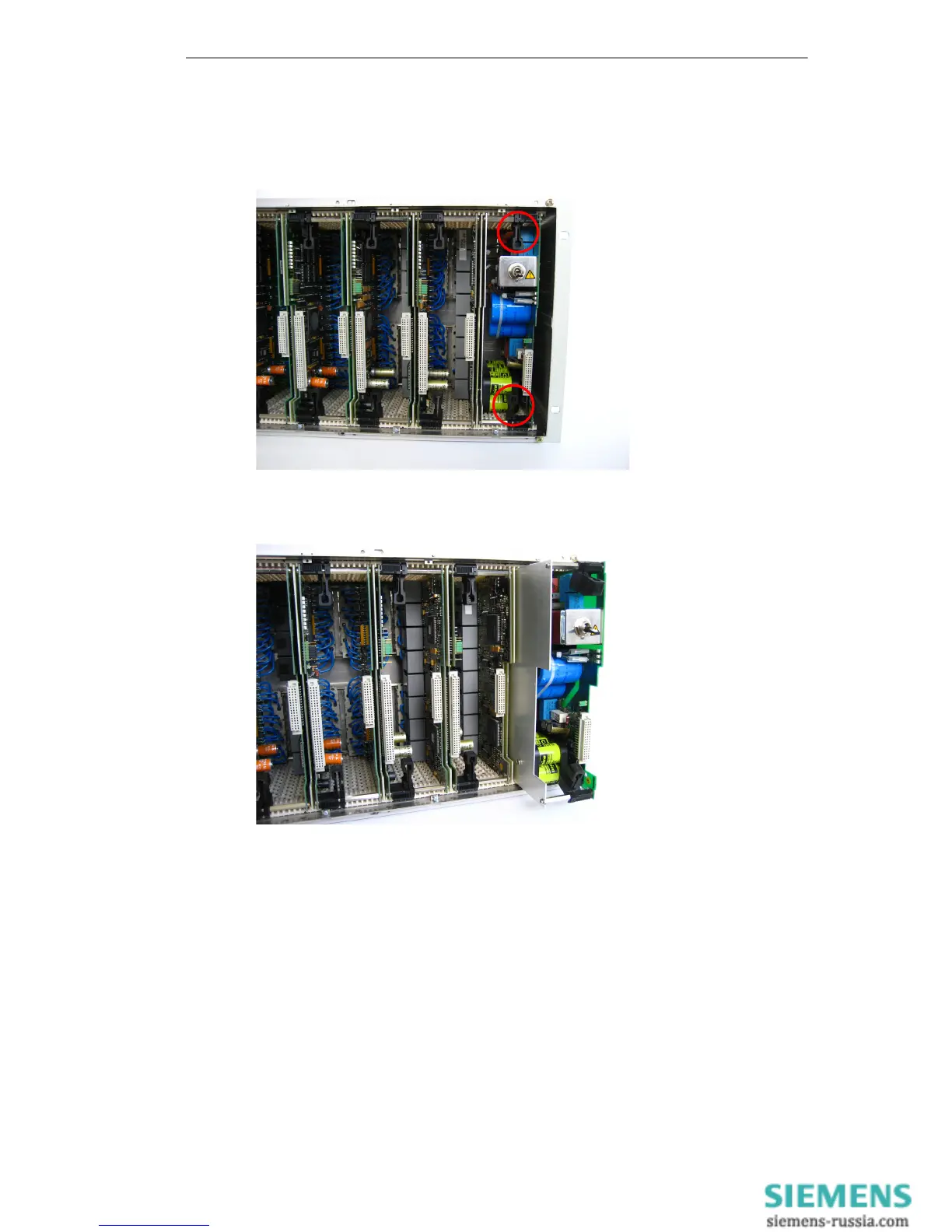

Figure 1-15 Deblocking the power supply module

Pull the power supply module forward (see Figure 1-16).
Figure 1-16 Pulling the power supply module out

Place the power supply module with the plate facing up on a non-conducting mat.
