Battery and Battery Pack
1.2 Battery Pack on the Power Supply Module (Option)
70 Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009

Remove the shielding cover (4 screws) and swing it towards the battery pack connection
cable (see Figure 1-17).

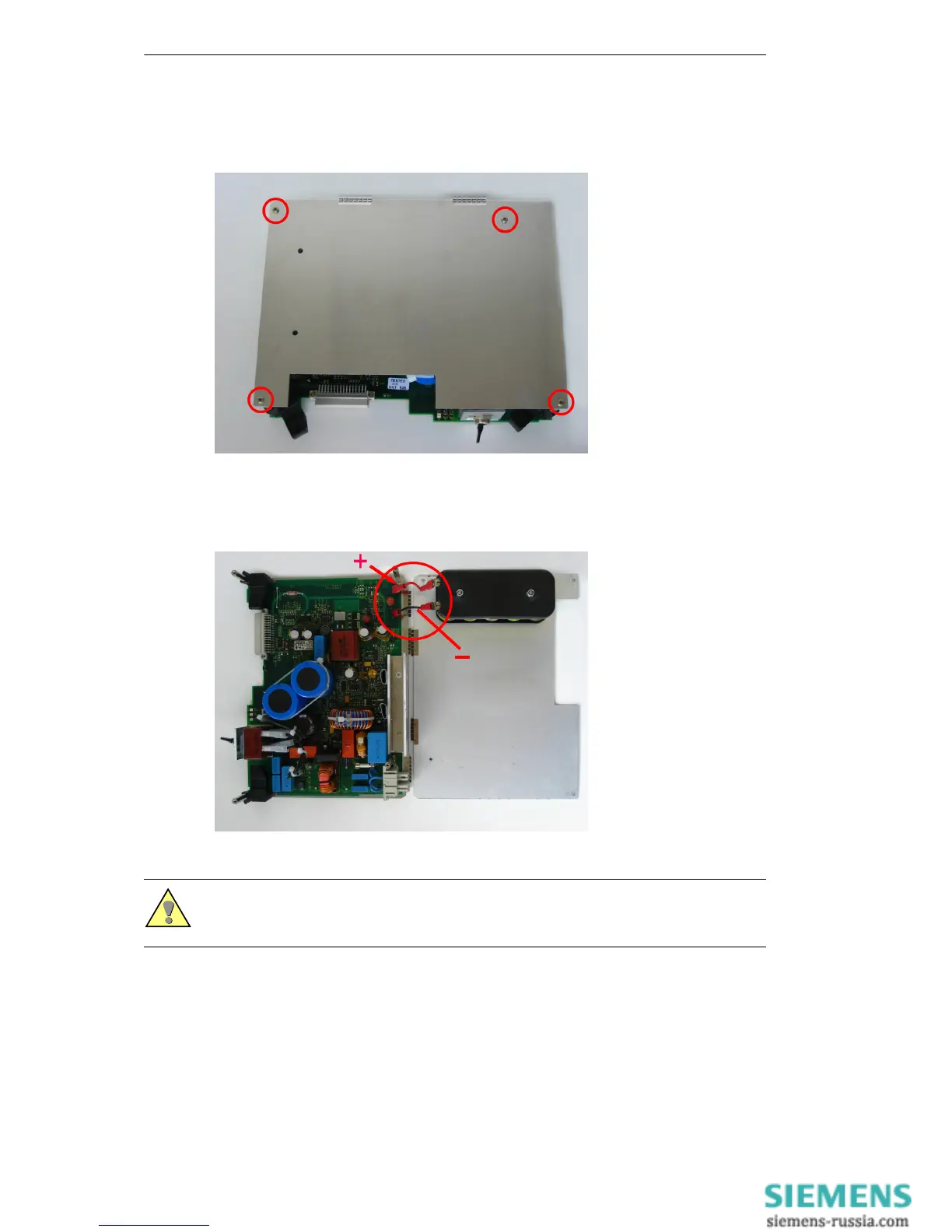

Figure 1-17 Fastening screws of the shielding cover

Remove the positive line from the battery pack (see Figure 1-18).
 Remove the negative line from the battery pack (see Figure 1-18).
Figure 1-18 Connection cable between power supply module and battery pack
Caution
Danger of short-circuit if the connections of the battery pack touch each other.
