Motor Components
3.2 Encoders
1PH7/3-120
Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition

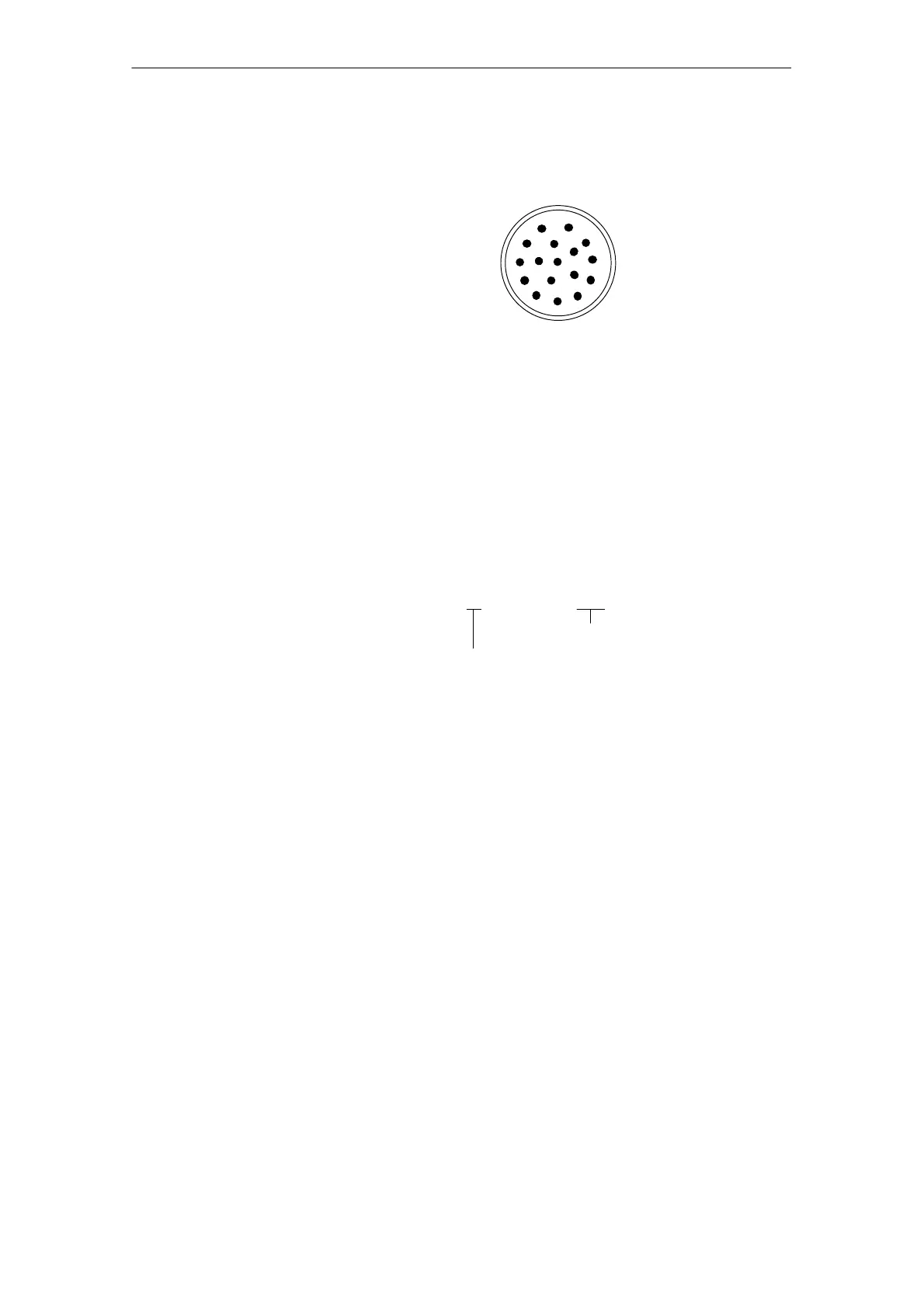

Connection: 17 pin flange-mounted socket (pin contacts)
PIN No. Signal
1A+
2A–
3R+
4 not connected
5 not connected
6 not connected
7 M–Encoder
8 +Temp
9–Temp
10 P–Encoder
11 B+
12 B–
13 R–
14 not connected
15 0 V Sense
16 5 V Sense
17 not connected
4
5
6
7
8
9
10
11
1
2
3
14
17
15
16
12
13
When viewing the plug-in side
(pins)
Mating connector: 6FX2003-0CE17 (socket)
Pre-assembled cable: 6FX002-2CA51-0
Length
8 = MOTION-CONNECT 800
5 = MOTION-CONNECT 500
