Motor Description
1.4 Order number
1PH7/1-19
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Shaft heights 180 to 225
Degree of protection; paint finish
0 = IP 55; with primer, without paint finish
2 = IP 55 prepared for mounting a ZF gearbox
4)
; with primer, without paint finish
Rated speed
5)
T= 500 RPM C = 700 RPM
D = 1000 RPM E = 1250 RPM
F = 1500 RPM L = 2500 RPM
Bearing design Vibr. severity level Shaft flange accuracy
A = coupling out-drive R N
B = coupling out-drive R R
C = coupling out-drive S R
D = coupling out-drive SR R
E = belt out-drive R N
F = belt out-drive R R
G= belt out-drive with increased cantilever force
8)
RN
H= belt out-drive with increased cantilever force
8)
RR
J= coupling out-drive (only SH 180)
6)
SR
. . .
Induction motor
–N.
Encoder system
N = with optical sin/cos incremental encoder
–0.
Size
Type of construction
0 = IM B3, standard hoisting concept
1 = IM B3, hoisting concept for vertical types of construction
2)
3 = IM B35, standard hoisting concept
5 = IM B35, hoisting concept for vertical types of construction

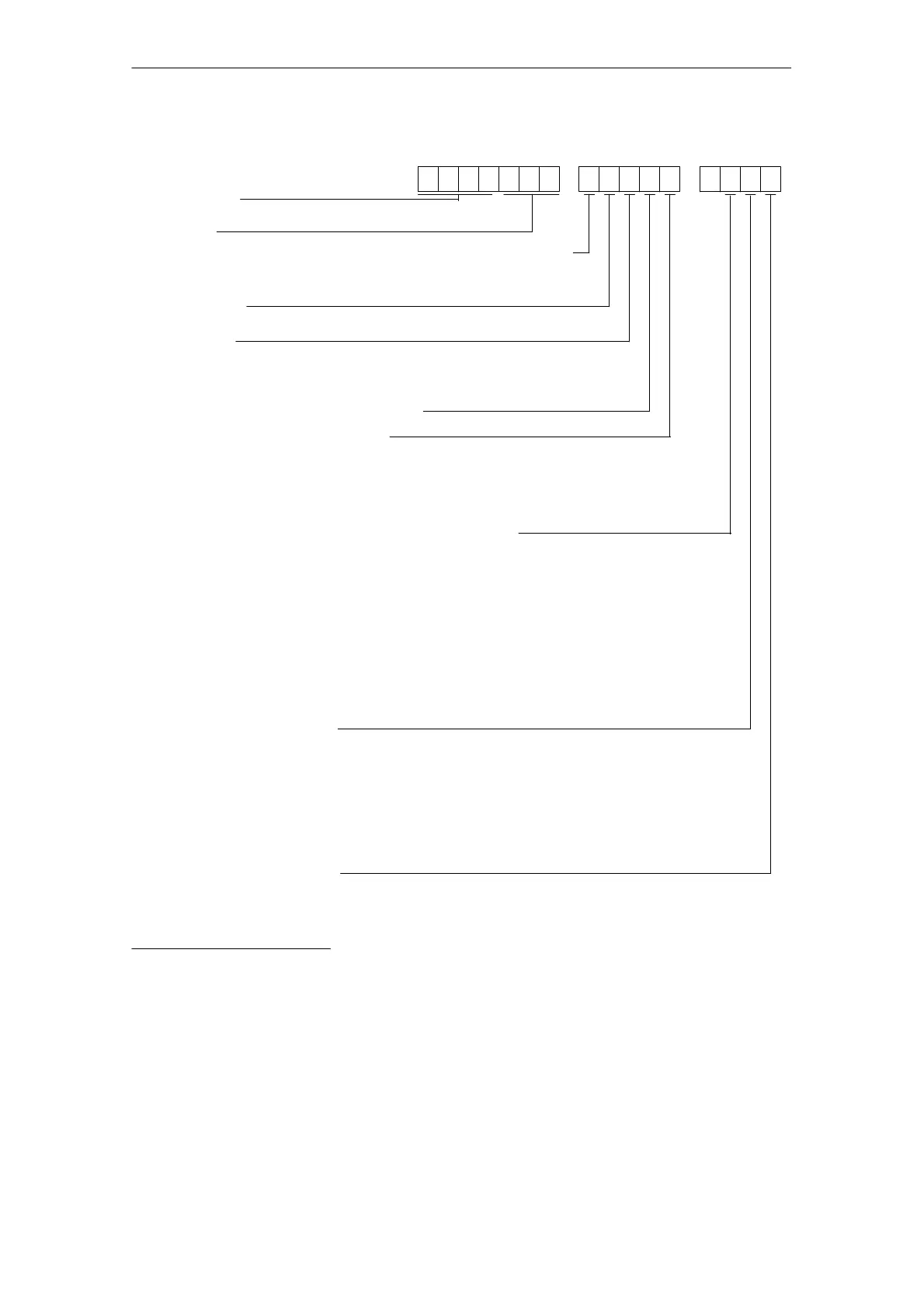

1 P H 7 . ... .
Terminal box arrangement/outlet direction
1) 3)
0 = top/right
1= top/DE
2 = top/NDE
3 = top/left
Bearing design, vibration severity, shaft and flange accuracy
Shaft version; cooling
Shaft Air flow direction Discharge direction
3)
A key and half-key balancing DE –> NDE right
B
7)
key and half-key balancing NDE –> DE axial
C key and full–key balancing DE –> NDE right
D
7)
key and full-key balancing NDE –> DE axial
J smooth shaft DE –> NDE right
K
7)
smooth shaft NDE –> DE axial
Separately-driven fan, 3-ph. 400 V AC/50 Hz or 3-ph. 480 V AC/60 Hz
2 = with separately-driven fan, PG cable entry
7 = with separately-driven fan, metric cable entry according to EN 50262
1) Signal connector outlet, shifted through 180°
2) Not IM V6 (shaft facing upwards)
3) When viewing the drive end
4) Only in conjunction with type of construction IM B35 and IM V15, bearing designs for coupling out-drive,
vibration severity level R, shaft and flange accuracy R, key and full-key balancing
5) Not for every shaft height
6) Version for increased max. speed (n
max
=7000 RPM); not for mounted gearbox
7) The motor is longer (refer to the dimension drawings)
8) n
max
=4500 for SH 225
