Siemens Simodrive 1PH7 User Manual

Technical Data and Characteristics
2.2 Power-speed and torque-speed diagrams
1PH7/2-48
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-13 Induction motor 1PH7105-NF-0L
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
7.0 1500 45 17.5 12000 20 0.029 63
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
S1 (17.5 A)
S6–60% (21.0 A)
S6–40% (23.5 A)
S6–25% (28.0 A)
continuous
briefly
0
10
20
30
40
50
60
70
80
90
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
M [Nm] P [kW]
n [RPM]
n [RPM]
S1 (45 Nm, 17.5 A)
S6–60% (54 Nm, 21.0 A)
S6–40% (64 Nm, 23.5 A)
S6–25% (80 Nm, 28.0 A)
continuous
briefly

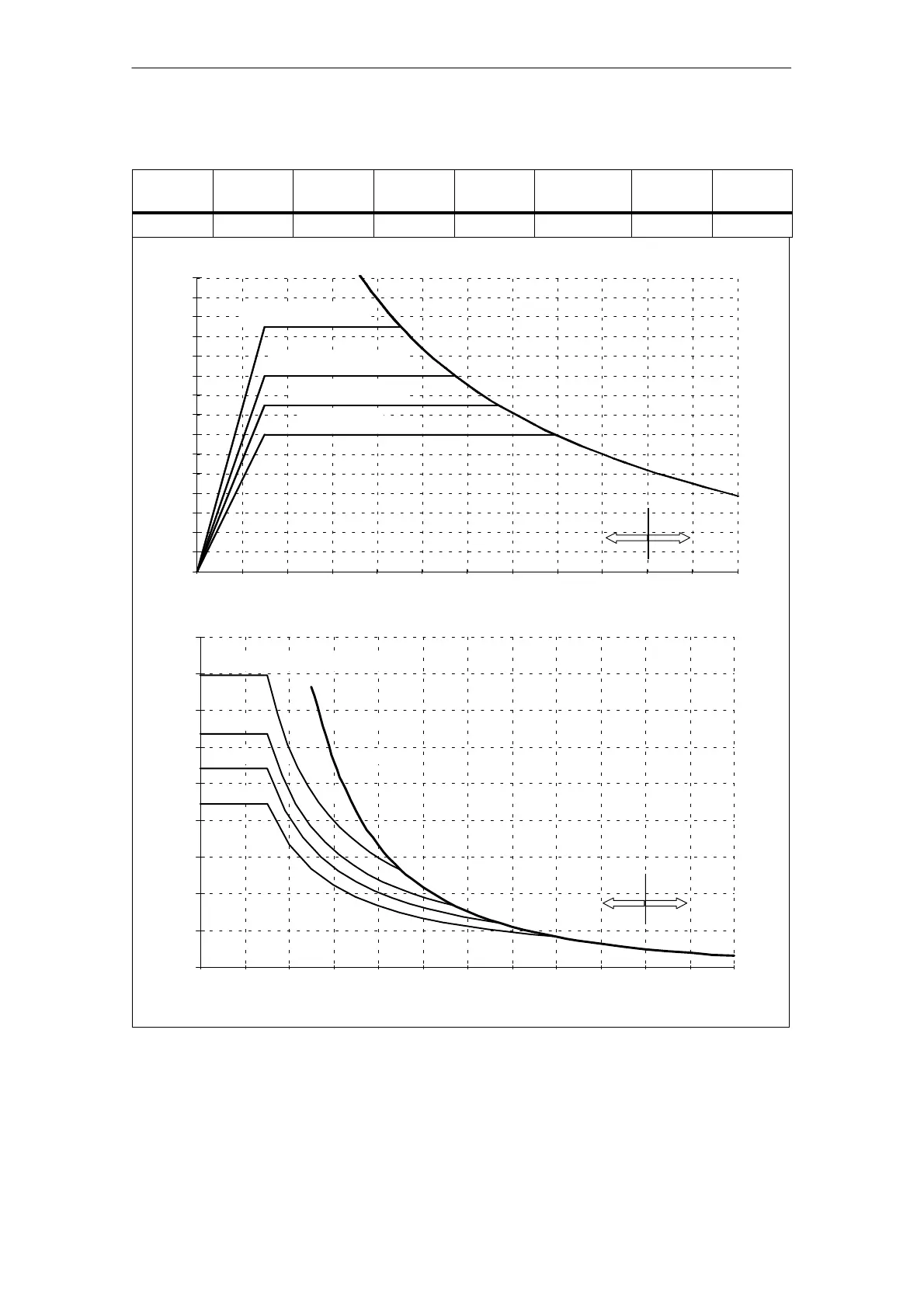

Fig. 2-10 1PH7105-NF-0L
