Siemens Simodrive 1PH7 User Manual

Technical Data and Characteristics
2.2 Power-speed and torque-speed diagrams
1PH7/2-50
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-15 Induction motor 1PH7107-ND-0L
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
6.25 1000 60 17.5 12000 20 0.029 63
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
S6–25% (26.5 A)
S6–40% (23.0 A)
S6–60% (20.5 A)
S1 (17.5 A)
continuous
briefly
0
10
20
30
40
50
60
70
80
90
100
110
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
M [Nm] P [kW]
n [RPM]
n [RPM]
S1 (60 Nm, 17.5 A)
S6–60% (72 Nm, 20.5 A)
S6–40% (84 Nm, 23.0 A)
S6–25% (100 Nm, 26.5 A)
continuous
briefly

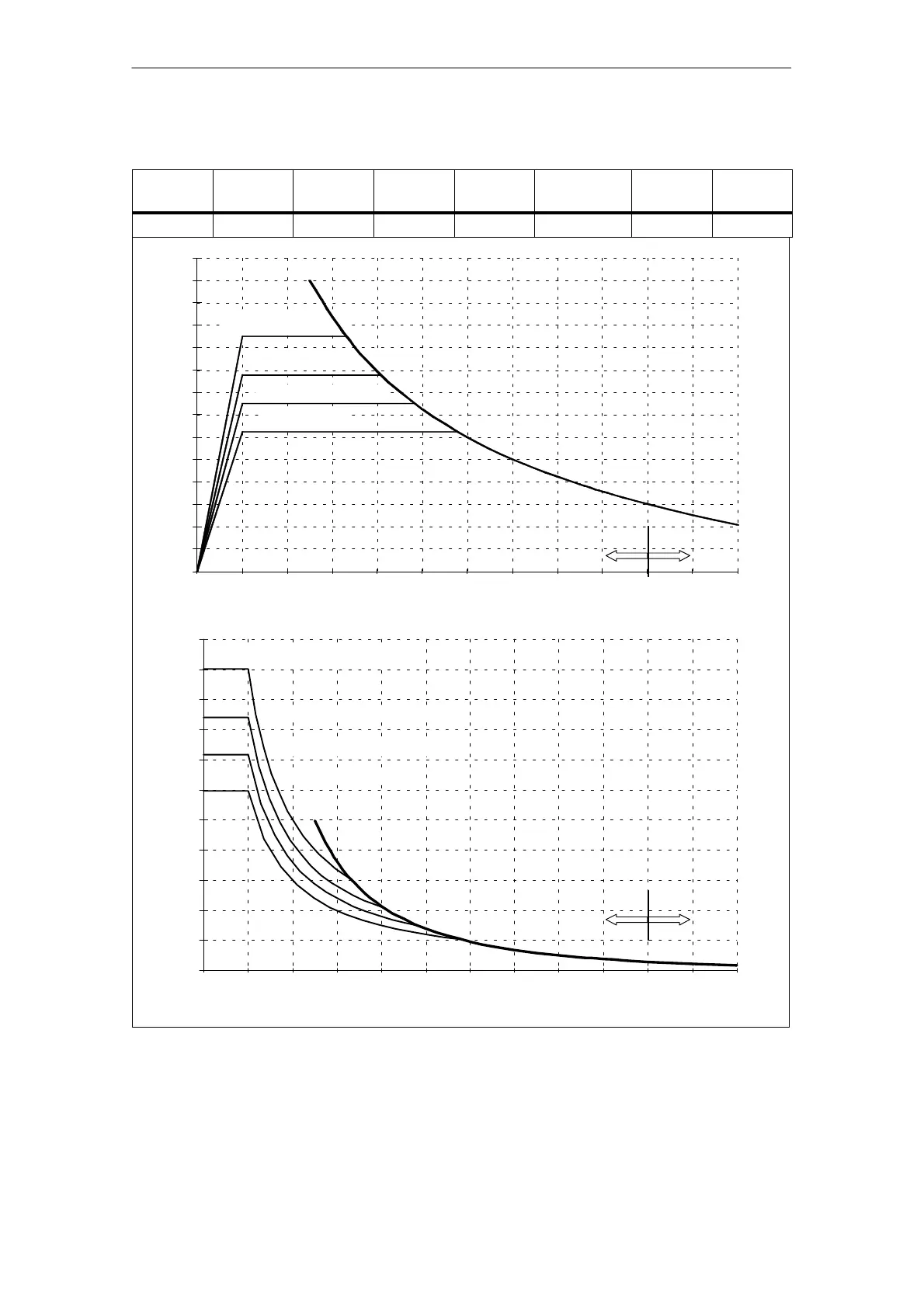

Fig. 2-12 1PH7107-ND-0L
