Siemens Simodrive 1PH7 User Manual

Technical Data and Characteristics
2.2 Power-speed and torque-speed diagrams
1PH7/2-53
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-18 Induction motor 1PH7107-NG
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
10.5 2000 50 26 9000 20 0.029 63
0
2
4
6
8
10
12
14
16
18
20
0 1000 2000 3000 4000 5000 6000 7000 8000 9000
S6-25% (38.0 A)
S6–40% (33.0 A)
S6–60% (28.5 A)
S1 (26.0 A)
continuous
briefly
0
10
20
30
40
50
60
70
80
90
0 1000 2000 3000 4000 5000 6000 7000 8000 9000
M [Nm] P [kW]
n [RPM]
n [RPM]
S1 (50 Nm, 26.0 A)
S6–60% (60 Nm, 28.5 A)
S6–40% (69 Nm, 33.0 A)
S6–25% (84 Nm, 38.0 A)
continuous
briefly

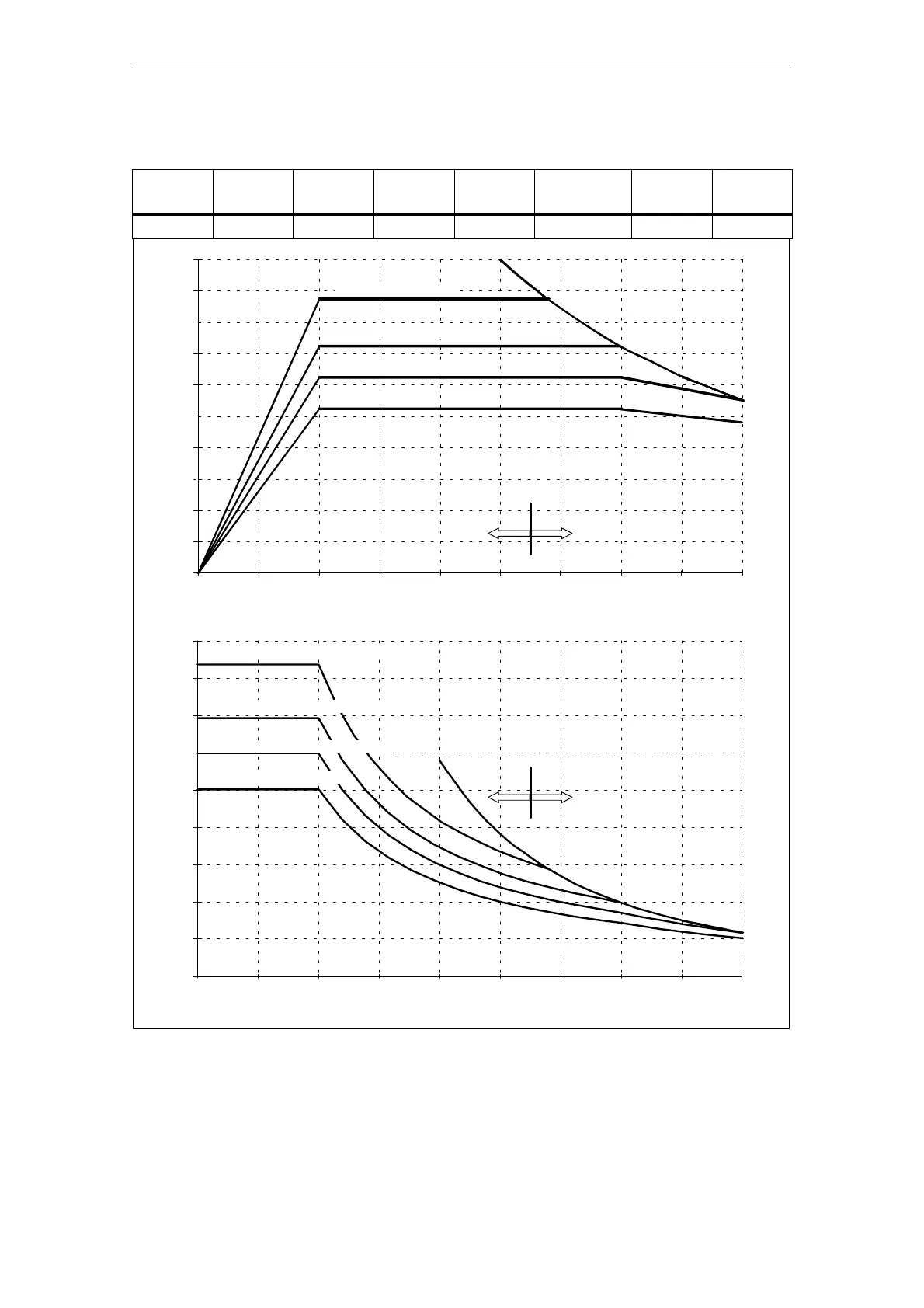

Fig. 2-15 1PH7107-NG
