2.2 Power-speed and torque-speed diagrams
1PH7/2-61
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-26 Induction motor 1PH7133-NG
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
20 2000 95 45 8000 30 0.076 90
0
4
8
12
16
20
24
28
32
36
40
0 1000 2000 3000 4000 5000 6000 7000 8000
S6–25% (73.0 A)
S6–40% (63.0 A)
S6–60% (54.0 A)
S1 (45.0 A)
0
20
40
60
80
100
120
140
160
180
200
0 1000 4000 5000 6000 7000 8000
M [Nm] P [kW]
n [RPM]
n [RPM]
S1 (95 Nm, 45.0 A)
S6–60% (119 Nm, 54.0 A)
S6–40% (143 Nm, 63.0 A)
S6–25% (172 Nm, 73.0 A)
2000 3000
continuous
briefly
continuous
briefly

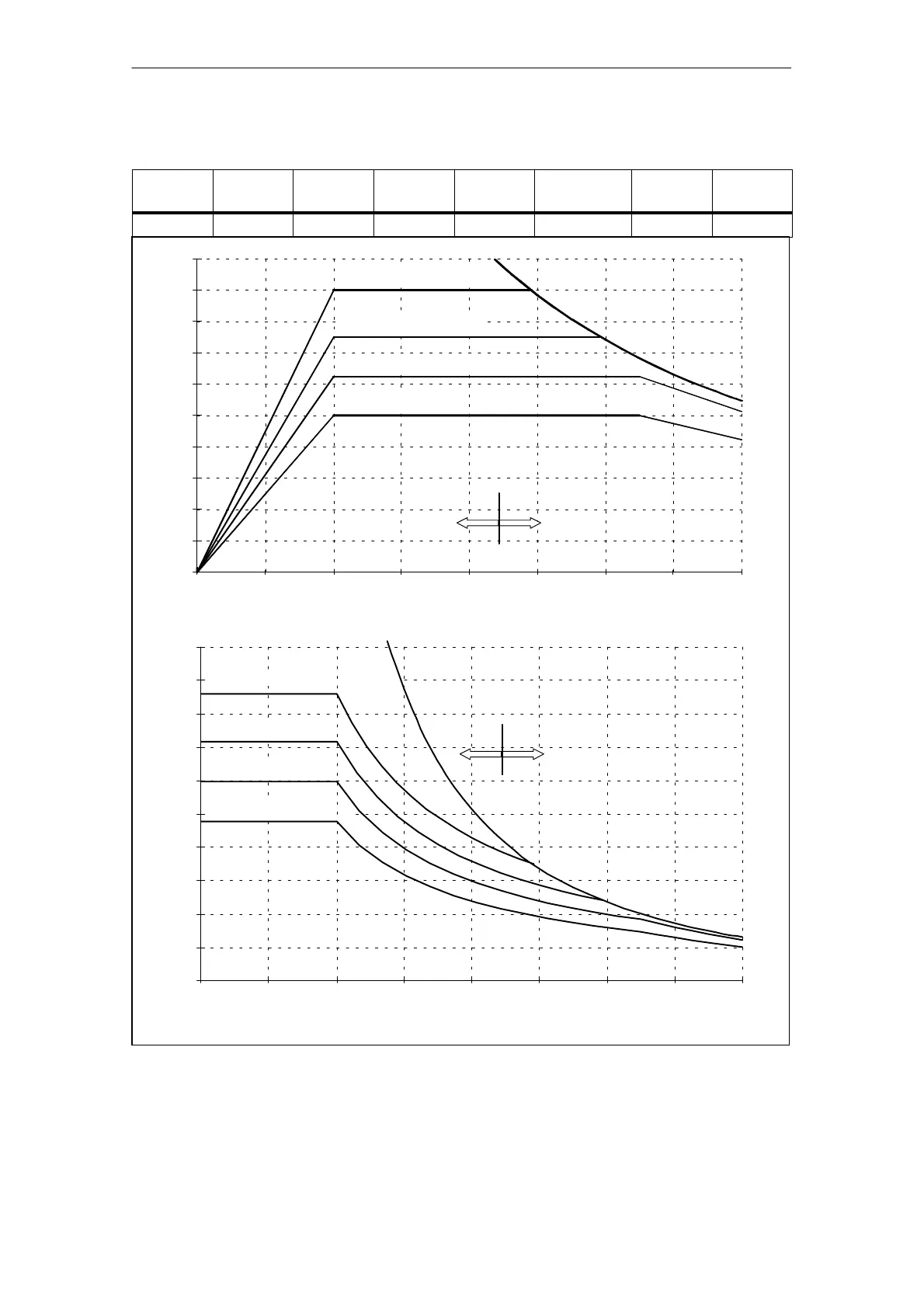

Fig. 2-23 1PH7133-NG
