Siemens Simodrive 1PH7 User Manual

Technical Data and Characteristics
2.2 Power-speed and torque-speed diagrams
1PH7/2-69
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-34 Induction motor 1PH7137-NG
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
28 2000 134 60 8000 30 0.109 130
0
5
10
15
20
25
30
35
40
45
50
55
0 1000 2000 3000 4000 5000 6000 7000 8000
S6–25% (100.0 A)
S6–40% (87.0 A)
S6–60% (73.0 A)
S1 (60.0 A)
continuous
briefly
0
20
40
60
80
100
120
140
160
180
200
220
240
260
280
300
0 1000 2000 3000 4000 5000 6000 7000 8000
M [Nm] P [kW]
n [RPM]
n [RPM]
S1 (134 Nm, 60.0 A)
S6–60% (167 Nm, 73.0 A)
S6–40% (205 Nm, 87.0 A)
S6–25% (239 Nm, 100.0 A)
continuous
briefly

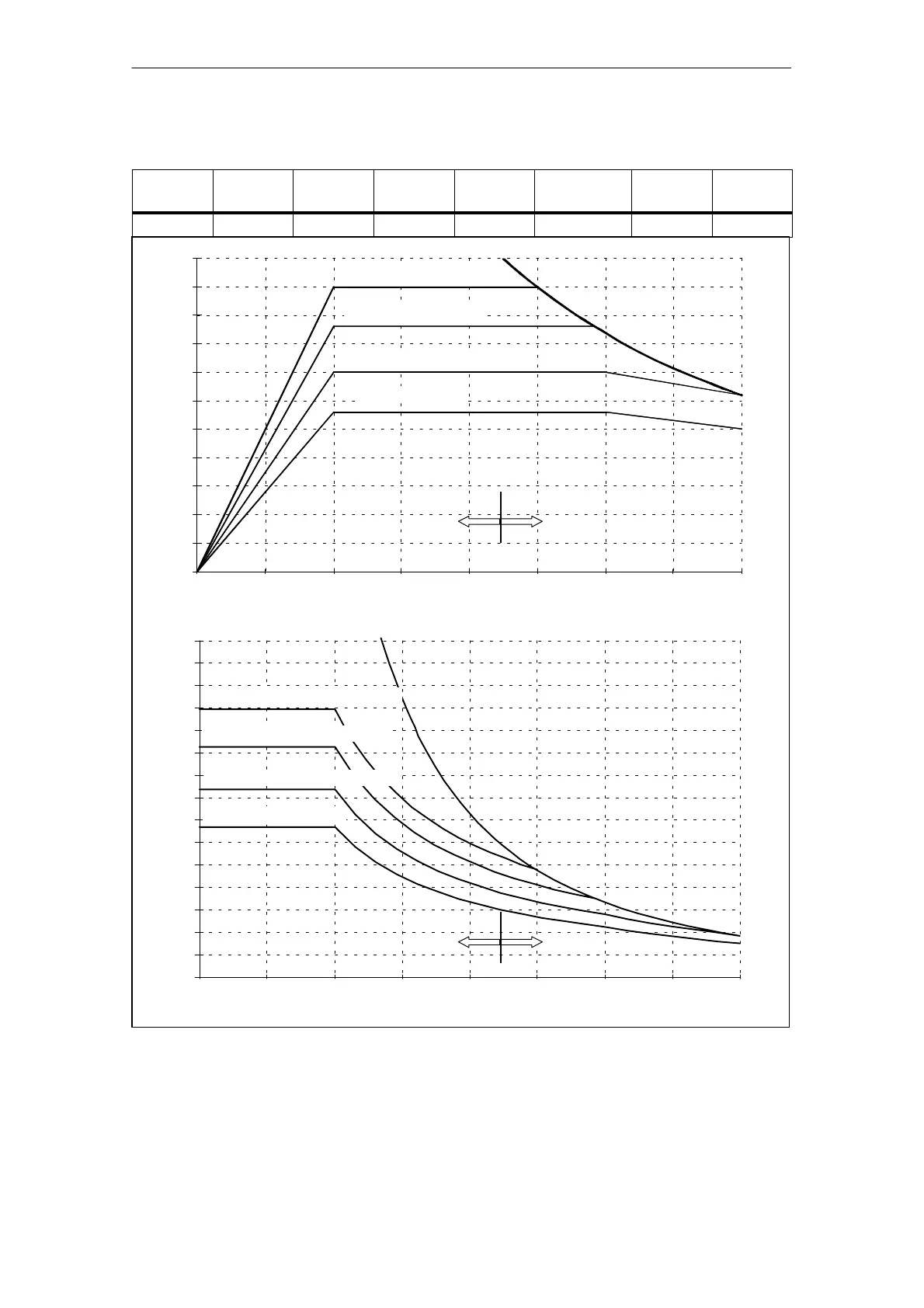

Fig. 2-31 1PH7137-NG
