Siemens Simodrive 1PH7 User Manual

Technical Data and Characteristics
2.2 Power-speed and torque-speed diagrams
1PH7/2-71
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-36 Induction motor 1PH7163-VNB
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
12 500 229 30 6500 35 0.19 180
0
2
4
6
8
10
12
14
16
18
20
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500
S6–40% (42.0 A)
S6–60% (36.0 A)
S1 (30.0 A)
0
40
80
120
160
200
240
280
320
360
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500
M [Nm]
P [kW]
n [RPM]
n [RPM]
S1 (229 Nm, 30.0 A)
S6–60% (286 Nm, 36.0 A)
S6–40% (344 Nm, 42.0 A)
continuous
briefly
continuous
briefly

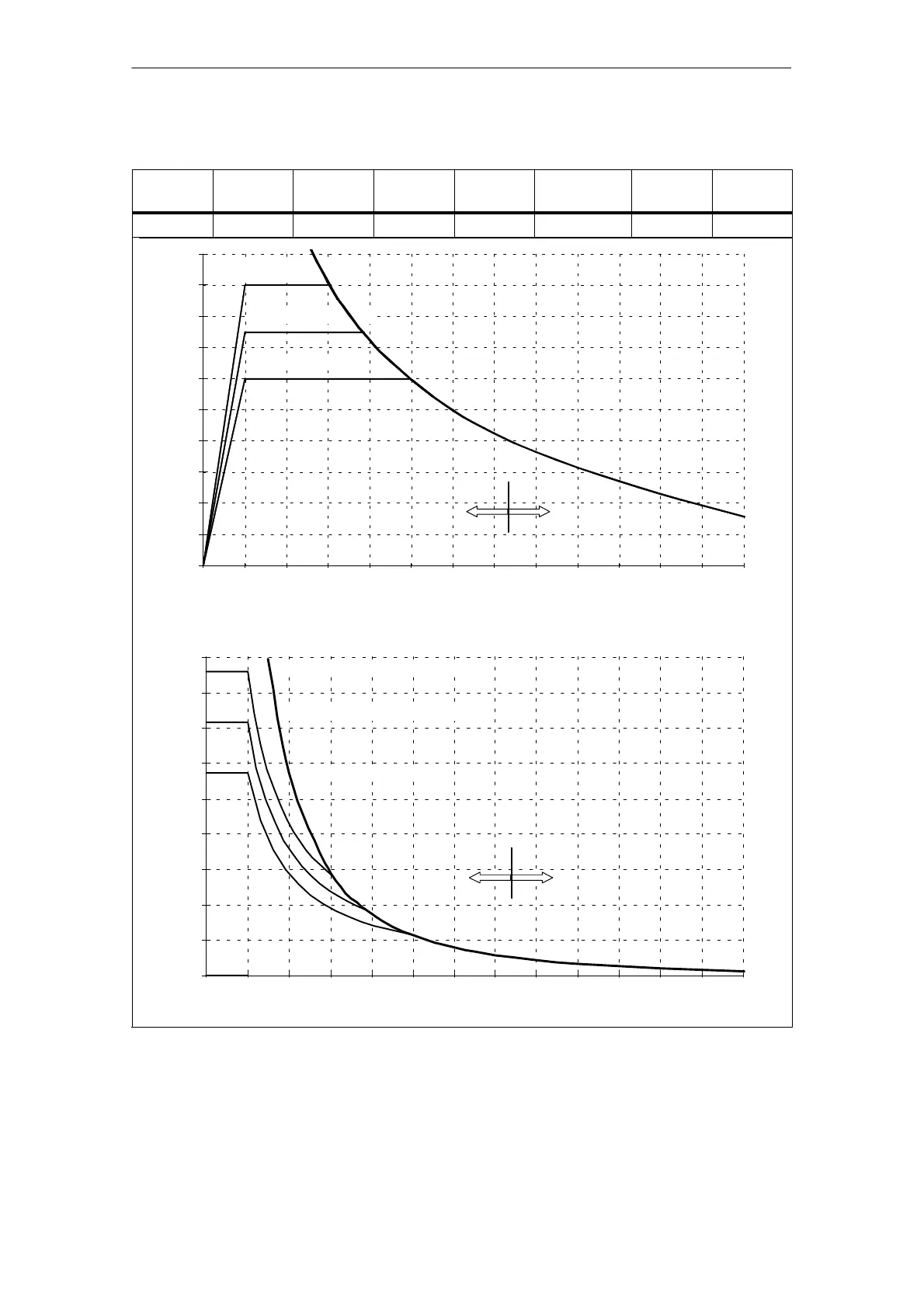

Fig. 2-33 1PH7163-VNB
