Technical Data and Characteristics
2.2 Power-speed and torque-speed diagrams
1PH7/2-76
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-41 Induction motor 1PH7163-NF-0L
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
30 1500 191 72 8000 35 0.19 180
0
5
10
15
20
25
30
35
40
45
50
55
60
0 1000 2000 3000 4000 5000 6000 7000 8000
S6–25% (120.0 A)
S6–40% (102.0 A)
S6–60% (86.0 A)
S1 (72.0 A)
continuous
briefly
0
50
100
150
200
250
300
350
400
0 1000 2000 3000 4000 5000 6000 7000 8000
M [Nm] P [kW]
n [RPM]
n [RPM]
S1 (191 Nm, 72.0 A)
S6–60% (236 Nm, 86.0 A)
S6–40% (286 Nm, 102.0 A)
S6–25% (344 Nm, 120.0 A)
continuous
briefly

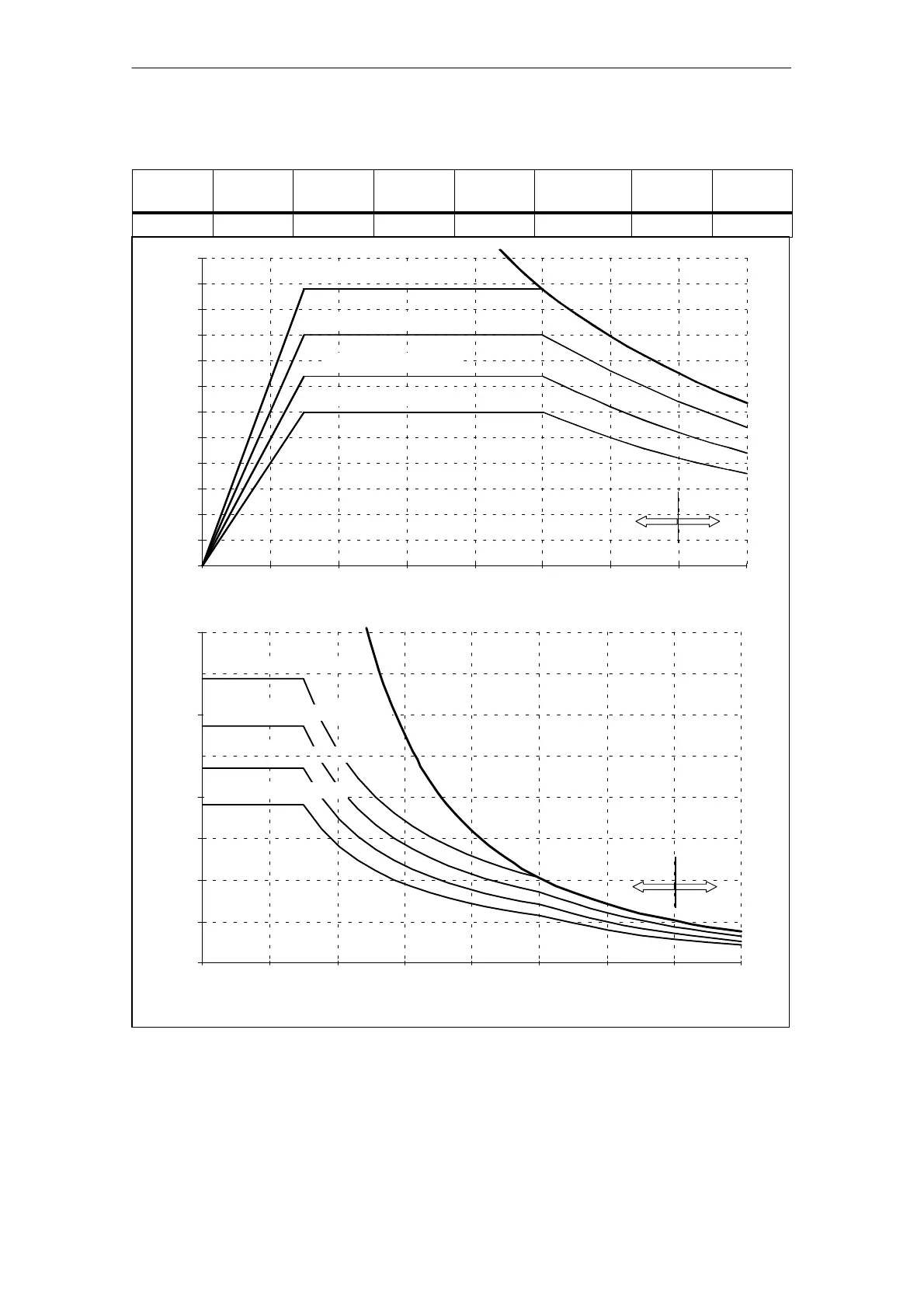

Fig. 2-38 1PH7163-NF-0L
