Siemens Simodrive 1PH7 User Manual

Technical Data and Characteristics
2.2 Power-speed and torque-speed diagrams
1PH7/2-79
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-44 Induction motor 1PH7167-NB4
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
16 500 306 37 6500 35 0.23 228
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500
S6–40% (53.0 A)
S6–60% (44.0 A)
S1 (37.0 A)
0
50
100
150
200
250
300
350
400
450
500
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500
M [Nm] P [kW]
n [RPM]
n [RPM]
S1 (306 Nm, 37.0 A)
S6–60% (372 Nm, 44.0 A)
S6–40% (458 Nm, 53.0 A)
continuous
briefly
continuous
briefly

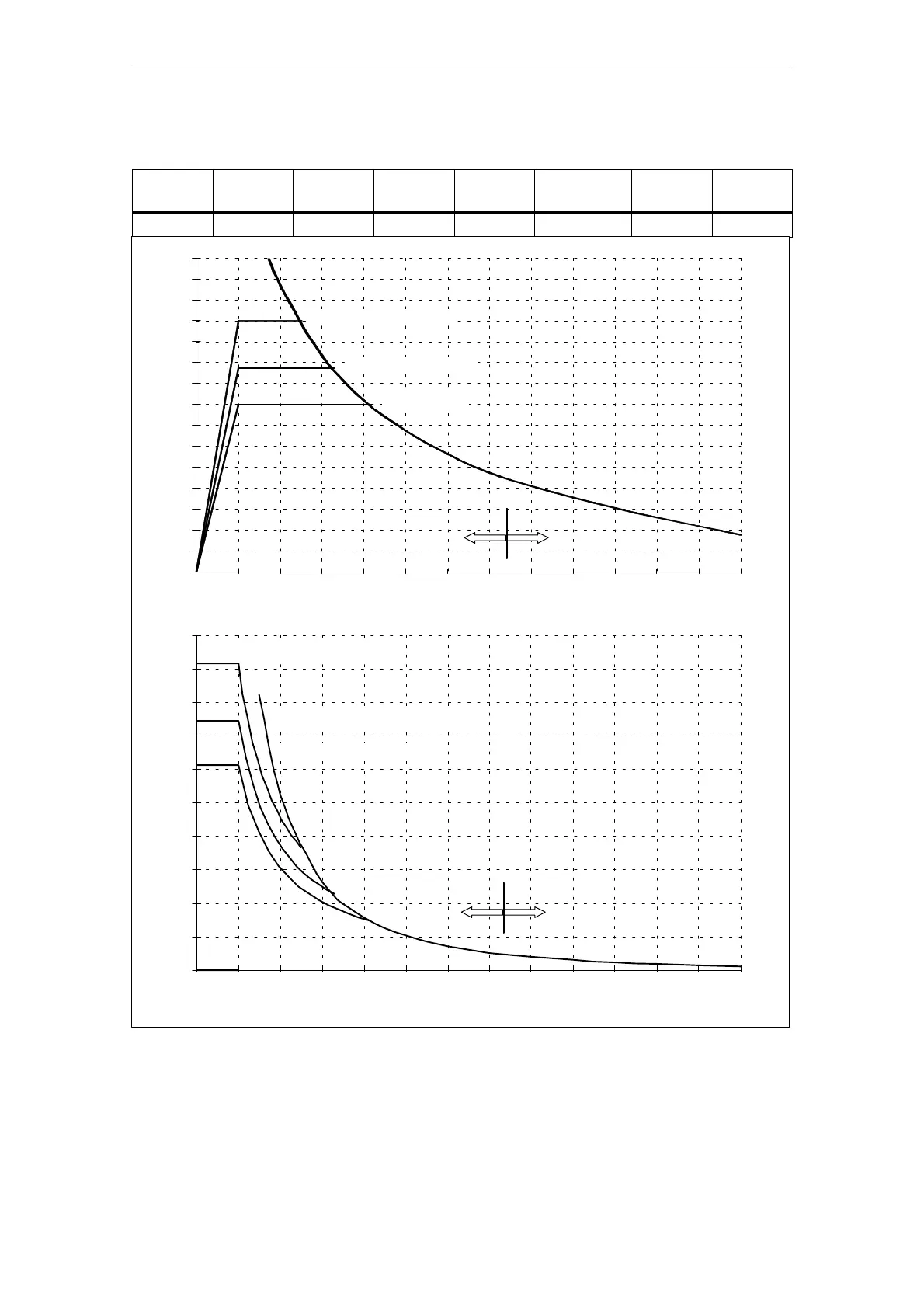

Fig. 2-41 1PH7167-NB4
