AL S
08.95
AL S/2-1
Siemens AG 1997 All Rights reserved 6SN1197–0AA20
SIMODRIVE 611 (PJ)
Mechanical data
2.1 Definitions
1FT/1FK motors have type of construction IMB5. They can be mounted corre-
sponding to types of construction IM V1 or IM V3 without having to provide any
special information when ordering.
For types of construction IM B14, IM V18 and IM V19, threaded glands are pro-
vided in mounting holes.
IM B5
IM B14
IM V1
IM V18
IM V3
IM V19

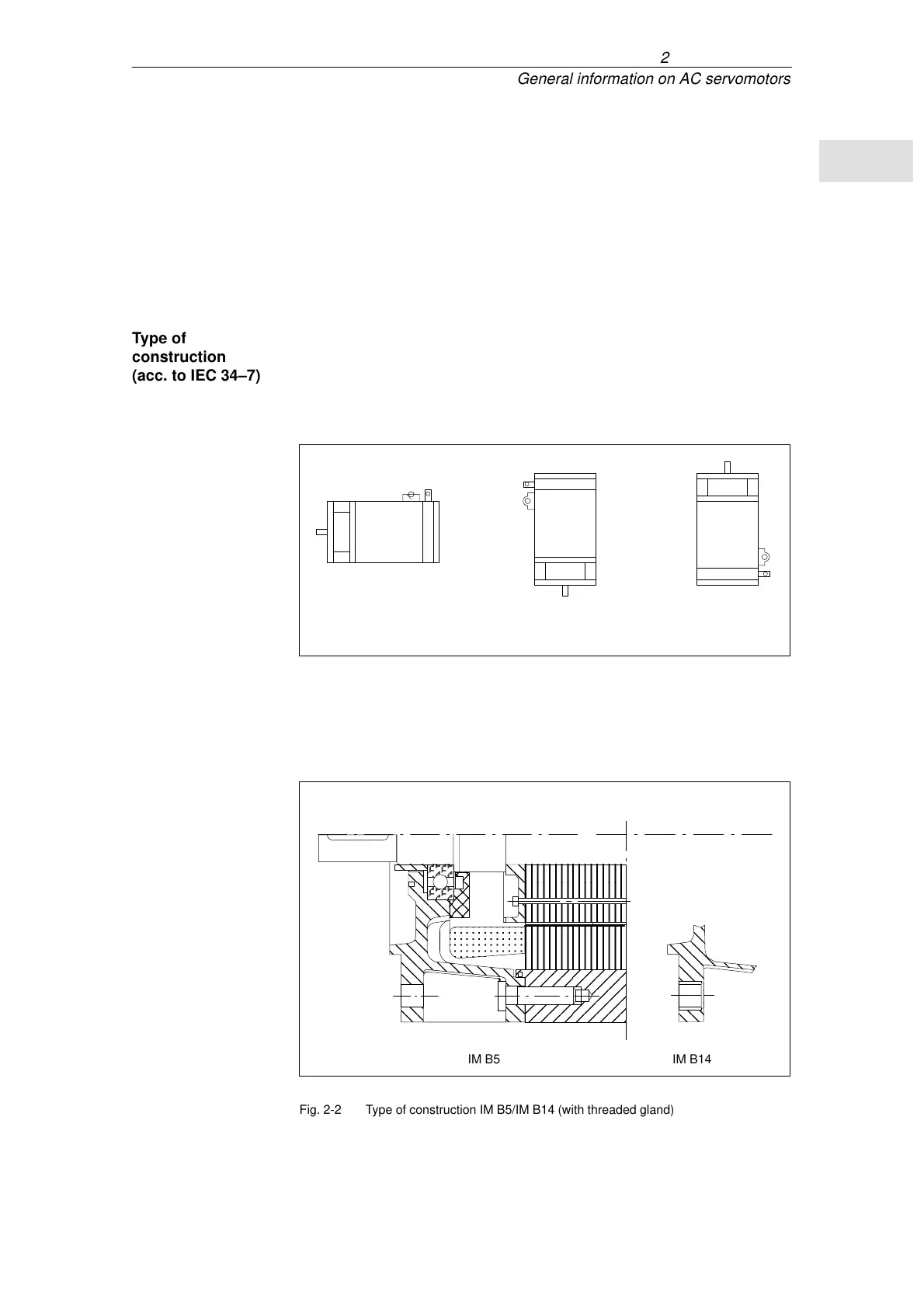

Fig. 2-1 Type of construction
When engineering motors with type of construction IM V3 and IM V19, please
observe the permissible axial forces (force due to the weight of the rotor) and
especially on the necessary degree of protection.
ÓÓÓÓÓÓ
ÓÓÓÓÓÓ
ÓÓÓÓÓÓ
ÓÓÓÓÓÓ
ÓÓÓÓÓÓ
ÓÓÓÓÓÓ
ÓÓÓÓÓÓ
ÓÓÓÓÓ
ÓÓÓÓÓ
ÓÓÓÓÓ
ÓÓÓÓÓ
ÓÓÓÓÓ
IM B5 IM B14
Fig. 2-2 Type of construction IM B5/IM B14 (with threaded gland)
Type of
construction
(acc. to IEC 34–7)
General information on AC servomotors
2 Mechanical data
2
