AL S
08.95
AL S/4-3
Siemens AG 1997 All Rights reserved 6SN1197–0AA20
SIMODRIVE 611 (PJ)

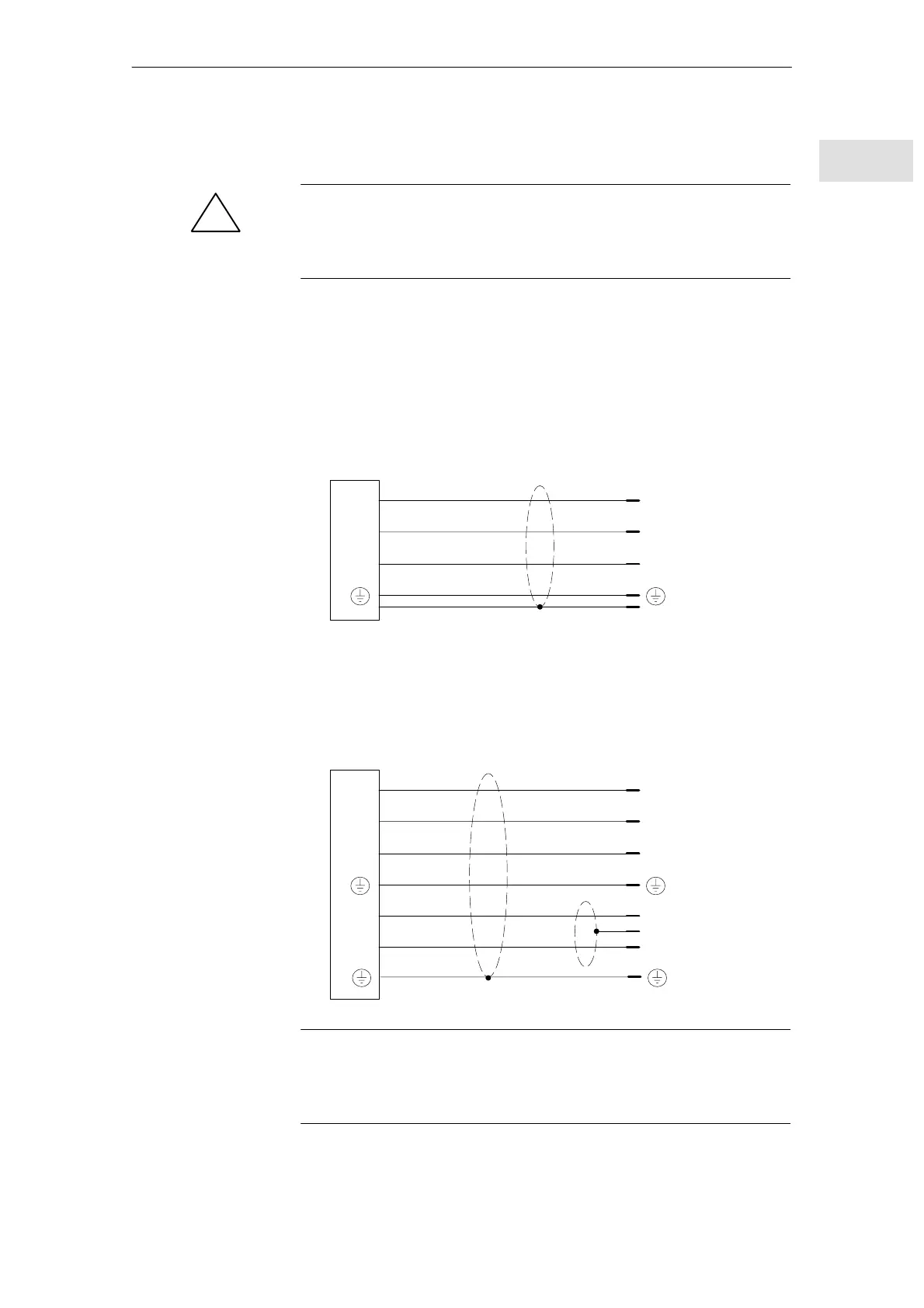

4.3 Cable versions
!
Caution
Observe the current drawn by the motor in your application! Adequately dimen-
sion the connecting cables corresponding to VDE 0100 Part 430. VDE 0113
Part 1, VDE 0298 Part 4
S without brake cables
Order designations: 6FXV002–5CAVV–VVV0 with overall screen
6FXV002–5AAVV–VVV0 without overall screen
1/U
2/V
6/W
V
U
W
Servomotor
Connector, sizes 1; 1.5; 2; 3
SIMODRIVE
Conductor end sleeves
acc. to DIN 46228
S with brake cables
Order designation: 6FXV002–5DAVV–VVV0 with overall screen
6FXV002–5BAVV–VVV0 without overall screen
1/U
2/V
6/W
4/+
5/–
V
U
W
Servomotor
Connectors, sizes 1; 1.5; 2; 3
SIMODRIVE
Conductor end sleeves
acc. to DIN 46228
Br+
Br–
Screen
Note
S Performance– or Standard cables are available.
S The technical data is provided in Catalog NCZ.
Pre–assembled
power cable
General information on AC servomotors
01.98 4.3 Cable versions
