1FT5
08.95
1FT5/1-17
Siemens AG 1997 All Rights reserved 6SN1197–0AA20
SIMODRIVE 611 (PJ)

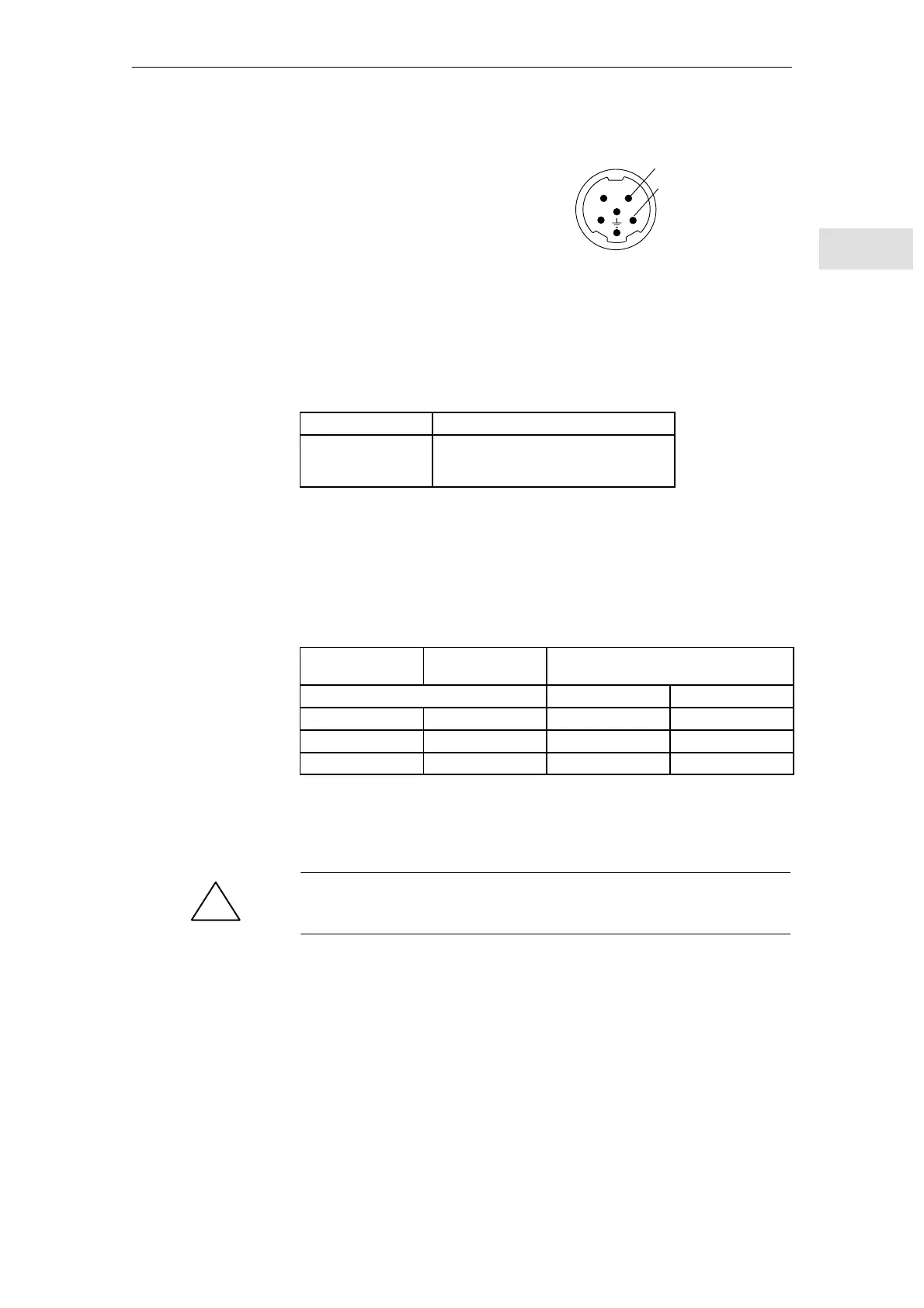

Fan connection (shaft height 71)
Pin assignment:
L1
N
1
2
4
5
6
The following minimum clearances to customer–specific mounted components
and the air discharge opening must be maintained:
Table 1-17 Minimum clearance to customer–specific compo-
nents
Shaft height [mm] Minimum clearance [mm]
71
100
132
20
30
60
Technical explanations and ordering address, refer to Chapter 2.2 General in-
formation AL S.
Table 1-18 Allocating the drive out couplings to the motors
Shaft height
Rotex GS
Type
Torques which can be transmitted with
98 Sh–A–GS pinion
T
KN
[Nm] T
Kmax
[Nm]
63 24/28 60 120
71 28/32 160 320
100 38/45 325 650
It may be necessary to use other pinions (e.g. Shore hardness 80 Sh–A). This
must be optimally harmonized in conjunction with the mounted mechanical sys-
tem.
!
Warning
The accelerating torque may not exceed the clamping torque!
Mounting
Output coupling
1FT5 AC servomotors
1.2 Functions and options
