1FT5
08.95
1FT5/3-41
 Siemens AG 1997 All Rights reserved 6SN1197–0AA20
SIMODRIVE 611 (PJ)

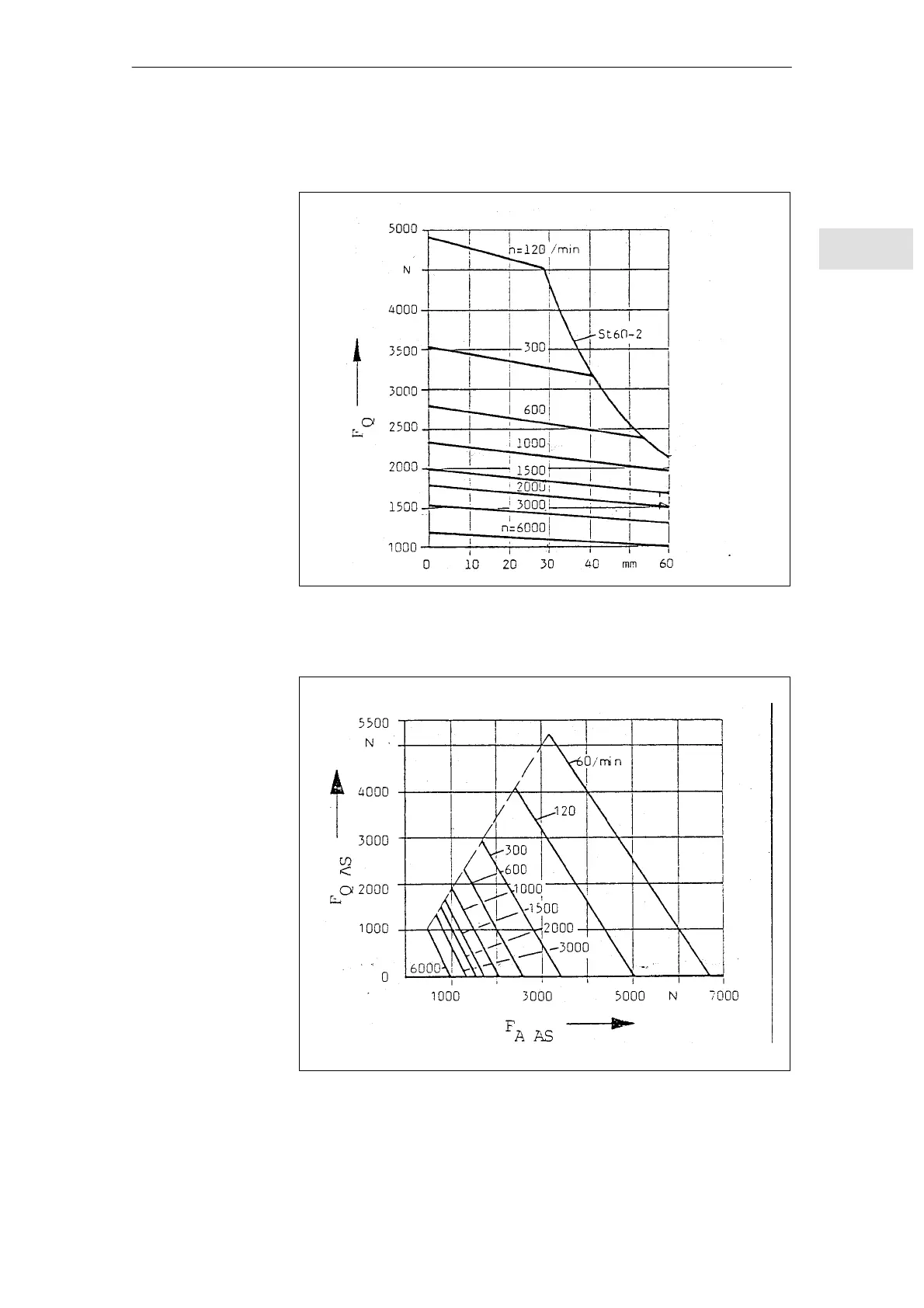

Cantilever force F
Q
at distance x from the shaft shoulder for a nominal bearing
lifetime of 20,000 hours.
Permissible axial force as a function of the cantilever force.
Cantilever force
1FT5102 to
1FT5104
Axial force
1FT5102 to
1FT5104
1FT5 AC servomotors
3.2 Cantilever/axial force dia
g
rams
