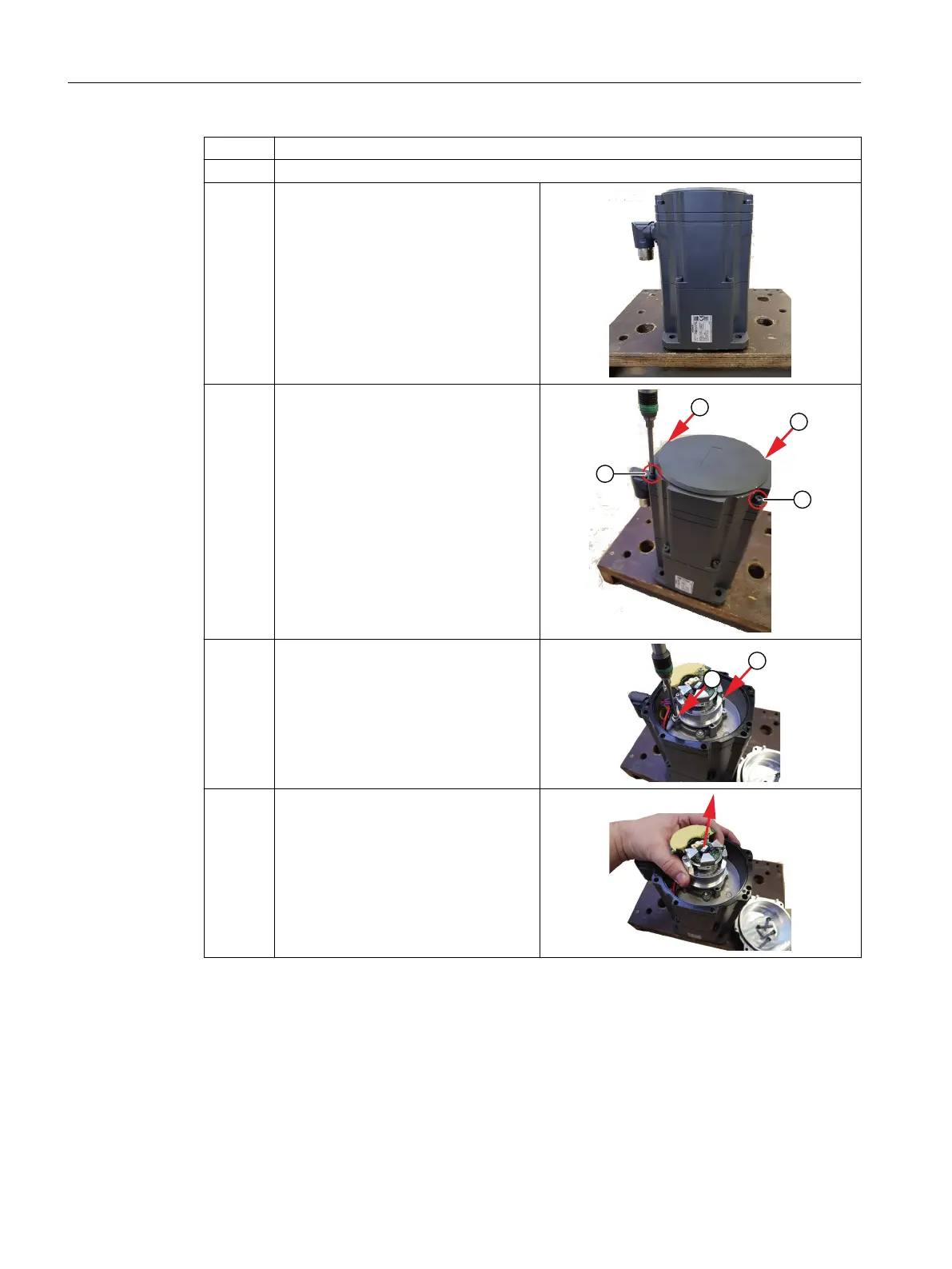

4 Release the 4 xing screws at the motor ange.
5 Remove the motor.
6 Set the motor down in a vertical position
on a suitable base.
7 Release the 4 xing screws at the motor
NDE ① and remove the cover.
8 Release the two xing screws of the en‐
coder ② and remove both screws.
9 Pull the complete encoder upward.
Observe the encoder cable that is still
connected.
Description
2.4 Encoder replacement variants
Encoder replacement for SIMOTICS S-1FK2 and S-1FT2
30 Service Manual, 07/2022, A5E52211160B AA
