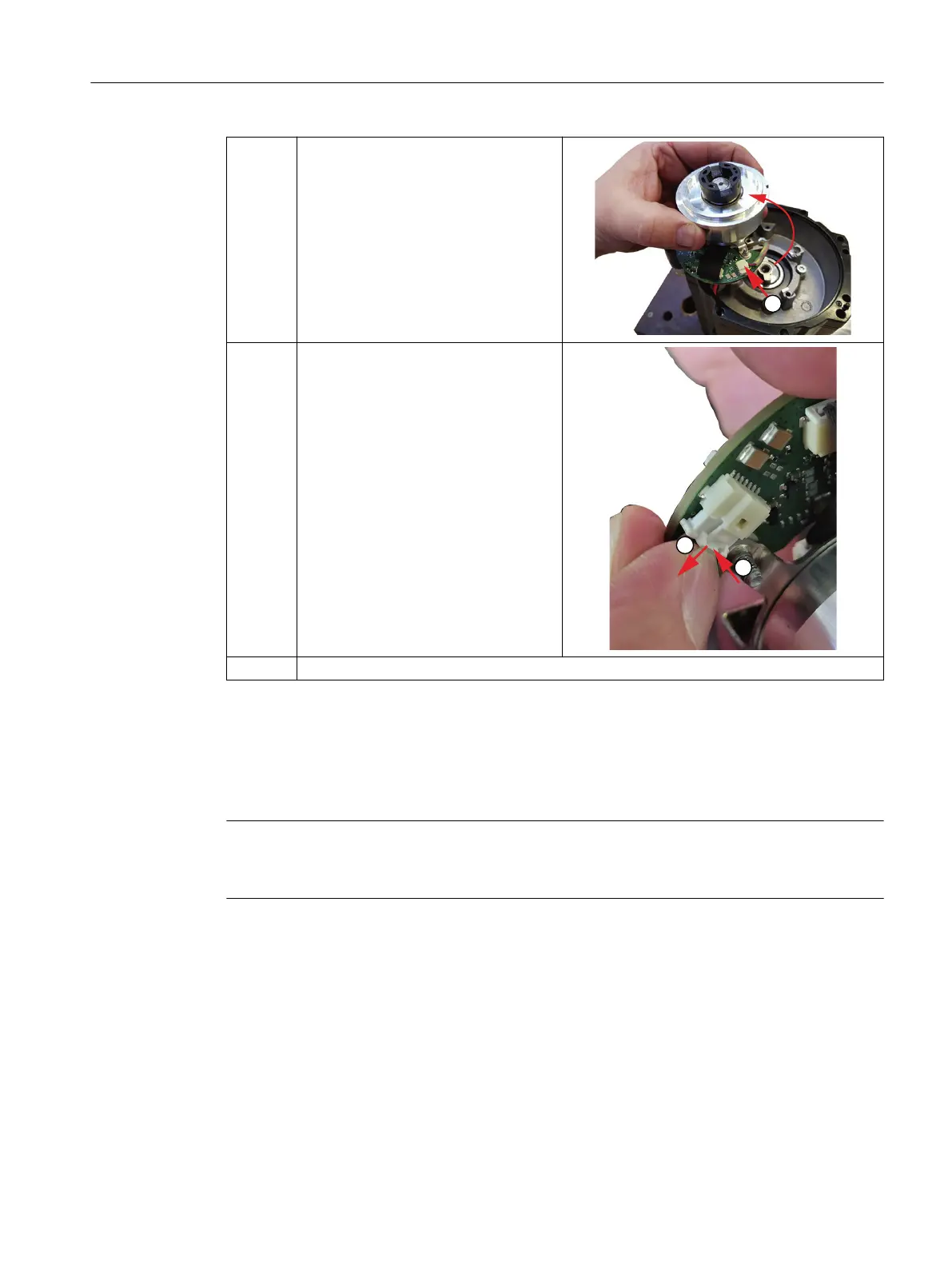

10 Turn the encoder upward.
Do not pull on the connected encoder
cable ③.
11 Release the signal connector using your
ngernail ① and withdraw the connec‐
tor of the encoder cable ②.
12 Dispose of the defective encoder in compliance with local regulations.
❒
Installing the new encoder
Procedure
Note
Coupling element
When replacing the encoder, you must always install the new coupling element provided.
Description
2.4 Encoder replacement variants
Encoder replacement for SIMOTICS S-1FK2 and S-1FT2
Service Manual, 07/2022, A5E52211160B AA 31
