Description of the motors
2.6 Mounting and options
1FK7 G2 synchronous motors
Operating Instructions, 05/2021, A5E50907562B AA
39
Incremental signals A/B track
Zero pulse/reference signal
Incremental signals C/D track
Zero pulse/reference signal

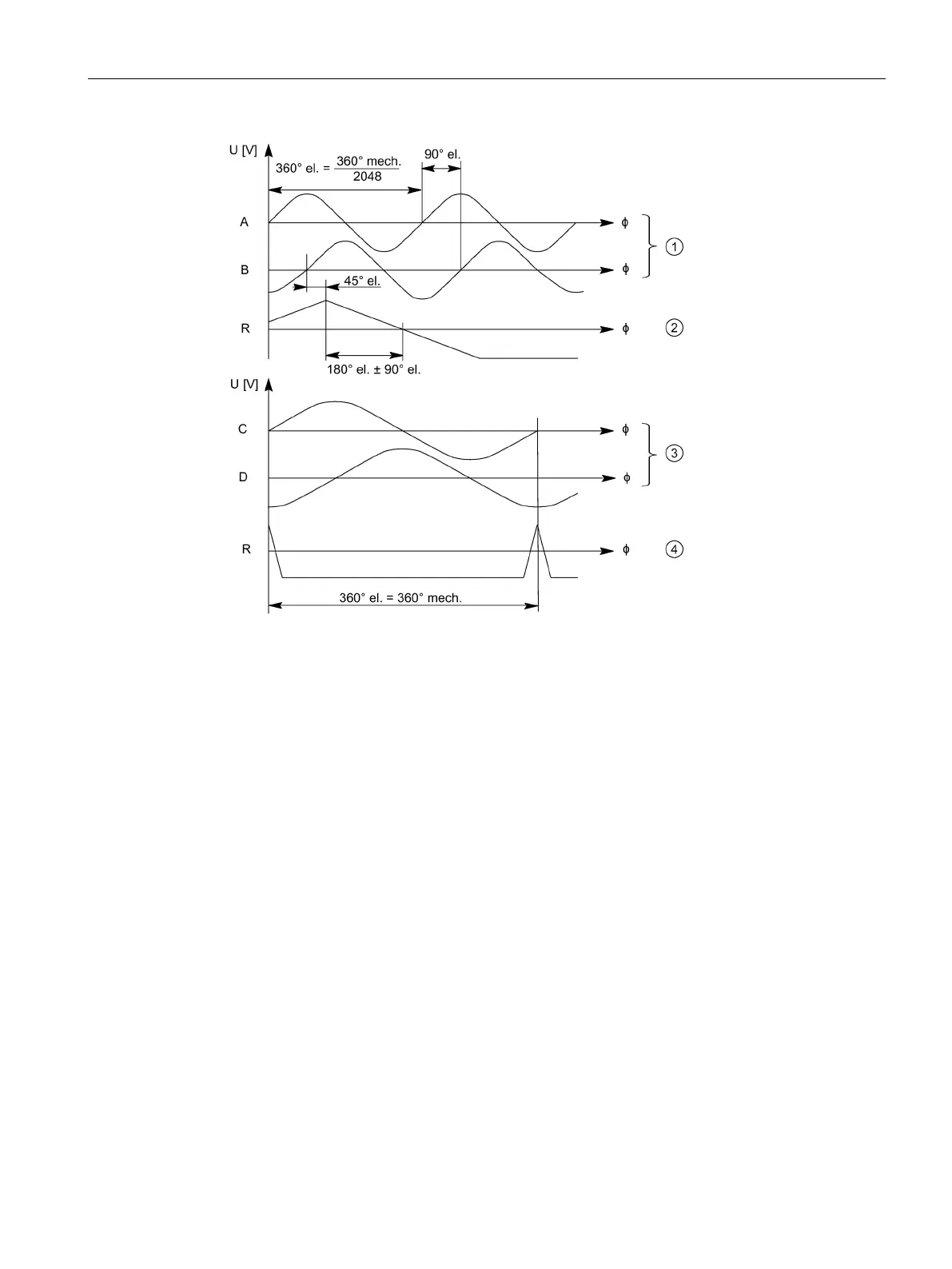

Figure 2-5 Signal sequence and assignment for encoder IC2048S/R without DRIVE-CLiQ interface for
a positive direction of rotation
Information on the encoder connection, pin assignment and cables is provided in Chapter
"Signal connection (Page 87).
