Siemens SIMOTICS S-1FK7 - Connecting the RJ45 DRIVE-Cliq Connector

Connecting
5.4 System integration
1FK7 G2 synchronous motors
Operating Instructions, 05/2021, A5E50907562B AA
89
5.4.6.2 Connecting the RJ45 DRIVE-CLiQ connector

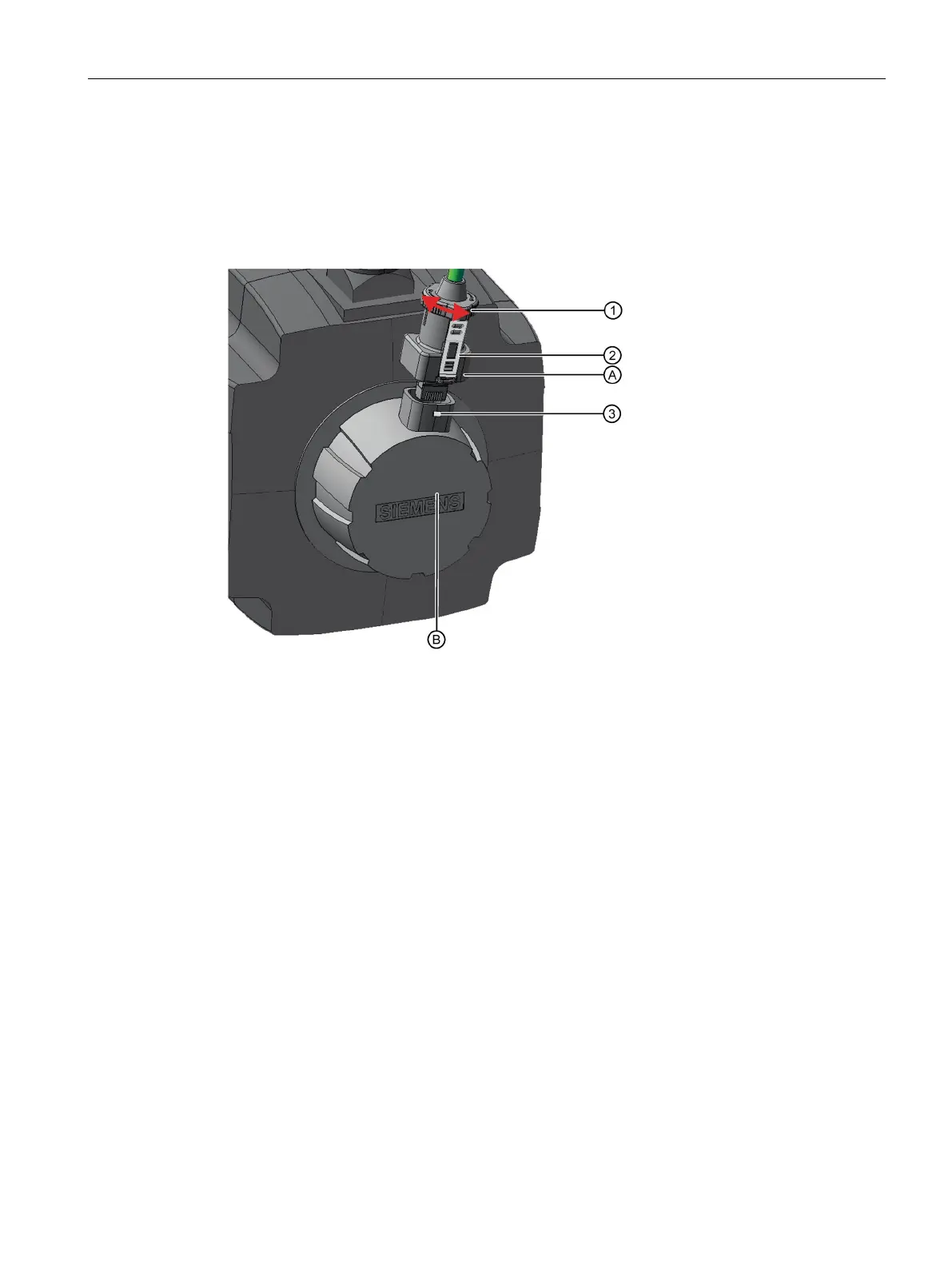

Design of the DRIVE-CLiQ connection system with RJ45 connector
The DRIVE-CLiQ connection method with the RJ45 connector has the following components:
A
DRIVE-CLiQ connector with RJ45Plus
B
DRIVE-CLiQ socket with RJ45plus
1
Rotatable locking ring
2
Tabs (2, opposite each other)
3
Latches (2, opposite each other)
