Mounting
4.4 Mounting conditions
1FK7 G2 synchronous motors
60 Operating Instructions, 05/2021, A5E50907562B AA
Hair, clothing and other objects can be drawn in
For example, hair, neckties, loose objects can be sucked into the air intake and cause death
or serious injury.
• Take measures to prevent objects from being sucked in, e.g.
– Wear a head covering or hair net,
– Remove any neckties or similar,
– Keep the air intake area free.
Ensure that the motor is only operated when the external fan is running.
Operate the fan only with normal ambient air.
The direction of air flow is from the non-drive end (NDE) to the drive end (DE).
Deposits of contaminated air can impair the heat dissipation of the motor or block the cooling
duct and overheat the motor.
• Position the motor so that the cooling air can freely flow in and out.
• Make sure that no heated discharged air is drawn in.
• Maintain the minimum clearance between the air intake and discharge openings and
adjacent components (see the "Minimum clearance" figure).
• To remove the fan cover and connect the signal connector when the motor is installed,
maintain a minimum clearance of 125 mm.
A minimum clearance of 30 mm applies for SH 80

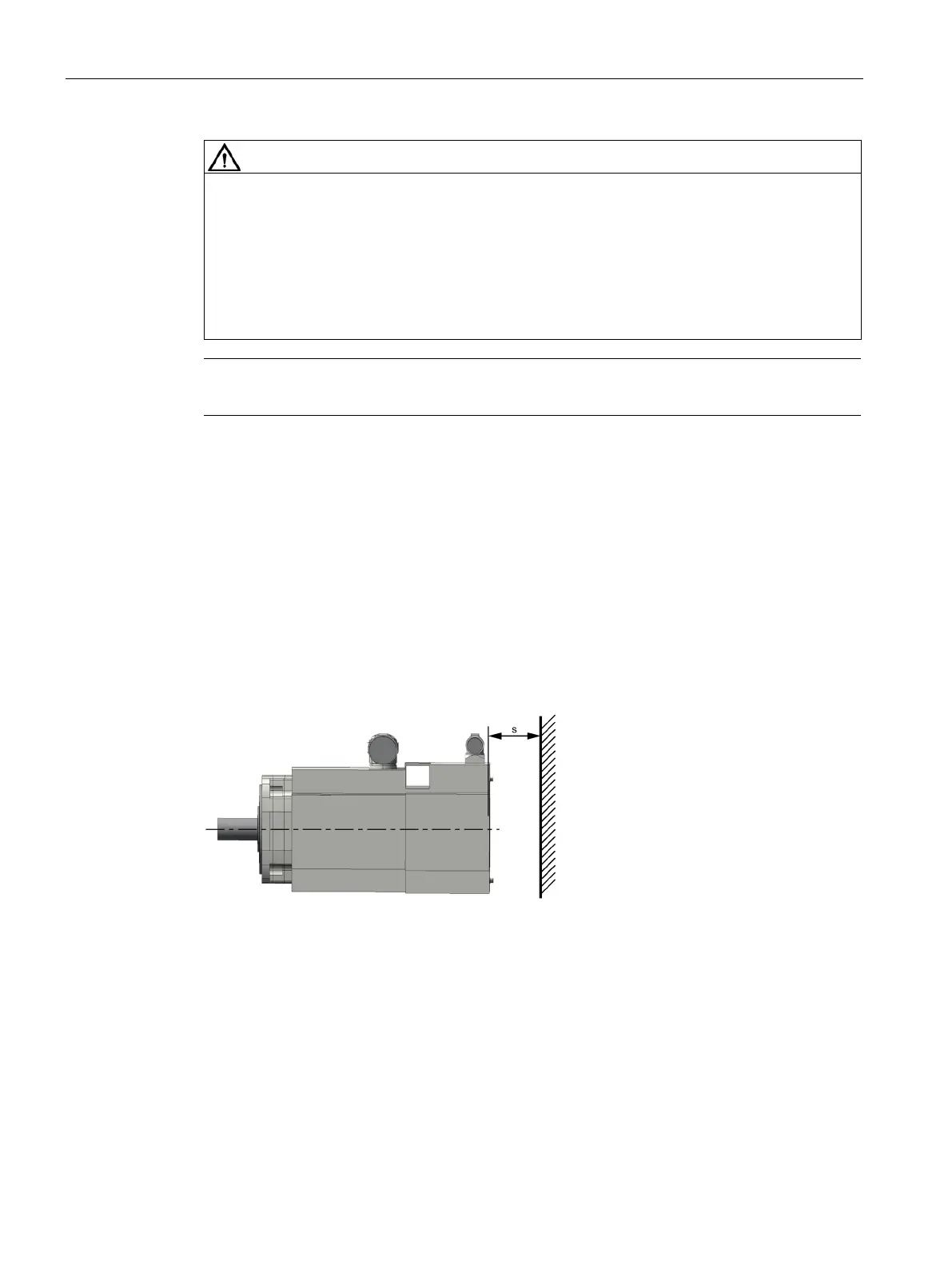

Figure 4-3 Minimum clearance s
