Connecting
5.4 System integration
1FK7 G2 synchronous motors
86 Operating Instructions, 05/2021, A5E50907562B AA
3. Push the power connector onto the motor connecting socket as far as it will go.

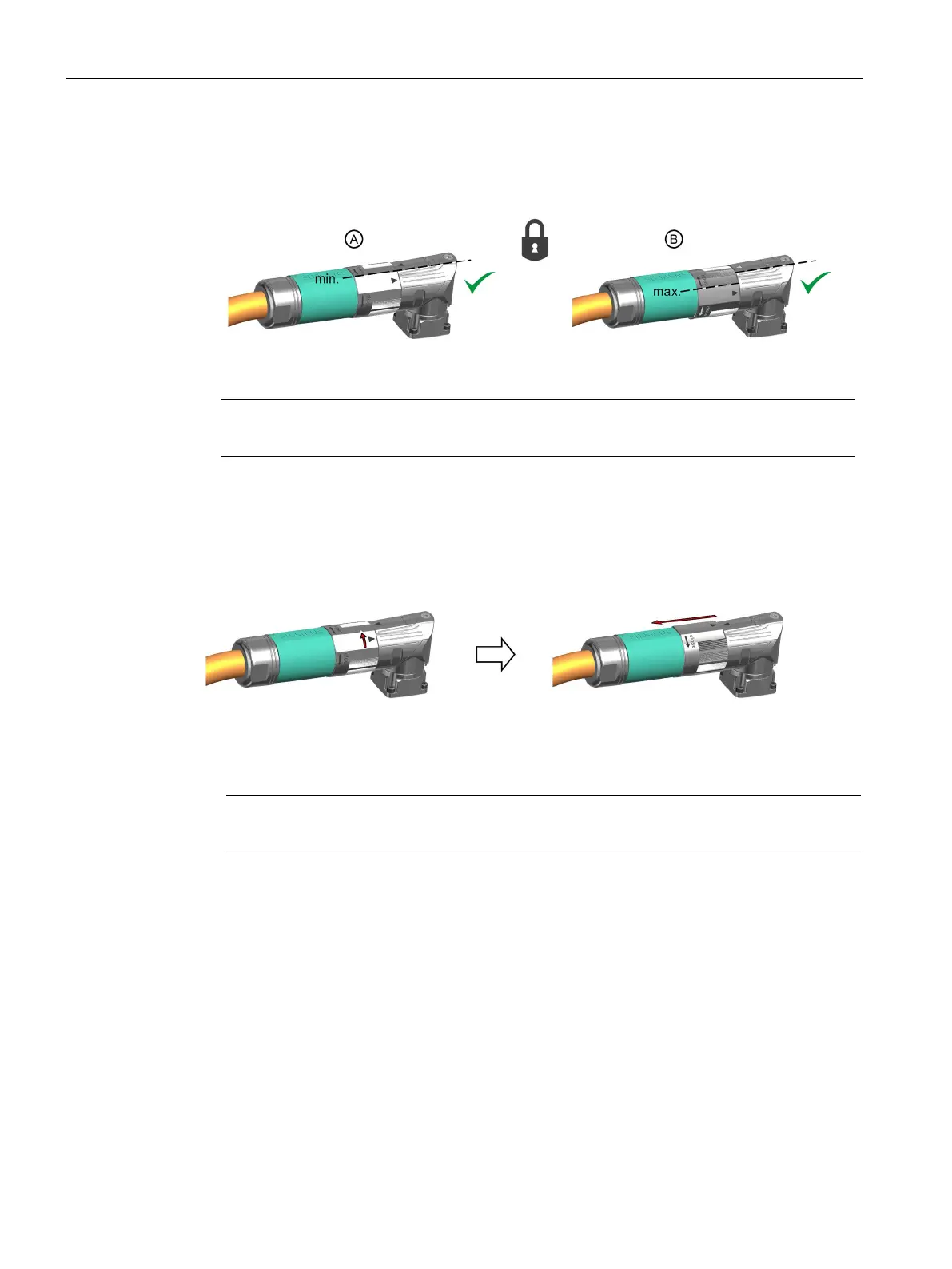

4. Turn the union nut by hand in the direction of "close" by at least 45° (position A) or up to the
end stop (position B)
Maximum locking up to the end stop
Note
A secure connection is only guaranteed from position A onward.
You have established a secure connection.
Releasing a SPEED-CONNECT connection
Procedure
1. Turn the union nut of the SPEED-CONNECT connector in the direction of "open" to the end
stop. The triangles on the top of the connectors must be opposite one another.
2. Withdraw the connector.
Pull out the connector at the connector itself, do not pull on the cable.
You have terminated the SPEED-CONNECT connection.
See also
Connection notes for motors with M03 and M39 (Page 73)
