Unscrew and open the socket connector completely to avoid damaging the pin contacts.
Note
Rotating the connectors
• Do not exceed the permissible range of rotation.
• To ensure the degree of protection, do not rotate more than 10 times.
Ability of the power connector, signal connector and fan connector to be rotated

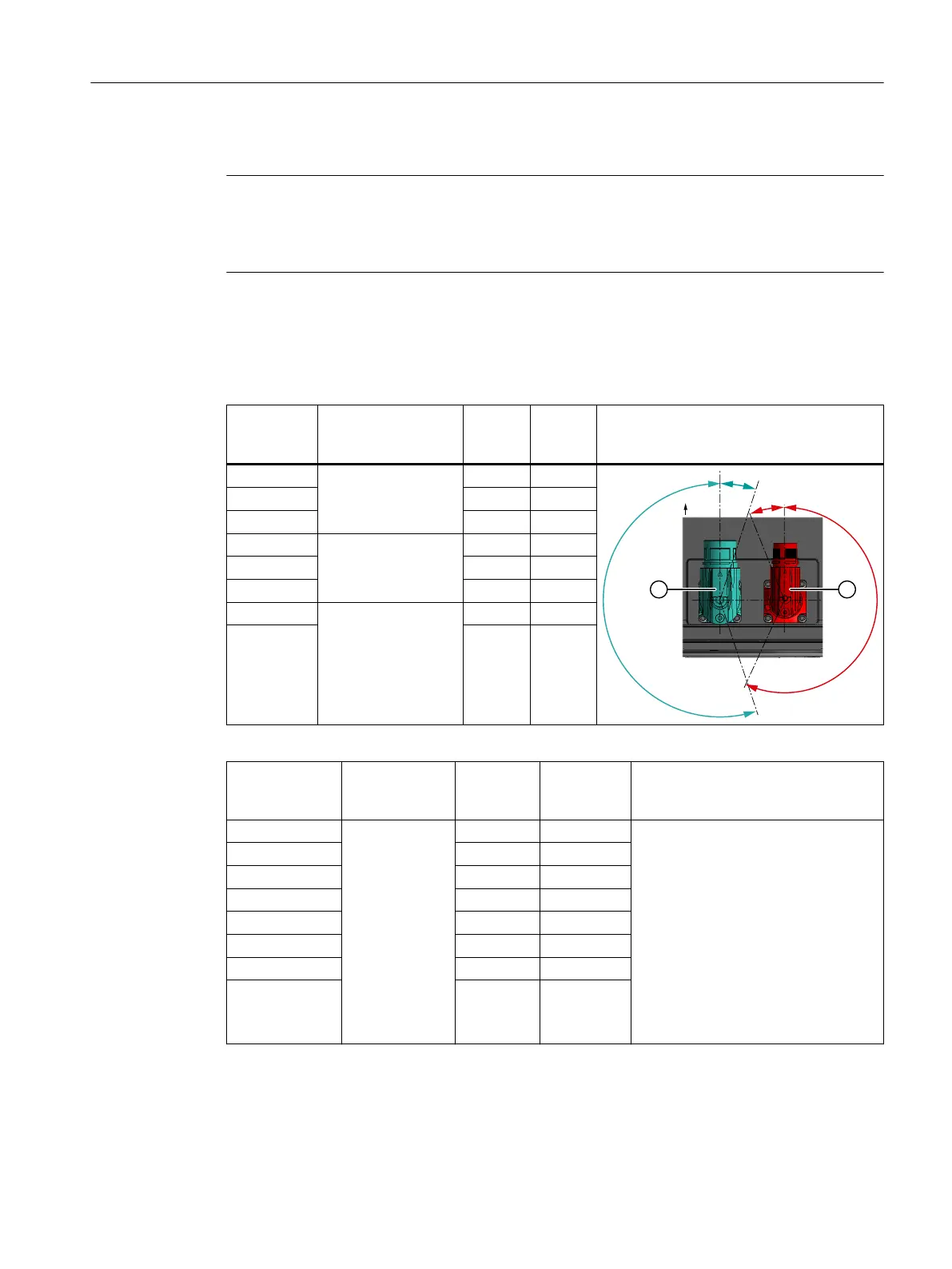

Table 7-3 Rotation range of the power connector ①
Motor Connector size of
the power connec‐
tor ①
Angle α Angle α' Drawing
1F☐2☐03 M17 205 29
1F☐2☐04 205 25
1F☐2☐05 228 35
1F☐2☐06 M23 222 40
1F☐2☐08 222 46
1F☐2☐10 222 55
1F☐2☐08 M40 195 48
1F☐2☐10 228 48
Motor Connector size
of the signal
connector ②
Angle β Angle β' Drawing
1F☐2☐03
M17
209 25 See table "Rotation range of the power
connector"
1F☐2☐04 205 25
1F☐2☐05 215 48
1F☐2☐06 215 41
1F☐2☐08*) 215 46
1F☐2☐08**) 205 20
1F☐2☐10*) 215 57
1F☐2☐10**) 210 48
*) For power connector M23
**) For power connector M40
Connecting
7.3System integration
SIMOTICS S-1FT2 synchronous motors for SINAMICS S120
Operating Instructions, 12/2023, A5E50610821B AF 81
