7.3.1.4 Routing cables in a damp environment
Description
If you are operating the motor in environments in which moisture can arise, follow the
subsequent instructions for routing the connecting cables.
4*&.&/4
4*&.&/4 4*&.&/4
4*&.&/4
4*&.&/4
4*&.&/4

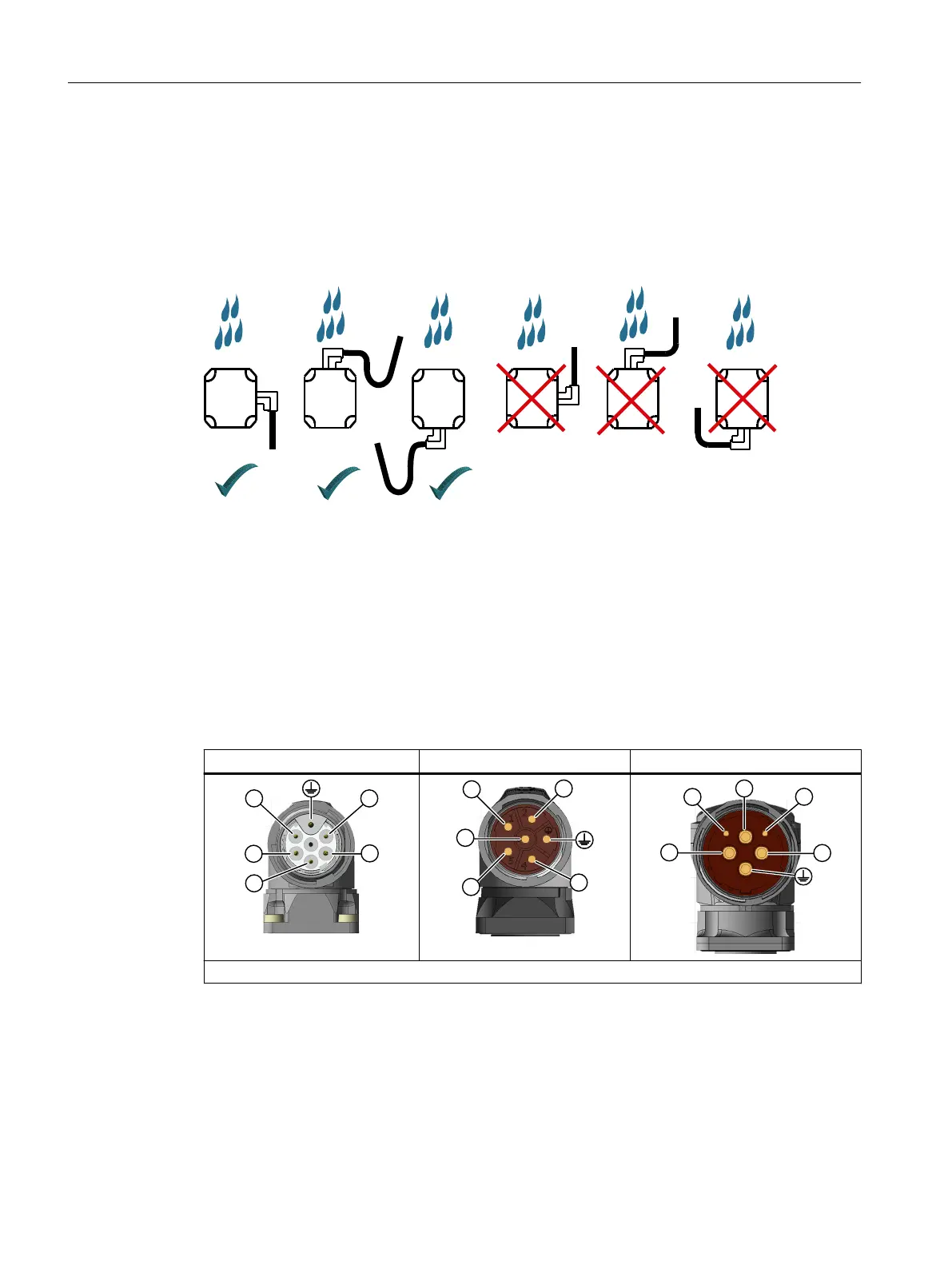

Figure7-1 Permissible and impermissible cable routing when connecting in a damp environment
7.3.2 Line connection
Power connector versions
The 1F☐2 is equipped with the following power connectors depending on the frame size and
performance level.
Round connector M17 Round connector M23 Round connector M40
8
6
7


7


8
6
7


8
6
Brake connection 24V: "+" = BD1+; "-" = BD2-
The power connectors can be rotated within a certain range.
More precise information about the equipping of the motors and the angles of rotation is
provided in Chapter "Rotating the connector on the motor (Page80)".
Connecting
7.3System integration
SIMOTICS S-1FT2 synchronous motors for SINAMICS S120
84 Operating Instructions, 12/2023, A5E50610821B AF
