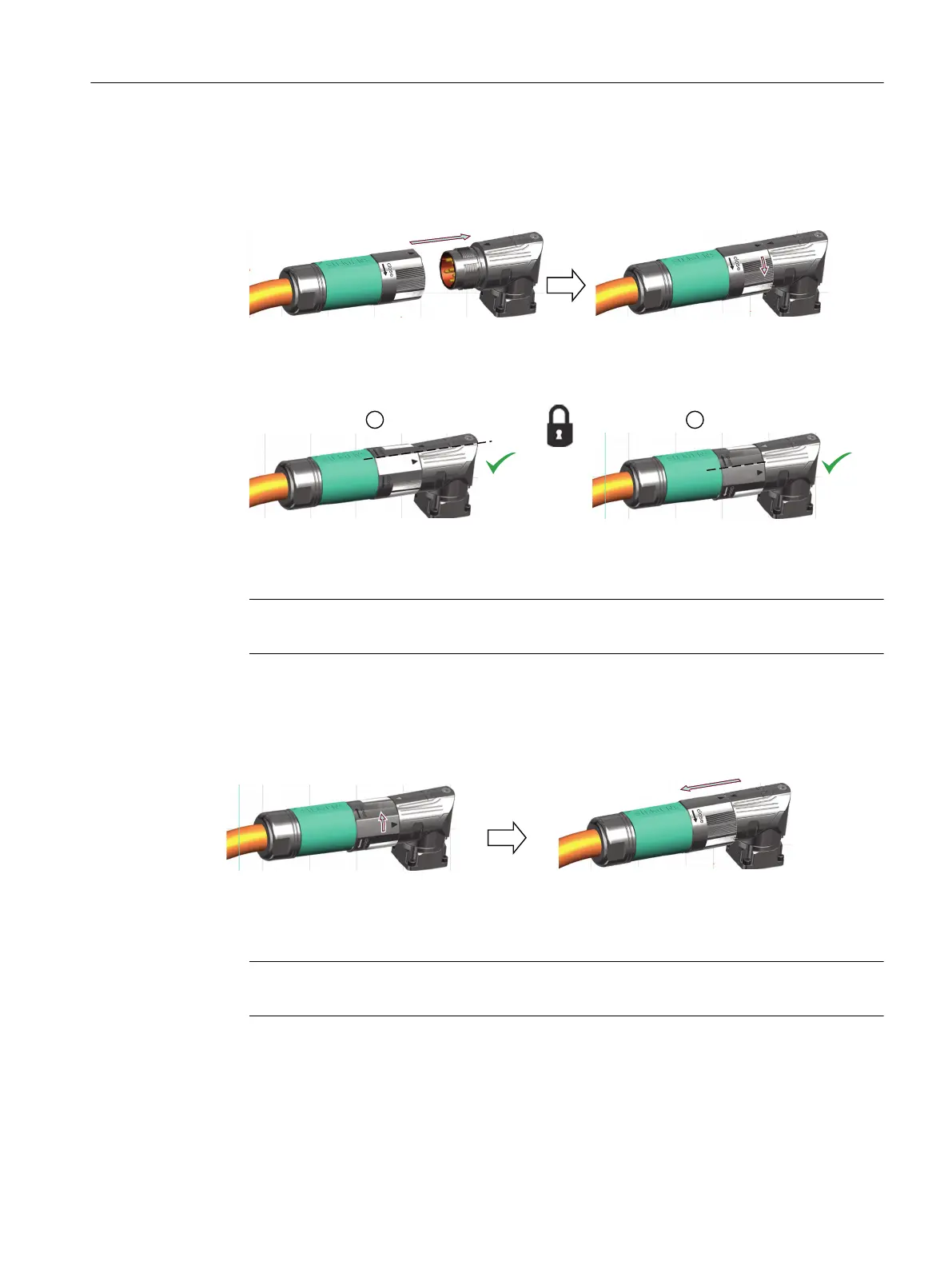

1. Ensure that the union nut of the SPEED-CONNECT connector is rotated to the end stop in the
direction of the "open" arrow.
2. Align the SPEED-CONNECT connector so that the triangles on the top of the connectors are
opposite one another.
࣪p
3. Push the power connector onto the motor connecting socket as far as it will go.
4. Turn the union nut by hand in the direction of "close" by at least 45° (position A) or up to the
end stop (position B)
"#
NJO
NBY
A Minimum locking
B Maximum locking up to the end stop
Note
A secure connection is only guaranteed from position A onward.
Releasing a SPEED-CONNECT connection
Procedure
1. Turn the union nut of the SPEED-CONNECT connector in the direction of "open" to the end
stop. The triangles on the top of the connectors must be opposite one another.
2. Withdraw the connector.
Note
Pull out the connector at the connector itself, do not pull on the cable.
Connecting
7.3System integration
SIMOTICS S-1FT2 synchronous motors for SINAMICS S120
Operating Instructions, 12/2023, A5E50610821B AF 83
