06.2006 Installation
Siemens AG 6SE7087-6KP50
SIMOVERT MASTERDRIVES Operating Instructions 5-3
The unit is mounted directly to a mounting surface. Fixing is by means
of two or four M5 screws.
22.5 mm
220 mm
360 mm
414 mm
45 mm
260 mm
33.75 mm
67.5 mm
45 mm
90 mm
0.55 kW 1.5 / 2.2 kW 4.0 kW
Mounting surface
Slots
for screws M5
Side view Front view (without front cover)
425 mm

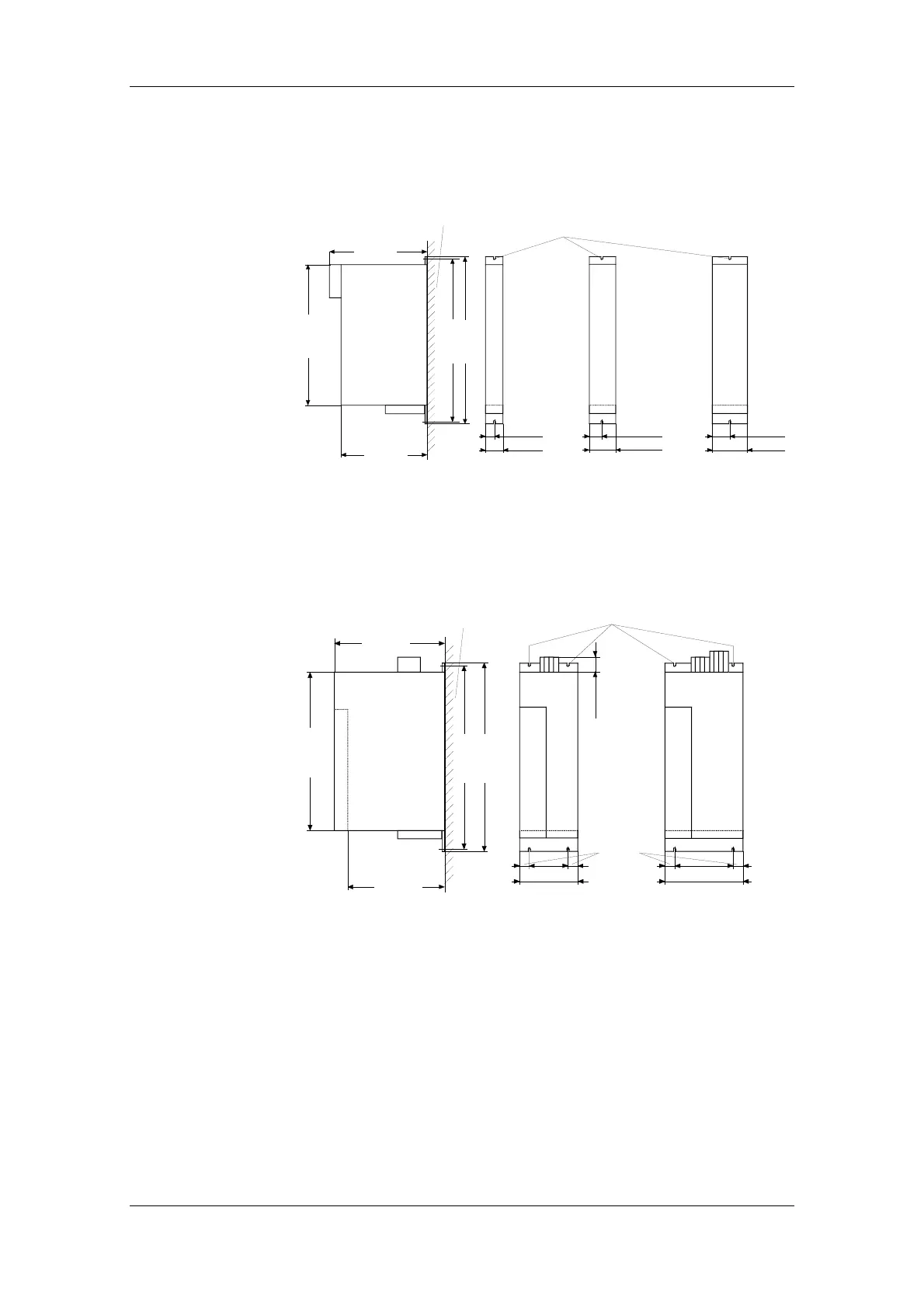

Fig. 5-2 Dimension drawings for housings up to 90 mm wide
22.5 mm
220 mm
360 mm
414 mm
135 mm
260 mm
5.5 / 7.5 / 11 kW
180 mm
15 - 37 kW
Side view Front view
Mounting surface
Cutouts
for M5 screws
425 mm
25 mm
Fig. 5-3 Dimension drawings for housings 135 mm and 180 mm wide
