Siemens SINAMICS DCM User Manual

Connection circuit diagrams for the switching devices
Application document for functional safety STO, SS1 (ISO 13849-1)
76 Compact User Manual, 09/2016, A5E34871844AM

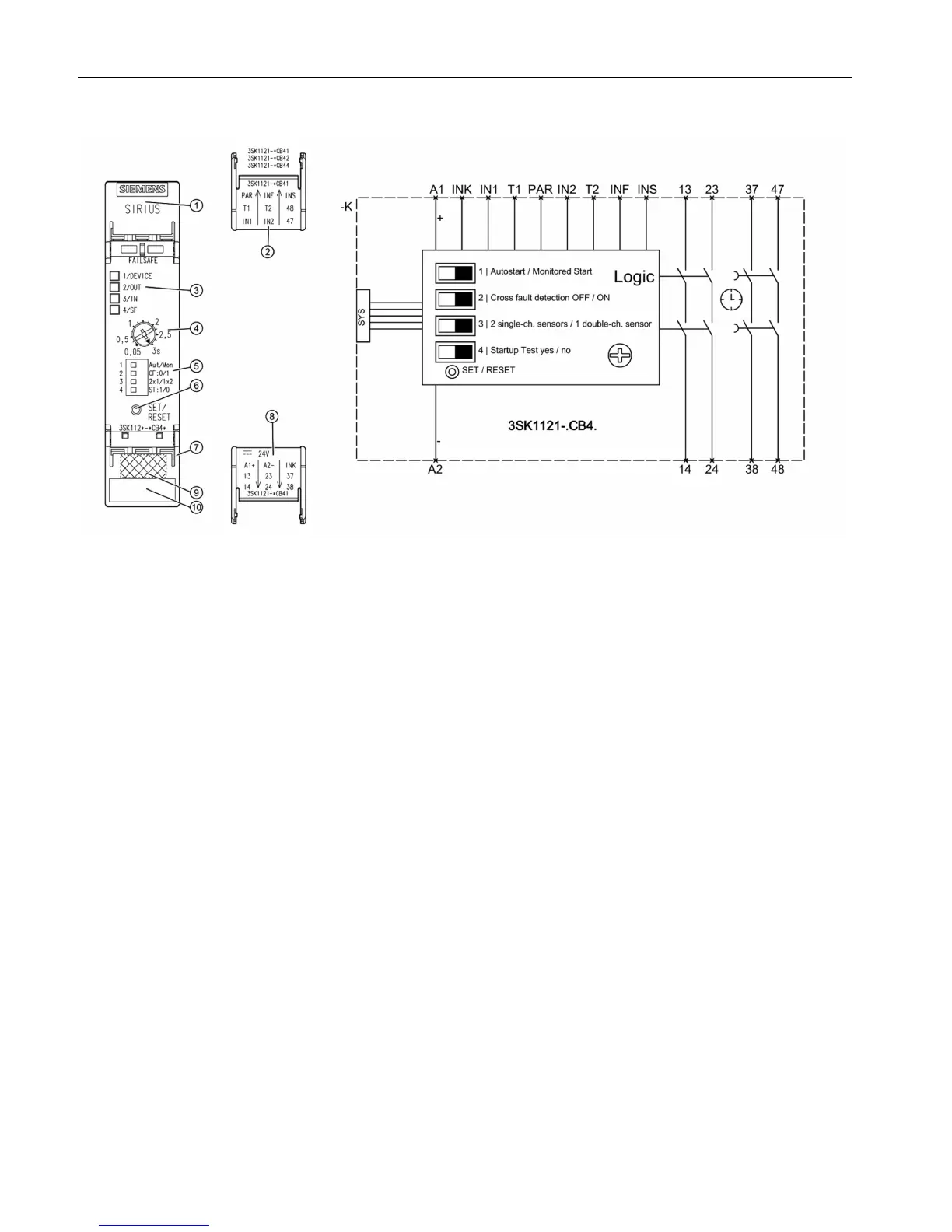

3SK1121-2CB4x basic device advanced
① Top cover
② Top cover; inner labeling
③ LEDs
④ Sets the delay time
⑤ DIP switch
⑥ SET/reset button
⑦ Bottom cover
⑧ Bottom cover; inner labeling
➈ Data matrix code
➉ Device identification label
