Installing
3.2 Installing Control Unit
Converter with Control Units CU230P-2; CU240B-2; CU240E-2
26 Getting Started, 11/2013, A5E32885834B AA
3.2
Installing Control Unit
3.2.1
CU230P-2 control unit
3.2.1.1
Interfaces of the CU230P-2

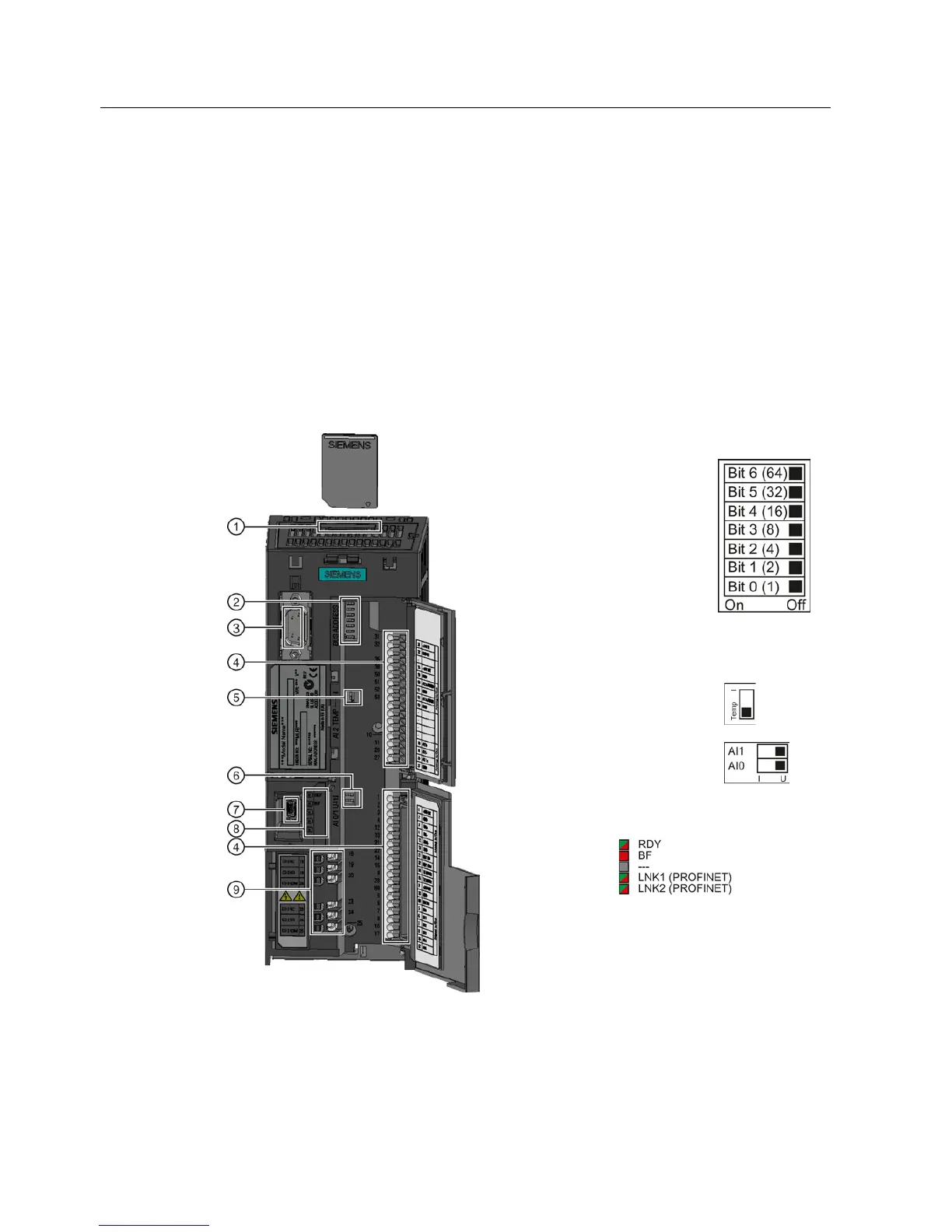

Interfaces at the front of the Control Unit
To access the interfaces at the front of the Control Unit, you must lift the Operator Panel (if
one is being used) and open the front doors.
①
Memory card slot
②
Select the
fieldbus address:
•
CU230P-2 DP
•
CU230P-2 CAN
•
CU230P-2 HVAC
•
CU230P-2 BT
③
Connection to the Operator Panel
④
Terminal strips
⑤
Switch for AI2
(current/temperature)
⑥
Swi
tch for AI0 and AI1 (U/I)
•
I 0/4 mA … 20 mA
•
U -10/0 V … 10 V
⑦
USB interface for connection to a PC
⑧
Status LED
⑨
Terminal strips for the digital outputs
